Danfoss VLT FC 102 Installation Manual page 85

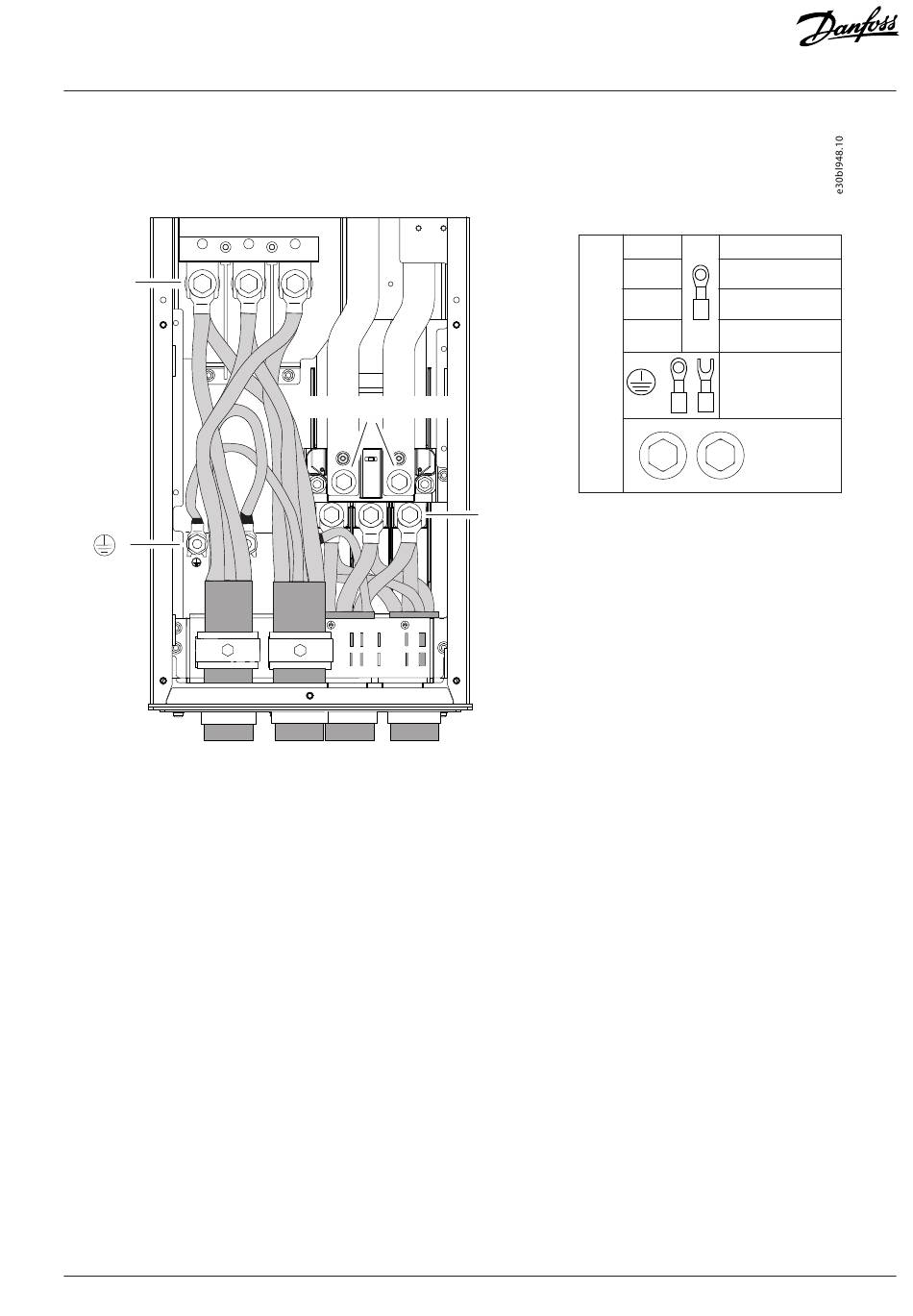

VLT® Frequency Converters, 90–400 kW
D6h
L1, L2, L3
Danfoss A/S © 2024.06
+R, –R / +Regen, –Regen
L1, L2, L3
D6h
U, V, W
+R
–R
+Regen
–Regen
17
mm
U, V, W
AN41701949085202-000201 / 130R1276 |
M10 [19 Nm (168 in-lb)]
M10 [19 Nm (168 in-lb)]
M10 [19 Nm (168 in-lb)]
M10 [19 Nm (168 in-lb)]
M8 [9.6 Nm (84 in-lb)]
13
mm
85
