Danfoss VLT FC 102 Installation Manual page 82

VLT® Frequency Converters, 90–400 kW
D3h

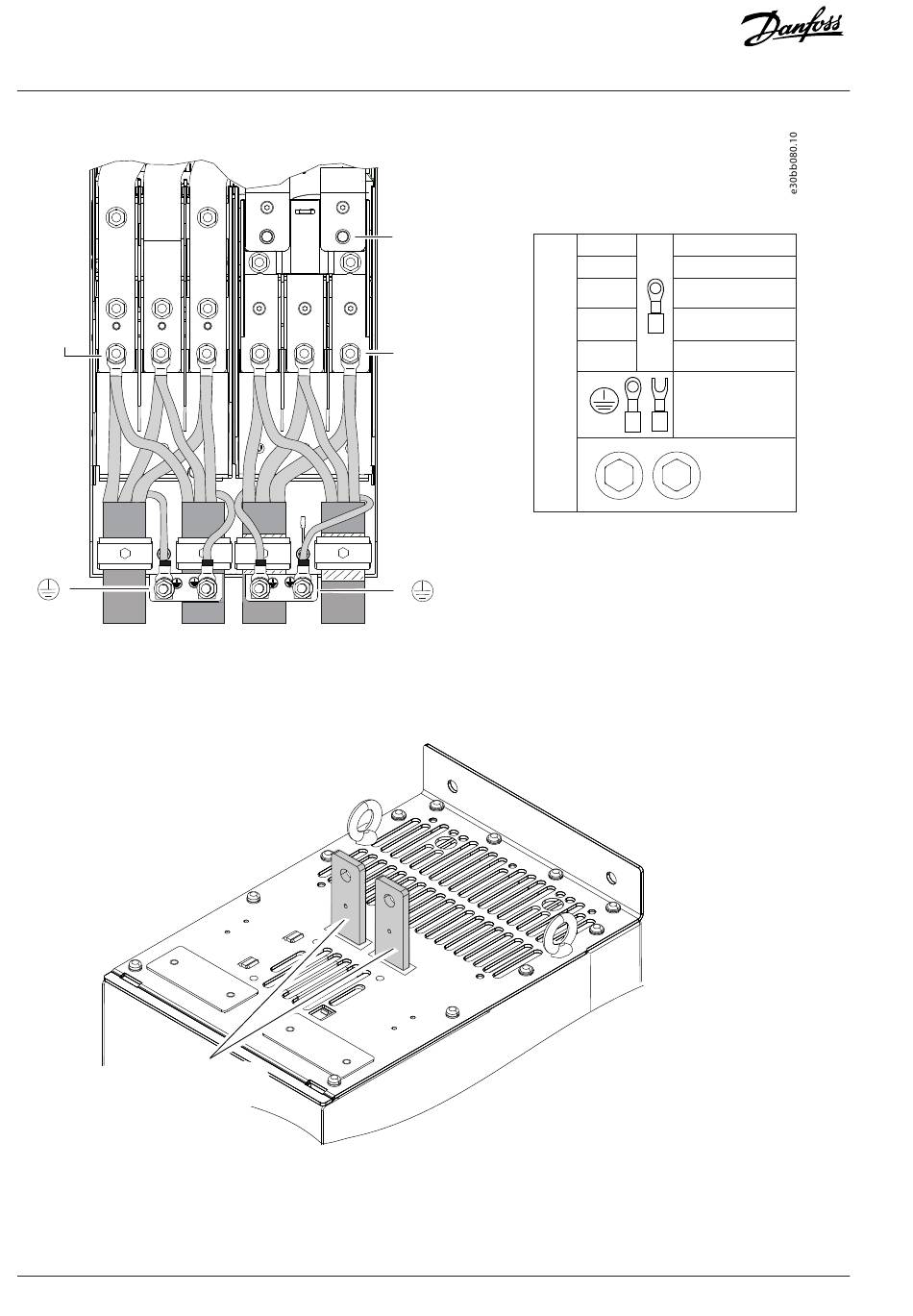

L1, L2, L3
+DC, –DC / +Regen, –Regen
82 | Danfoss A/S © 2024.06
+R, –R
D3h
U, V, W
L1, L2, L3 M10 [19 Nm (168 in-lb)]
U, V, W M10 [19 Nm (168 in-lb)]
+R
M10 [19 Nm (168 in-lb)]
–R
+Regen
M10 [19 Nm (168 in-lb)]
–Regen
+DC
M10 [19 Nm (168 in-lb)]
–DC
M8 [9.6 Nm (84 in-lb)]
13
17
mm mm
AN41701949085202-000201 / 130R1276
