link. The Move and Jogging parameters described previously are good examples of
settings that can be altered and then persisted in the driver for use in absence of a
PC. To save the settings to hardware, check the 'Persist Settings to Hardware'
checkbox before clicking the 'OK button.
The 'Persist Settings' functionality is provided to simplify use of the unit
in the absence of a PC. When the unit is connected to a PC and is
operated via APTUser, the default APTServer settings will be loaded at
boot up, even if the 'Persist Settings' option has been checked.
6.3.2 Pot/Buttons Tab
Button Control Settings
The buttons on the front of the unit can be used either to jog the motor, or to perform
moves to absolute positions.
Button Mode: This setting determines the type of move performed when the front
panel buttons are pressed.
Jogging: Once set to this mode, the move parameters for the buttons are taken
from the 'Jog' parameters on the 'Move/Jogs' settings tab.
Go to Position: In this mode, each button can be programmed with a different
position value, such that the controller will move the motor to that position when
the specific button is pressed.
32

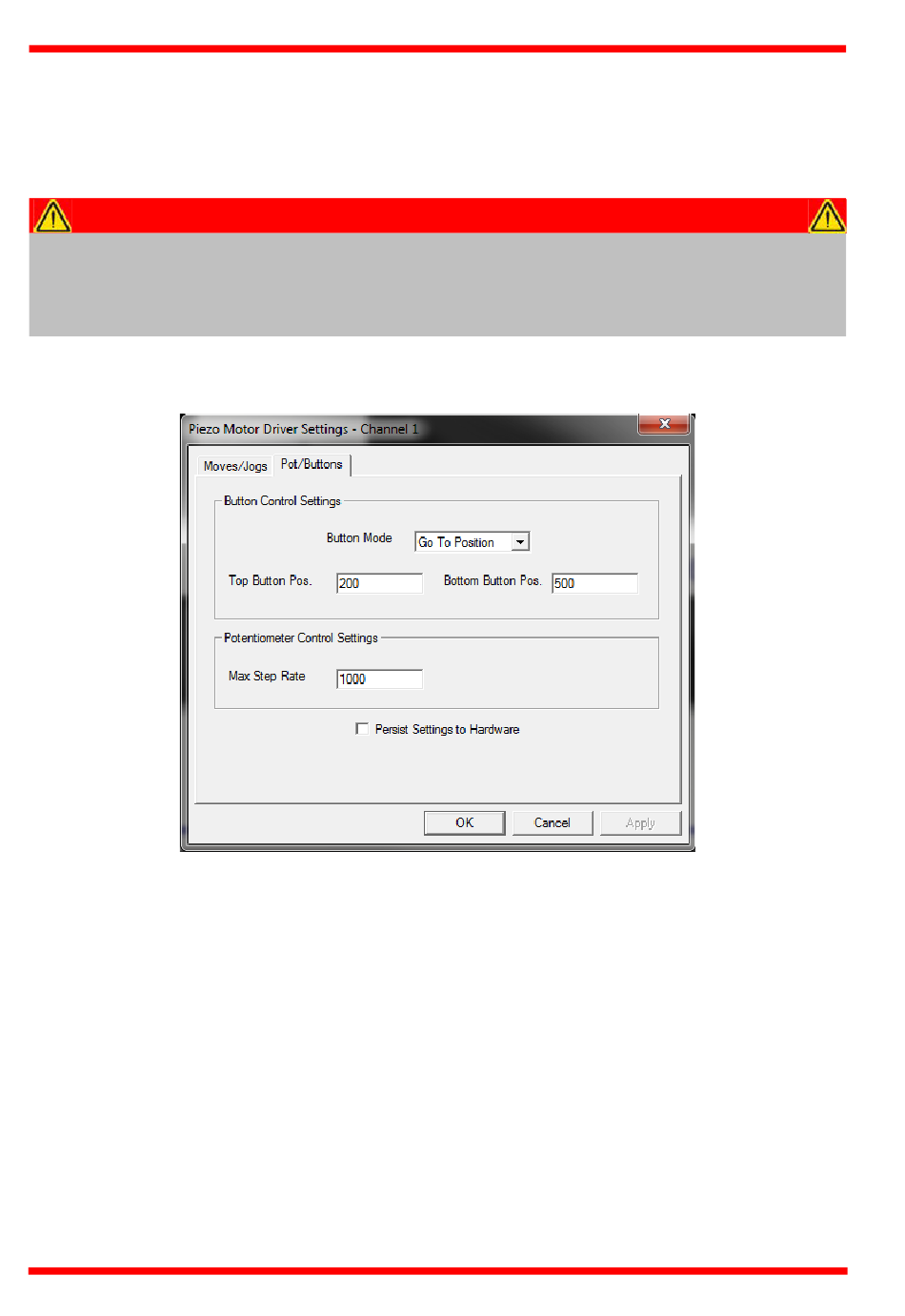

Fig. 6.4 Piezo Motor Driver T-Cube - Pot/Button Settings
Caution
