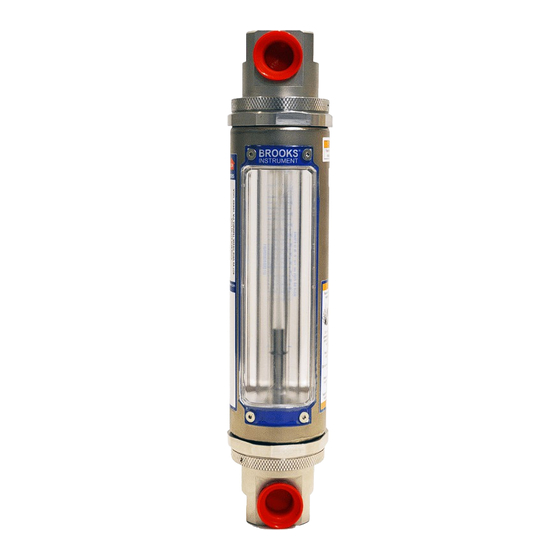

Industrial glass tube variable area flow meter
Hide thumbs Also See for GT1600:
Table of Contents

Advertisement

Quick Links

Download this manual
Installation and Operation Manual
GT1600 Industrial Glass Tube
Variable Area Flow Meter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT1600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Brooks GT1600

Summary of Contents for Brooks GT1600

  • Page 1 Installation and Operation Manual GT1600 Industrial Glass Tube Variable Area Flow Meter...

  • Page 2: Essential Instructions

    Read before proceeding! Brooks Instrument designs, manufactures and tests its products to meet many national and international standards. These products must be properly installed, operated and maintained to ensure they continue to operate within their normal specifications. The following instructions must be adhered to and integrated into your safety program when installing, operating and maintaining Brooks Instrument products.

  • Page 3: Explosion Hazard

    Read and understand instruction manual. Failure to comply could result in serious personal injury or property damage. Brooks Instrument Serial Number Format(s) Format 1 - All devices will transition to this format EXAMPLE: 01B20080023 EXAMPLE: 01 B 2 0 08 0023 01 - Organization B - Decade (A: 2000 - 2009, B: 2010-2019, ect.)

  • Page 4: Table Of Contents

    Installation ............................... 23 Section 3 Operation Pre-Operational Check ............................ 24 Operating Instructions ............................. 24 Section 4 Maintenance Overview ................................. 26 Cleaning ................................27 Section 5 Parts Assembly General ................................28 Warranty, Local Sales/Service Contact Information ................Back Cover Instruction Manual GT1600 Series...
  • Page 5 Contents Figures Figure Number Principle of Operation ..........................6 Cross-Section - GT1600 Flow Tubes with Rib Guides ................6 1-3 GT1600 Floats (Descriptions refer to floats used in the same size tube) ..........7 Dimensions - GT1600 Series ........................ 10 Reed Switch Alarm UL Installation ......................18 1-6 Bistable Inductive Switches for GT1600 Sizes 2 - 6 ................20 1-7 Dimensions and Specifications, Intrinsically Safe Switch Isolators ............

  • Page 6: Section 1 Introduction

    Refer to Figure 1-1. As the float moves up and down within the tapered tube, the annular area between the float and tube varies (area increases as the float rises). This gives the generic name of "variable area meter" for this measurement principle. As the flow varies, the float will move within the tube until it reaches an equilibrium position, where the tube taper creates an appropriate annular area to balance the forces of gravity and the fluids acting on the float. Refer to Figure 1-2. Figure 1-1 Principle of Operation Figure 1-2 Cross-Section - GT1600 Flow Tubes with Rib Guides Instruction Manual GT1600 Series...

  • Page 7: Specifications

    Brooks Instrument Section 1 Introduction Figure 1-3 GT1600 Floats (Descriptions refer to floats used in the same size tube) There are four types of floats available for the GT1600 flowmeter. Refer to Figure 1-3. Guide ribs are formed into the tube to keep the float operating in the center of the tube. The guide ribs do not follow the taper of the tube. They are parallel to the tube centerline so that the proper operating clearance for the float is maintained for its entire range of travel. The increasing annular area of the tube is in the area between the ribs.
  • Page 8 Brooks Instrument Section 1 Introduction Table 1-1 Specifications - GT1600 Performance Standard: ±10%, ± 5%, ±2% Full Scale, Class 2.5 acc VDI/VDE Flow Accuracy Optional: ±1% Full Scale, Class 1.6 acc VDI/VDE ≤ 0.5% Full Scale Repeatability Capacities and Pressure Drops See Capacities Transparent scale.
  • Page 9 Brooks Instrument Section 1 Introduction Table 1-2 Capacities - GT1600 Full Scale - Water Full Scale - Air Pressure Pressure Tube Drop inch Drop inch Size Tube Float cc/min W.C./kPa V.I.C. cSt SLPM In/h W.C./kPa Alarm Type 316SS 0.11 0.7 / 0.17 0.11...
  • Page 10 Brooks Instrument Section 1 Introduction Figure 1-4 Dimensions - GT1600 Series (See Dimensions Tables on following pages) Front View Threaded Connection Front View Flanged Connection BACK OF PANEL (FLUSH) MOUNTING FRONT OF PANEL (WALL) MOUNTING Back of Panel (Flush) Mounting Front of Panel (Wall) Mounting (Rectangular Panel Cut-Out + 4 Mtg.
  • Page 11 Brooks Instrument Section 1 Introduction Table 1-3 Dimensions - GT1600 Dimension Orientation Meter Tube Process H(orizontal) Type Size Connection V(ertical) Notes Retro-fit Model inch inch inch inch inch inch inch inch 1020 8.59 218.3 0.63 16.0 H-IN / H-OUT 1024 9.84 250.0...
  • Page 12 Brooks Instrument Section 1 Introduction Table 1-3 Dimensions - GT1600 (continued) Dimension Orientation Meter Tube Process H(orizontal) Type Size Connection V(ertical) Notes Retro-fit Model inch inch inch inch inch inch 12.31 312.7 0.83 H-IN / H-OUT 14.50 368.2 V-IN / V-OUT...
  • Page 13 "Intrinsic Safety (ia)" FM Approvals Class I, Division 1, Group A, B, C, Class II, Division 1, Pepperl + Fuchs Control Group E, F, G, Class III, Division 1  Drawing:116-0165G Class I, Zone 0, Group IIC T6 Instruction Manual GT1600 Series...

  • Page 14: Installation Notes

    Brooks Instrument Section 1 Introduction Table 1-5 GT1600 Size 2 to 10 Non-Electrical GT1600 Meter Size 2 to 10 Application Non-Electrical Equipment for use in Hazardous location Area Classification II 2 G / II 2 D Protection Technique Constructional Safety (c) Technical Construction File 203104000-1604 (Archived at DEKRA Certification B.V.)

  • Page 15: Optional Equipment - Alarms & Valves

    Brooks Instrument Section 1 Introduction Optional Equipment - Alarms & Valves GT1600 Alarm Contacts Meter Sizes 7 to 10 The Brooks reed switch alarm is a normally open, latching switch used in conjunction with the GT1600 glass tube flow meter for signaling high and/or low flow or a deviation from a flow setting. A magnet embedded and sealed in the float actuates the alarm switch. The reed switch is mounted adjacent to the flow tube and is easily adjustable over the entire flow range of the instrument. The sealed reed switch consists of a biasing magnet and hermetically sealed reed switch, which is insulated to prevent damage from mild shock and normal pipe vibration. The contact rating of the switch is very low (0.5A). An external relay is recommended for secure operation. Plus the external relay can be configured to operate as a normally open or normally closed state which provides totally flexibility of operation. Alarm Specifications: Operating Fluid Temperature Limits Reed Switch: Same as meter Inductive: 185°F (85°C) max. Reed Switch Limits - Non-hazardous Locations...
  • Page 16 The cable of the reed switch shall be protected against damage. Junction Box Version: If the M20X1.5- M to ½” NPT –F Adaptor is used it shall be protected from mechanical impact. Standard Version Junction Box Version 1 = Customer connection 2 = Potential Free (2 wires for each reed switch) 3 = Connection to Customer Device Instruction Manual GT1600 Series...
  • Page 17 Since part of flowmeter enclosure is made of plastic materials, if it is mounted in group II, category 1 area, it must be installed such, that, ignition sources due to electrostatic discharge sparks are excluded. Table 1-8 GT1600 Alarm Contact (Reed Switch) Meter Size 7 to 10 - C North America GT1600 Alarm Contact (Reed Switch) Meter Size 7 to 10 - C North America Application Electrical Equipment for use in Hazardous location...
  • Page 18 Brooks Instrument Section 1 Introduction Figure 1-5 Reed Switch Alarm UL Installation Instruction Manual GT1600 Series...
  • Page 19 Active area obscured: < 1 mA Self Inductance 70 μH Self Capacitance 90 nF Max. Temperature 75°C Enclosure Type: 4 IP67 EMC Directive EN 60947-5-2 DIN EN 60947-5-6 (Namur) Operating Fluid Temperature Limits Reed Switch: Same as meter Inductive: 167°F (75°C) max. Alarm Hysteresis 8mm typical (0.32 in). Instruction Manual GT1600 Series...
  • Page 20 Brooks Instrument Section 1 Introduction Table 1-10 Alarm Contact (Bistable Inductive Switches) Meter Size 2 to 6 GT1600 Alarm Contact (Bistabble Inductive Switches) Meter Size 2 to 6 Alarm Contact (Bistable Inductive Switches) Meter Size 2 to 6 Application Electrical Equipment for use in Hazardous location...
  • Page 21 Brooks Instrument Section 1 Introduction Figure 1-7 Dimensions and Specifications, Intrinsically Safe Switch Isolators Instruction Manual GT1600 Series...

  • Page 22: Section 2 Installation

    Receipt of Equipment When the equipment is received, the outside packing case should be checked for damage incurred during shipment. If the packing case is damaged, the local carrier should be notified at once regarding his liability. A report should be submitted to the nearest Brooks Instrument location listed on the Global Service Network page on our website: BrooksInstrument.com/GlobalSupportCenters Remove the envelope containing the packing list. Carefully remove the instrument from the packing case. Make sure spare parts are not discarded with the packing materials.

  • Page 23: Transit Precautions

    HORIZONTAL VERTICAL LINE LINE FLOWMETER FLOWMETER A - Inlet Valve B - Outlet Valve C - Bypass Valve D - Control Valve E - Drain Valve Figure 2-1 Typical Flowmeter Piping Configuration Instruction Manual GT1600 Series...

  • Page 24: Section 3 Operation

    Pre-Operational Check Prior to initial start-up and each time the flowmeter is reassembled, the scale alignment should be checked. If the reference line on the tube is aligned with the reference line on the scale, the flowmeter is ready for operation. If the reference lines are not aligned, loosen the screws securing the scale and move it until the marks are in alignment. Then tighten the screws. Operating Instructions After the flowmeter has been properly installed in the process, it is ready for operation. When initiating flow, slowly open the valve to avoid a flow surge. Bypass is a help in bringing the flow on smoothly. Avoid starting a pump to supply the flowmeter without the use of a valve upstream of the flowmeter. Instruction Manual GT1600 Series...
  • Page 25 Figure 3-1 Typical Flowmeter Piping Configuration To initiate flow through a flowmeter using bypass piping, refer to Figure 3-1. 1. Close flowmeter inlet valve (A) and outlet valve(B). 2. Fully open bypass valve (C) and slightly open control valve (D). 3. Initiate process flow. When flow has stabilized, fully open outlet valve (B), then slowly open inlet valve (A) . 4. Close bypass valve (C). 5. Regulate process flow using control valve (D). 6. If meter is left in bypass configuration, open drain valve (E) to prevent tube damage caused by thermal expansion of the process liquid. WARNING Failure to drain the flowmeter when located in a bypass loop may result in tube breakage caused by chemical expansion of the process liquid. Instruction Manual GT1600 Series...

  • Page 26: Overview

    Brooks Instrument Section 4 Maintenance Overview Instruction Manual GT1600 Series...

  • Page 27: Cleaning

    DO NOT ATTEMPT TO CLEAN IT WITH A DRY CLOTH, AS THIS MAY SCRATCH THE SURFACE. 10.Install the front window on the meter and secure with four screws tightened to 35 inch-pounds (4 Newton Meters). Instruction Manual GT1600 Series...

  • Page 28: General

    Brooks Instrument Section 5 Parts Assembly General See Figures 5-1 and 5-2, and Table 5-1 for parts assembly drawings and parts list. Ref. GT16XX001_1 Figure 5-1 GT1600, Sizes 2 - 6 Parts Assembly Drawing Instruction Manual GT1600 Series...
  • Page 29 Brooks Instrument Section 5 Parts Assembly Ref. GT16XX002_1 Figure 5-2 GT1600, Sizes 7 - 10 Parts Assembly Drawing Instruction Manual GT1600 Series...
  • Page 30 O-RING FOR SEAL SPINDLE (SZ 2-6) GLASS METERING TUBE FLOAT INLET FLOAT STOP OUTLET FLOAT STOP TUBE SEAT GASKET/PACKING CENTERING RING TUBE GASKET (SZ 2-6) SLEEVE LABEL CLEAR SCALE SCREW CENTERING RING FRONT RESERVED FOR LABEL WHITE BACKING CENTERING RING SCREW CENTERING RING BACK WINDOW ASSEMBLY SCREW WINDOW SIDE STRIP W/O ALARM (SZ 7-10) RETAINER SIDE STRIP W/O ALARM (SZ 7-10) SCREW SIDE STRIP W/O ALARM (SZ 7-10) SCREW DRAIN HOLES (TOP ONLY) ALARM SWITCH ASSY CARTRIDGE VALVE / VALVE SPINDLE ROLL PIN FOR VALVE VALVE BUSHING (SZ 2-6) O-RING TOP BUSHING (SZ 2-6) O-RING OUTSIDE BUSHING (SZ 2-6) LABEL SET FLANGE PROTECTORS / END CAPS LOCTITE FOAM FILTER CONTAINER, INNER PACKING (PACKAGING) Instruction Manual GT1600 Series...

  • Page 31: Limited Warranty

    Brooks is committed to assuring all of our customers receive the ideal flow solution for their application, along with outstanding service and support to back it up. We operate first class repair facilities located around the world to provide rapid response and support. Each location utilizes primary standard calibration equipment to ensure accuracy and reliability for repairs and recalibration. The primary standard calibration equipment to calibrate our flow products is certified by our local Weights and Measures Authorities and traceable to the relevant International Standards. Visit www.BrooksInstrument.com to locate the service location nearest to you. START-UP SERVICE AND IN-SITU CALIBRATION Brooks Instrument can provide start-up s ervice prior to operation when required. For some process applications, where ISO-9001 Quality Certification is important, it is mandatory to verify and/or (re)calibrate the products periodically. In many cases this service can be provided under in-situ conditions, and the results will be traceable to the relevant international quality standards. SEMINARS AND TRAINING Brooks Instrument can provide seminars and dedicated training to engineers, end users and maintenance persons. Please contact your nearest sales representative for more details.
