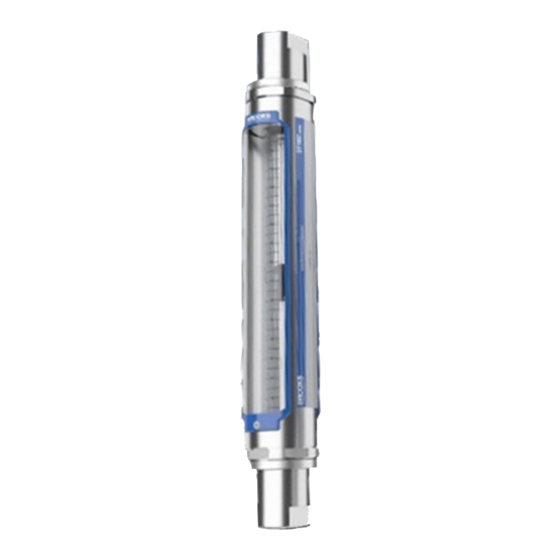

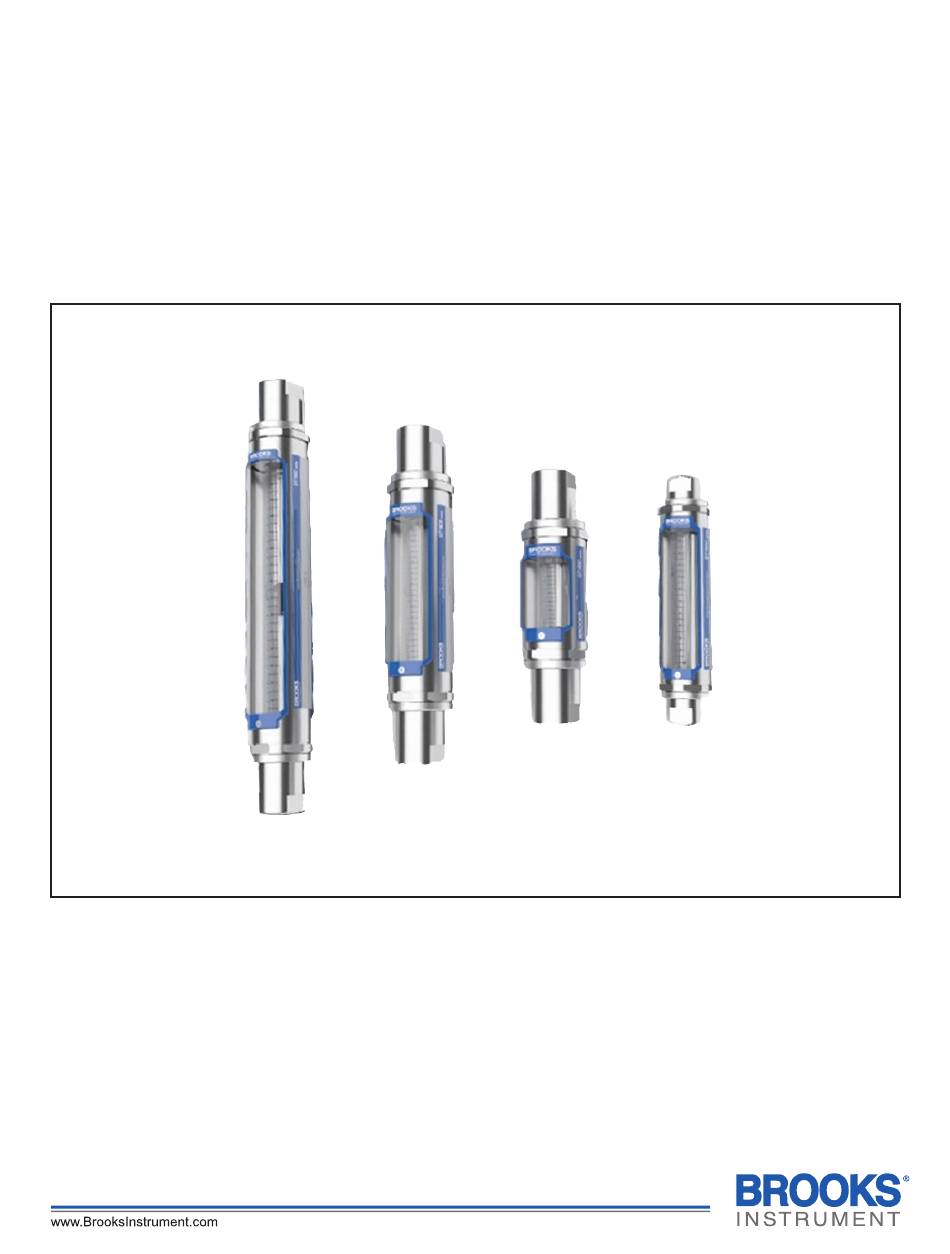

- Page 1 Installation and Operation Manual X-VA-GT1600-eng Part Number: 541B220AAG GT1600 Series April, 2020 Brooks GT1600 ® Industrial Glass Tube Variable Area Flowmeter GT1600 Series...
- Page 2 Read before proceeding! Brooks Instrument designs, manufactures and tests its products to meet many national and international standards. These products must be properly installed, operated and maintained to ensure they continue to operate within their normal specifications. The following instructions must be adhered to and integrated into your safety program when installing, operating and maintaining Brooks Instrument products.
- Page 3 Read and understand instruction manual. Failure to comply could result in serious personal injury or property damage. Brooks Instrument Serial Number Format(s) Format 1 - All devices will transition to this format EXAMPLE: 01B20080023 EXAMPLE: 01 B 2 0 08 0023 01 - Organization B - Decade (A: 2000 - 2009, B: 2010-2019, ect.)
-
Page 4: Table Of Contents
Contents Section 1 Introduction Design Features ............................... 1 Principle of Operation ............................1 Specifications ..............................2 Optional Equipment - Alarms & Valves ......................10 Section 2 Installation General ................................17 Receipt of Equipment ............................17 Recommended Storage Practice ........................17 Return Shipment ............................. - Page 5 Principle of Operation ..........................1 Cross-Section - GT1600 Flow Tubes with Rib Guides ................1 1-3 GT1600 Floats (Descriptions refer to floats used in the same size tube)) ..........2 Dimensions - GT1600 Series ......................... 5 Reed Switch Alarm UL Installation ......................13 1-6 Bistable Inductive Switches for GT1600 Sizes 2 - 6 ................15 1-7 Dimensions and Specifications, Intrinsically Safe Switch Isolators ............16 2-1 Typical Flowmeter Piping Configuration ....................
-
Page 6: Design Features
Section 1 Design Features • Configurable to retro-fit GT10xx, GT130x and Full-View • 360 degrees rotatable viewing angle • High quality materials for safety, in- and outdoor durability • 316 stainless steel frame • Polycarbonate safety shield • 316/316L dual certified stainless steel process fittings • Alarms for high- and low flow (optional for all flow ranges, either at time of order, or as add-on in the field) • Flanged or threaded connections, available horizontal and vertical • Panel- and wall mount options • Easy in-situ maintenance: Clean or replace tube and float without removal from the process piping •... -
Page 7: Specifications
Section 1 Figure 1-3 GT1600 Floats (Descriptions refer to floats used in the same size tube) There are four types of floats available for the GT1600 flowmeter. Refer to Figure 1-3. Guide ribs are formed into the tube to keep the float operating in the center of the tube. The guide ribs do not follow the taper of the tube. They are parallel to the tube centerline so that the proper operating clearance for the float is maintained for its entire range of travel. The increasing annular area of the tube is in the area between the ribs. Refer to Figure 1-2. - Page 8 Section 1 Table 1-1 Specifications - GT1600 Flow Accuracy Standard: ±10%, ± 5%, ±2% Full Scale, Class 2.5 acc VDI/VDE Optional: ±1% Full Scale, Class 1.6 acc VDI/VDE Repeatability 0.5% Full Scale Capacities and Pressure Drops See Capacities Scales Transparant scale. Adjustable Nominal Lengths: 75mm, 127mm and 250mm Choice of direct reading units, millimeter or percentage of maximum flow with factor tag.
- Page 9 Section 1 Table 1-2 Capacities - GT1600 Full scale water Full scale air Tube Float Alarm type cc/min ln/h Meter type SLPM 127 Low Flow Size 02 R 2 127 AAAAT 316SS 0.11 0.11 R 2 127 AAAAT CARBOLOY 0.22 R 2 127 AAT CARBOLOY 0.45...
- Page 10 Section 1 Figure 1-4 Dimensions - GT1600 Series (See Dimensions Tables on following pages)
- Page 11 Section 1 Table 1-3 Dimensions - GT1600 Dimension Tube Process H(orizontal) Meter type size V(er al Notes etro-fit Model inch inch inch inch inch inch inch inch 127-Low Flow NPT- H-IN / H-OUT Standard T1000 1020 8.59 218.3 0.59 15.0 V-IN / V-OUT 1024 9.84...
- Page 12 Secion 1 Table 1-3 Dimensions - GT1600 (continued)
- Page 13 Section 1 Table 1-4 Approvals Product Approvals Overview Meter Options Declarations Mark Standards/Directives/Marking Status/Certificate EU Declaration of EMC Directive (2014/30/EU) Declaration Conformity RoHS Directive (2011/65/EU) Declaration Pressure Equipment Directive (2014/68/EU) Declaration EMC Directive (2014/30/EU) ...
- Page 14 Section 1 Table 1-5 GT1600 Size 2 to 10 Non-Electrical GT1600 Meter Size 2 to 10 Application Non-El ectri ca l Equi pment for us e i n Ha za rdous l oca ti on Area Classification II 2 G / II 2 D Protection Technique Cons tructi ona l s a fety (c) Technical Construction File 203104000-1604 (Archi ved a t DEKRA Certi fi...
-
Page 15: Optional Equipment - Alarms & Valves
Section 1 Optional Equipment - Alarms & Valves GT1600 Alarm Contacts Meter Sizes 7 to 10 The Brooks reed switch alarm is a normally open, latching switch used in conjunction with the GT1600 glass tube flow meter for signaling high and/or low flow or a deviation from a flow setting. A magnet embedded and sealed in the float actuates the alarm switch. The reed switch is mounted adjacent to the flow tube and is easily adjustable over the entire flow range of the instrument. The sealed reed switch consists of a biasing magnet and hermetically sealed reed switch, which is insulated to prevent damage from mild shock and normal pipe vibration. The contact rating of the switch is very low (0.5A). An external relay is recommended for secure operation. Plus the external relay can be configured to operate as a normally open or normally closed state which provides totally flexibilty of operation. Alarm Specifications:... -
Page 16: Section 2 Installation
Section 1 GT1600 Alarm Contact (Reed Switch) Meter Size 7 to 10 Application El ectri ca l Equi pment for us e i n Ha za rdous l oca ti on Area Classification II 2 G/ II 2 D Protection Technique enca ps ul a ti on (m) Certificate IECEx KIWA 18.0008X a nd KIWA 18ATEX0013 X... - Page 17 Section 1 GT1600 Alarm Contact (Reed Switch) Meter Size 7 to 10 - (ATEX) Application El ectri ca l Equi pment for us e i n Ha za rdous l oca ti on Area Classification II 2 G Protection Technique Intri ns i c s a fety (The el ectri ca l equi pment opera tes a s a s i mpl e devi ce) Certificate None (Reference 60079-11, pa ra .
- Page 18 Section 1 Figure 1-5 Reed Switch Alarm UL Installation...
- Page 19 Alarm Contacts Meter Sizes 2 and 6 Inductive coils for high and/or low flow alarm may be mounted to the instrument to create a highly sensitive, stable and accurate device for signaling high or low flows or deviations from a controlled flow. The inductive alarm can only be used in combination with 316 SS or Carboloy ball floats. ® The alarm points may be adjusted over the entire flowmeter range and be set so that any two contacts may be made to operate simultaneously. For hazardous area applications Brooks can supply an approved Namur power supply amplifier/relay unit to obtain an intrinsic safe current circuit. (Please refer to Table 1-4). Table 1-9 Data 10 & 15-14-N3 Inductive Coils Power Supply 8 volt normal (max. 15>5 Vdc) Current Consumption Active area clear: > 3 mA Current Consumption Active area obscured: <...
- Page 20 Section 1 GT1600 Alarm Contact (Bistabble Inductive Switches) Meter Size 2 to 6 Application El ectri ca l Equi pment for us e i n Ha za rdous l oca ti on Area Classification FM: Cl a s s I, II, III, Di v 1, Groups A, thru G, T6 ATEX : II 2 G Protection Technique Intri ns i c s a fety...
- Page 21 Section 1 Figure 1-7 Dimensions and Specs, Intrinsically Safe Switch Isolators.
-
Page 22: General
Receipt of Equipment When the equipment is received, the outside packing case should be checked for damage incurred during shipment. If the packing case is damaged, the local carrier should be notified at once regarding his liability. A report should be submitted to the nearest Brooks Instrument location listed on the Global Service Network page on our website: BrooksInstrument.com/GlobalSupportCenters Remove the envelope containing the packing list. Carefully remove the instrument from the packing case. Make sure spare parts are not discarded with the packing materials. -
Page 23: Transit Precautions
Section 2 Transit Precautions To safeguard against damage during transit, transport the instrument to the installation site in the same container used for transportation from the factory if circumstances permit. Installation Location For proper operation of the GT1600 flowmeter it must be mounted within 6 degrees of true vertical, with the inlet connection at the bottom of the meter, and the outlet at the top. The use of a plumb-bob, level or other device to assure vertical positioning is recommended. -
Page 24: Section 3 Operation
Section 3 Pre-Operational Check Prior to initial start-up and each time the flowmeter is reassembled, the scale alignment should be checked. If the reference line on the tube is aligned with the reference line on the scale, the flowmeter is ready for operation. If the reference lines are not aligned, loosen the screws securing the scale and move it until the marks are in alignment. Then tighten the screws. Operating Instructions After the flowmeter has been properly installed in the process, it is ready for operation. When initiating flow, slowly open the valve to avoid a flow surge. - Page 25 Section 3 Dimension Tube Process H(orizontal) Meter type size V(er al Notes etro-fit Model inch inch inch inch inch inch inch inch 127-Low Flow NPT- H-IN / H-OUT Standard T1000 1020 8.59 218.3 0.59 15.0 V-IN / V-OUT 1024 9.84 250.0 dimensions H-IN / V-OUT...
-
Page 26: Overview
Section 4 Overview... -
Page 27: Cleaning
Section 4 Cleaning The following procedure may be used for cleaning the tube, float and end fittings. 1. Remove the four screws securing the front window to the meter, then remove the front shield. 2. Slide out the plastic tube retainer holding the tube in position. Do not remove the two screws securing it. 3. -
Page 28: General
Section 5 General See Figures 5-1 and 5-2, and Table 5-1 for parts assembly drawings and parts list. Ref. GT16XX001_1 Figure 5-1 GT1600, Sizes 2 - 6 Parts Assembly Drawing... - Page 29 Section 5 Ref. GT16XX002_1 Figure 5-2 GT1600, Sizes 7 - 10 Parts Assembly Drawing...
- Page 30 Section 5 Table 5-1 Parts Assembly Item Identification Item# TUBE HOUSING ASSEMBLY COUPLING NUT HOUSING IN/OUTLET TUBE-FITTING INSERT O-RING INSERT TO TUBE O-RING INSERT TO FITTING INLET END FITTINGS OUTLET END FITTINGS SEAL SPINDLE (SZ 2-6) O-RING FOR SEAL SPINDLE (SZ 2-6) GLASS METERING TUBE FLOAT INLET FLOAT STOP...
- Page 31 For some process applications, where ISO-9001 Quality Certification is important, it is mandatory to verify and/or (re)calibrate the products periodically. In many cases this service can be provided under in-situ conditions, and the results will be traceable to the relevant international quality standards. SEMINARS AND TRAINING Brooks Instrument can provide seminars and dedicated training to engineers, end users and maintenance persons. Please contact your nearest sales representative for more details. Due to Brooks Instrument's commitment to continuous improvement of our products, all specifications are subject to change without notice. TRADEMARKS Brooks and Full-View are trademarks of Brooks Instrument, LLC All other trademarks are the property of their respective owners.
