Figure 88: Air Filter Tray - Techman Robot Medium Series Hardware Installation Manual

NOTE:
The filter must be changed regularly to maintain efficiency. Please contact the Corporation to
purchase the filter if in demand.
Removal method:
Medium & Heavy Payload Series-Hardware Installation Manual TM12/14/16/20 Series Hardware Version: 3.2 Document Version: 1.01
TECHMAN ROBOT INC.
5F., No. 58-2, Huaya 2nd Rd., Guishan Dist., Taoyuan City, 333411 , Taiwan
⚫ Safety I/O
⚫ Preset operation project
⚫ TCP Settings
⚫ I/O Settings
⚫ I/O Wiring
Turn of the power and lay the control box flat.
1.
Remove the rubber edge trim and loosen the air filter screw.
2.
Pull out the air filter tray and replace the filter with a new one.
3.
screw

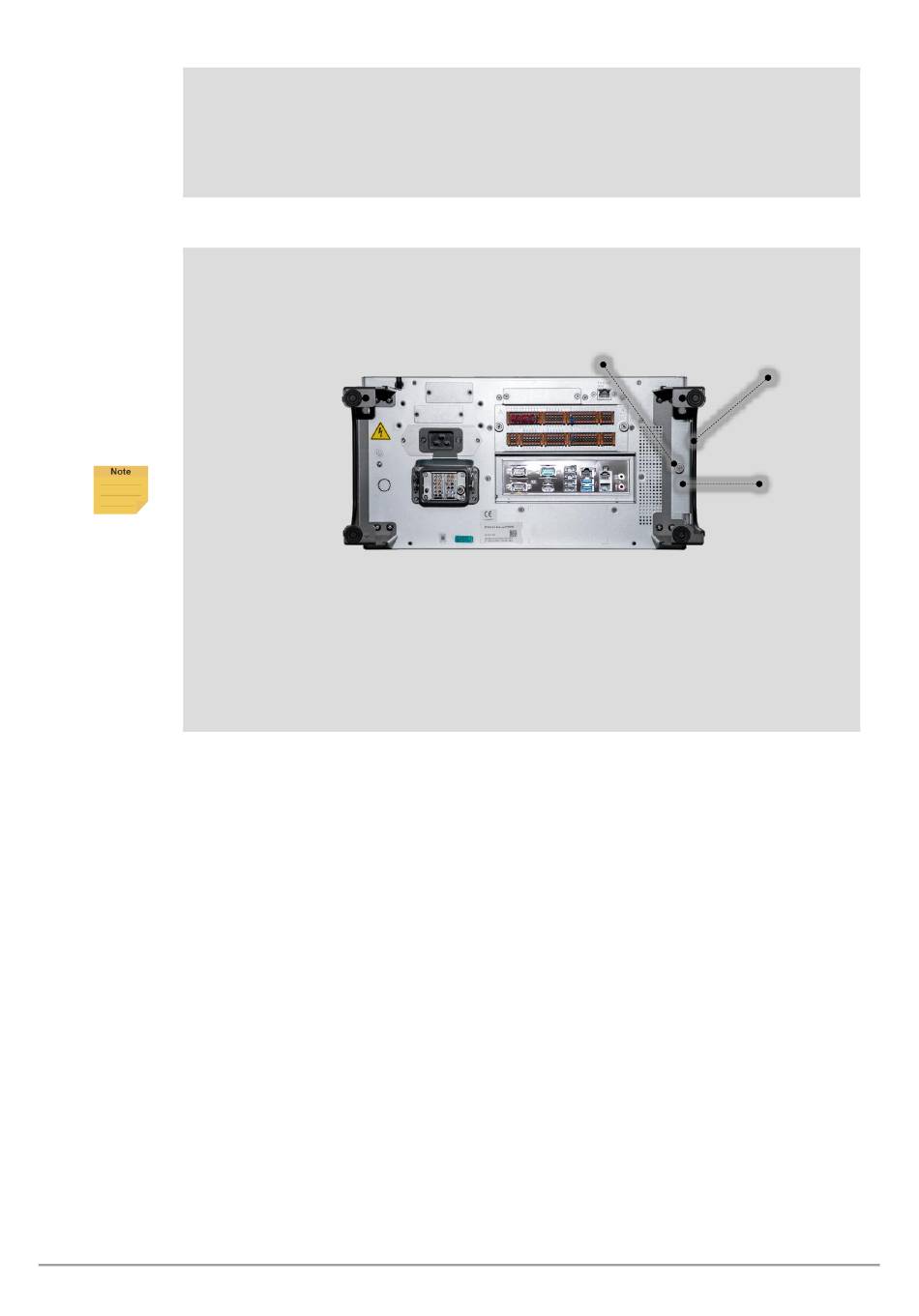

Figure 88: Air Filter Tray

rubber
edge trim
tray
90
