5. Electrical Interface

5.1 Overview

This chapter introduces all electrical interfaces of the robot arm and control box.

5.2 Electrical Warnings and Cautions

The application design and installation of the robot should comply with the following warnings.
DANGER:
1. Ensure all pieces of the equipment are kept dry. If water enters the equipment, disconnect
2. Only use the original cables included with the robot. If you need longer cables, contact
3. Ensure that the robot is properly grounded. If the grounding is not correct, it may cause a
WARNING:
The I/O cables used for the link between the control box and other pieces of equipment
should not be longer than 30 meters, unless testing shows that longer cables are feasible.

5.3 Control Box

WARNING:
Except for USB ports, other interfaces have to be installed while arm is powered off. Do not
install while arm is on to avoid abnormal shutdown.
Control Box I/O configuration
Medium & Heavy Payload Series-Hardware Installation Manual TM12/14/16/20 Series Hardware Version: 3.2 Document Version: 1.01
TECHMAN ROBOT INC.
5F., No. 58-2, Huaya 2nd Rd., Guishan Dist., Taoyuan City, 333411 , Taiwan
the power and contact your supplier.
your supplier.
fire or electric shock.

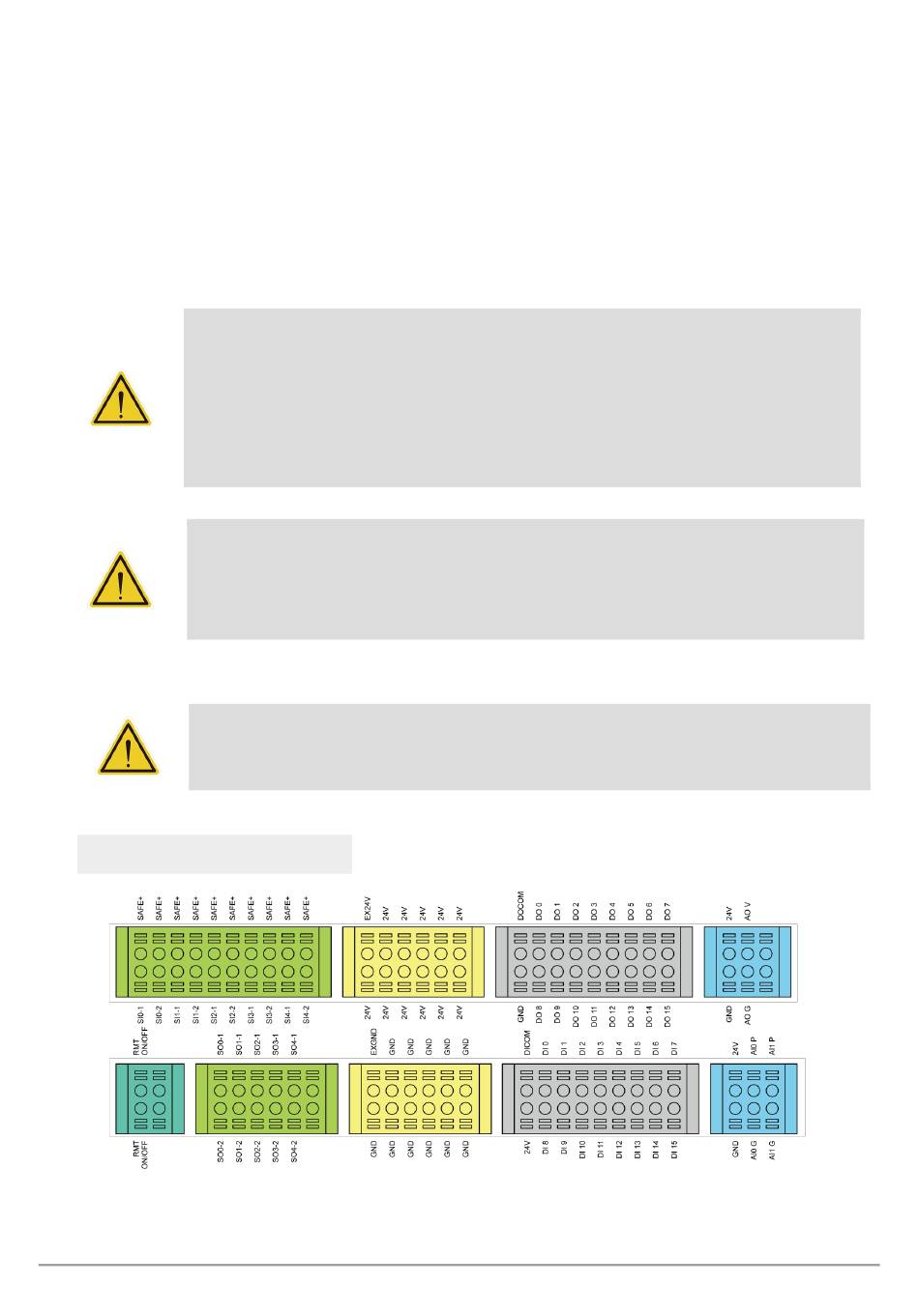

Figure 45: Control Box I/O Configuration (1/2)
