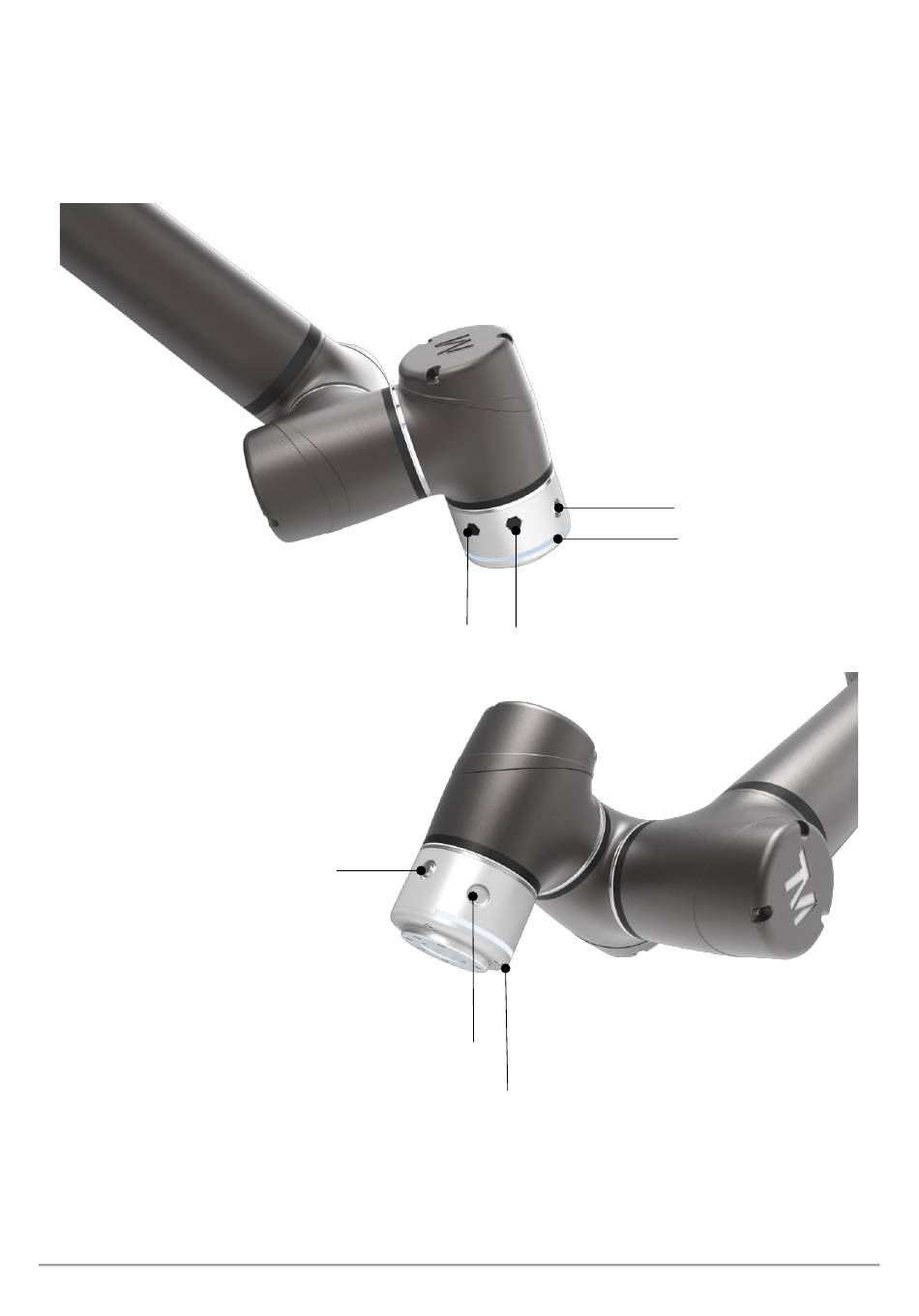

Figure 34: References Of Tm20X End Module Components - Techman Robot Medium Series Hardware Installation Manual

TM20X End Module Components
FREE Button
Indication Light Ring
Analog I/O
Digital I/O
POINT Button
GRIPPER Button
Flange (ISO 9409-1-50-4-M6)

Figure 34: References of TM20X End Module Components

Medium & Heavy Payload Series-Hardware Installation Manual TM12/14/16/20 Series Hardware Version: 3.2 Document Version: 1.01 46
