6.3 Unboxing

6.3.1 Carton Types

The TM AI Cobot product comes with 2 cartons: the robot arm carton, and the control box carton, as
shown below. Also, a SEMI Emergency OFF switch carton will comes along with the SEMI series. For
TM12 SEMI, TM14 SEMI, TM16 SEMI, or TM20 SEMI, there will be an additional carton comes with the
SEMI Emergency OFF Box. Refer below for the ratio of the cartons. The actual sizes of the cartons may
differ from measurements

Figure 79: Control Box Carton

6.3.2 Contents of Each Carton

Each carton has the following contents. Check them when you unpack the cartons for the first time. If any
item is missing, contact your vendor.
Medium & Heavy Payload Series-Hardware Installation Manual TM12/14/16/20 Series Hardware Version: 3.2 Document Version: 1.01
TECHMAN ROBOT INC.
5F., No. 58-2, Huaya 2nd Rd., Guishan Dist., Taoyuan City, 333411 , Taiwan

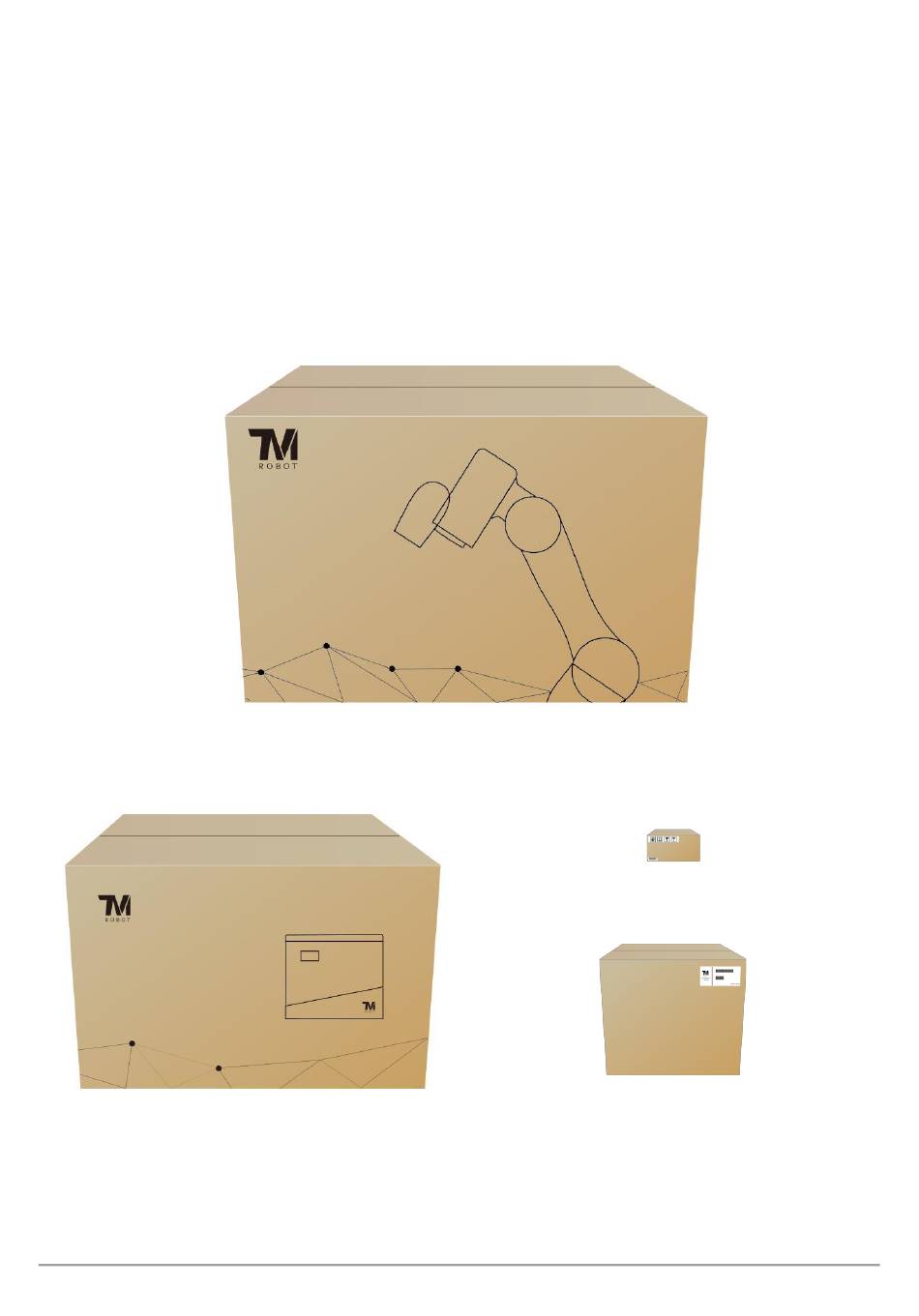

Figure 77: Robot Arm Carton

Figure 78: SEMI Emergency OFF Switch Carton

Figure 80: SEMI Emergency OFF Box Carton
