Hardware
6. Hardware
6.1. Mounting
IMPORTANT
Before mounting, please ensure that the chosen installation place preserves the gateway from direct
solar radiation, water, high relative humidity, or dust.
NOTE
Mount the gateway on a wall or over a DIN rail. We recommend the DIN rail mounting option,
preferably inside a grounded metallic industrial cabinet.
IMPORTANT
Ensure the gateway has sufficient clearances for all connections when mounted. See
(page
22).
WALL MOUNTING
IMPORTANT
For reasons of security, the maximum height for wall mounting is two meters (6.5 feet).
1.

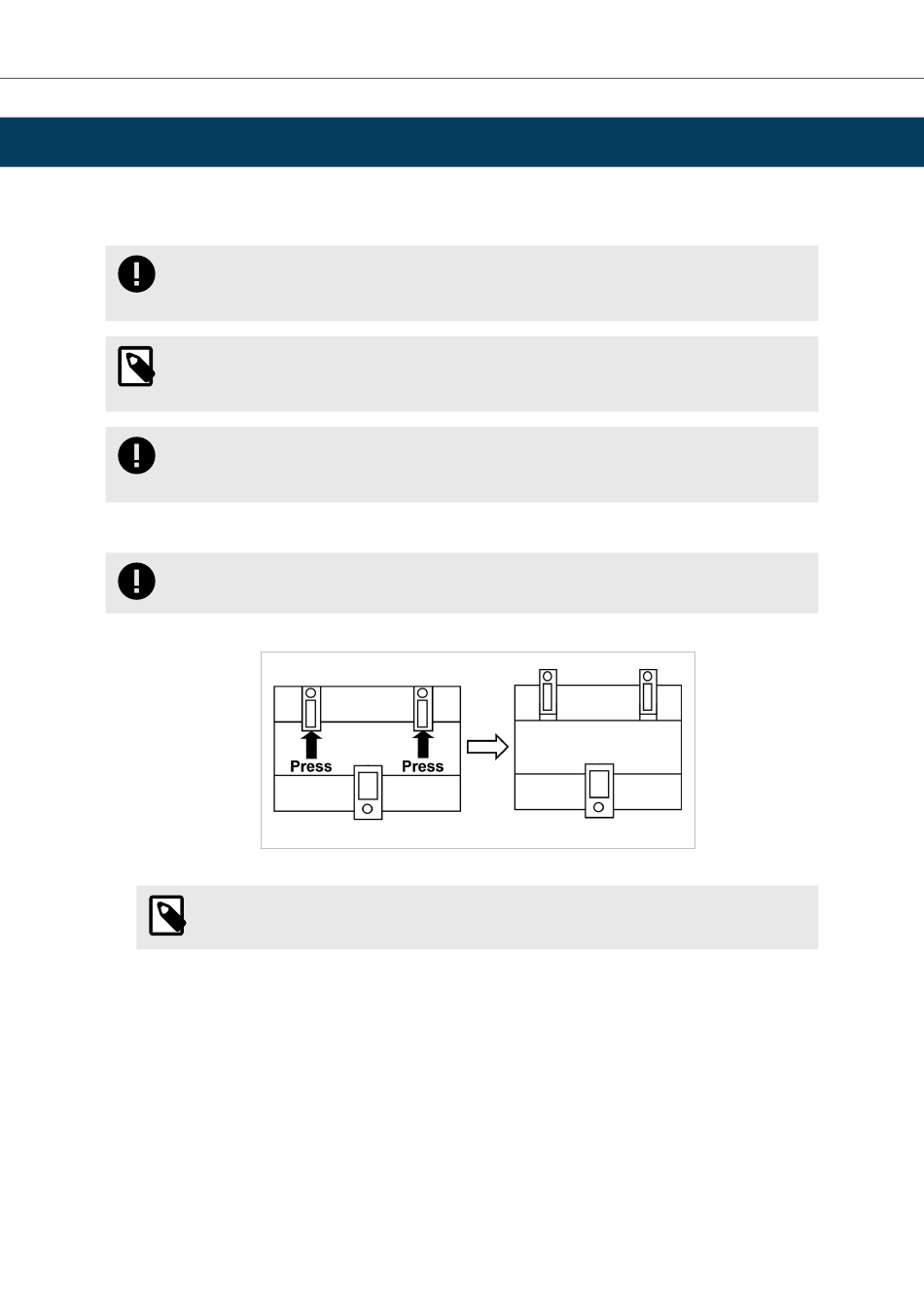

Press the top-side mobile clips in the rear panel until you hear a click.
2.
Use the clip holes to fix the gateway on the wall using screws.
NOTE
Use M3 screws, 25 mm (1") length.
3.
Make sure the gateway is firmly fixed.
USER MANUAL Version 1.2.12
700series Air Gateway - IN776MHI⁎⁎⁎O000
Dimensions
Page 9 of 37
