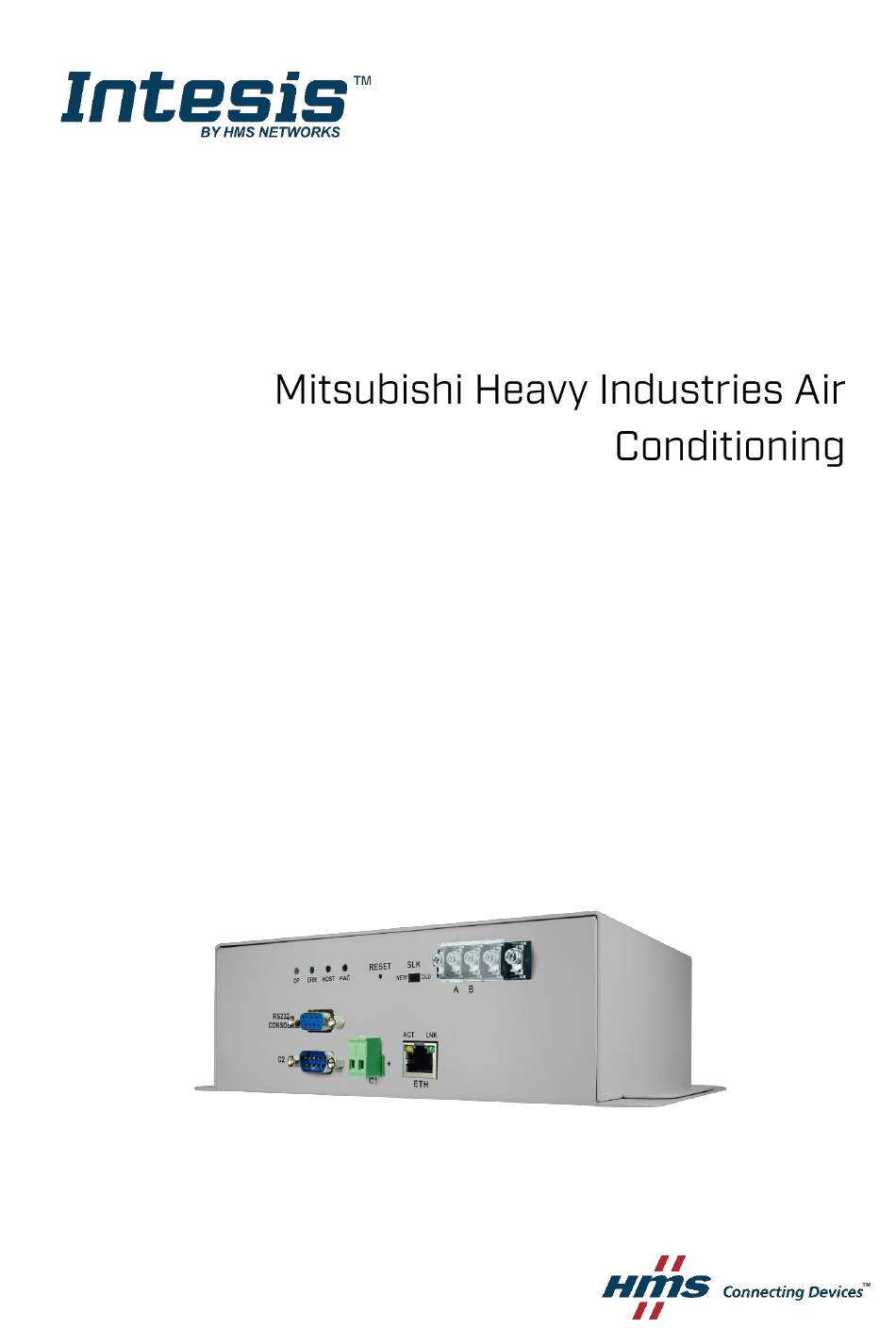

- Page 1 Gateway for integration of Mitsubishi Heavy Industries air conditioning systems into KNX TP-1 (EIB) control systems Application’s Program Version: 2.1 USER MANUAL Issue date: 07/2012 r1.2 ENGLISH...
- Page 2 KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng Important User Information Disclaimer The information in this document is for informational purposes only. Please inform HMS Industrial Networks of any inaccuracies or omissions found in this document. HMS Industrial Networks disclaims any responsibility or liability for any errors that may appear in this document.
- Page 3 KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng Gateway integration Mitsubishi Heavy Industries air conditioning systems into KNX TP-1 (EIB) control systems. ORDER CODE LEGACY ORDER CODE INKNXMHI048O000 MH-AC-KNX-48 INKNXMHI128O000 MH-AC-KNX-128 © HMS Industrial Networks S.L.U - All rights reserved https://www.intesis.com This information is subject to change without notice 3 / 26...
-
Page 4: Table Of Contents
KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng Index Description ....................... 5 Introduction ....................5 Integration signals ................... 5 Functionality ....................6 Capacity of Intesis ..................7 KNX interface of Intesis ................... 8 Description ..................... 8 Communication objects available ............... 9 2.2.1 Communication objects per each indoor unit: .......... -
Page 5: Description
KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng Description Introduction Intesis KNX – Mitsubishi Heavy Industries AC is a communication gateway for the integration of Mitsubishi Heavy Industries air conditioning (AC) systems into KNX TP-1 (EIB). This gateway allows integrating a Mitsubishi Heavy Industries AC system inside a supervision/control/automation system through PLC, SCADA and, in general, through any device or system with a KNX TP-1 (EIB) interface. -
Page 6: Functionality
KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng Functionality Intesis continuously polls (reads) the Superlink network for all configured signals and keeps the updated status of all of them in its memory ready to be served when requested from KNX. -
Page 7: Capacity Of Intesis Tm
KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng Capacity of Intesis Element Max. Notes Maximum number of AC indoor units that Number of indoor units 128 * can be controlled Maximum number communication Main Group Address 3000 objects Total number of listening group Number of KNX groups that can be used as... -
Page 8: Knx Interface Of Intesis Tm
KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng KNX interface of Intesis Description Intesis KNX - Mitsubishi Heavy Industries supports the KNX TP-1 (EIB) physical layer, as defined in the KNX standard. It behaves as another device of the KNX system, with the same configuration and functional characteristics as other KNX devices. -
Page 9: Communication Objects Available
If that’s the case, the KNX installer/integrator needs to provide the set of group addresses prior to doing the configuration of datapoints in LinkBoxEIB. Also, a dummy ETS application is provided by HMS Networks (section 5), which can be imported into ETS. This application is nor downloadable into Intesis... -
Page 10: Communication Objects Per Each Indoor Unit
KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng 2.2.1 Communication objects per each indoor unit: Signal Property EIS type type Description / Status (R/W) Communication Error Communication Status 1 – Switching (1bit) 0 – Communication OK, 1 – Communication ERROR OnOff Indoor Unit On/Off 1 –... -
Page 11: Controlling All Units At A Time
KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng Compressor Status CompressorStatus 1 – Switching (1bit) 0 – Off, 1 - On Filter Sign Reset FilterSignReset 1 – Switching (1bit) 1 – Clear Filter Alarm (When reading always 0) Remote Controller Error Reset RemoConErrorReset 1 –... -
Page 12: Intesis Tm Device Connections

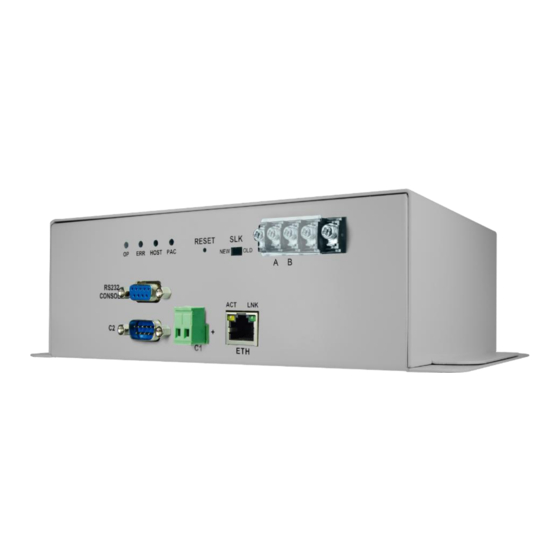

KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng Intesis KNX Device Connections Figure 3.1 Intesis KNX device front view 100-240VAC~ 50-60Hz 5W max FUSE: 250V 1.5A(T) 20x5mm Figure 3.2 Intesis KNX device back view Next, there is the list with the device physical interface connector’s description 1.- KNX configuration Port 8.- Reset button (C1) -
Page 13: Connect To Mitsubishi Heavy Industries Interface
KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng Connect to Mitsubishi Heavy Industries Interface Use the A-B connector in the right top corner of the front side of the Intesis device in order to connect the Mitsubishi Heavy Industries network (Superlink) to the Intesis Recommended specifications of the cable for the Superlink are shown as follows: •... -
Page 14: Connect To Knx Interface
KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng Connect to KNX Interface Connect + and – terminals of the KNX bus to the Intesis KNX connector (C1). The polarity is important. How to check if there is communication with the KNX bus is explained in the LinkBoxEIB Manual (section 6.3). -
Page 15: Tm Knx Series
KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng LinkBoxEIB . Configuration & monitoring tool for Intesis KNX series Introduction LinkBoxEIB is a Windows ® compatible software developed specifically to monitor and configure Intesis KNX series. The installation procedure and main functions are explained in the LinkBoxEIB User Manual. This document can be found in the Doc folder or can be downloaded from the link indicated in the installation sheet supplied with the Intesis device. - Page 16 KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng Figure 4.3 KNX interface configuration 1. Physical Address: Enter the KNX physical address for the gateway. 2. Force update after a KNX bus reset: Affects to the KNX groups with the Update feature activated (U).
- Page 17 KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng x in “Indoor Unit xxx”) is the reference that will be used later on (in tab “Signals”) to refer to this AC indoor unit. You can also change the description name of the Indoor Unit and its address to facilitate integration tasks using Add and Name text boxes.
-
Page 18: Signals
KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng Additional configuration parameters should generally be left to their default value. They only might need to be tuned in some very specific cases (installations with large number of units, scenarios with large bursts of commands sent at once …) 4.2.2 Signals Select the Signals tab to configure the signals list (the Intesis... -
Page 19: Sending The Configuration To Intesis Tm
KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng W: Indicates if this signal is allowed to be written from KNX system (“W” flag activated, “blank” flag not activated). T: Indicates if this signal will generate a telegram sending to the KNX system following a change of the signal’s value, that is to say, any change of value of this signal in MHI side will be transmitted to the KNX system if this flag is activated (“T”... -
Page 20: Files
KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng Figure 4.7 LinkBoxEIB Signals Viewer The signals viewer can be used even though only one system is connected to the Intesis KNX or Mitsubishi Heavy Industries AC. Therefore, it becomes convenient for supervision and testing the system. -
Page 21: Intesis Tm And Ets
KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng INI file containing information related with the values configured MHI.INI through the “Connection” tab in Intesis configuration. Binary file created from the information in the files described MHI.LBOX above. This is the file downloaded to the Intesis ASCII file containing the configuration of the project signals. -
Page 22: Setup Process And Troubleshooting
It is necessary to have the KNX bus operative and well connected to the KNX port of Intesis Connectors, connection cables, PC for LinkBoxEIB, and other auxiliary material, if needed, are not supplied by HMS Networks for this standard integration. Items supplied by HMS Networks for this integration are: •... -
Page 23: Software Checking
KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng 2.- Check Intesis LED status: Status Explanation Solution No power reaching the Check power connection internal device Check fuse status see part 13 in Figure 3.2 Blinking once Superlink Check Superlink cables and terminals periodically communication failure... -
Page 24: Mechanical & Electrical Characteristics
KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng Mechanical & Electrical characteristics 179 mm 65 mm 61 mm 215 mm 167 mm Figure 7.1 External dimensions – Perspective view 61 mm 65 mm 4 mm Figure 7.2 External dimensions – Front view 195 mm Ø... -
Page 25: Ac Unit Types Compatibility
KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng Industrial sheet metal. Enclosure Size: 215mm x 167mm x 61mm. Weight: 2.025 Kg Color Gray metalized. 100 to 240VAC~ 50 to 60Hz Power 5W max. Power connector: C14 (male) 250V Fuse 1.5A... -
Page 26: Error Codes
KNX – Mitsubishi Heavy Industries AC Intesis User’s Manual r1.2 eng Error codes This list contains all possible values shown in KNX communication objects for “Error Code” for each indoor unit. Error Error in Code Remote Error Description Controller No active error Remote controller communication error Duplicated indoor unit address Outdoor unit signal line error...
