Hardware

5. Hardware

5.1. Mounting

Mount the gateway inside the AC indoor unit, over a wall, or over a DIN rail.
IMPORTANT
Do not mount the gateway in air-handling units or conducts.
NOTE
DIN rail mounting inside a grounded metallic cabinet is recommended.
Mounting the gateway inside the AC indoor unit
1. Look for the proper place to mount the gateway, taking into consideration the following:
IMPORTANT
• Keep communication cables away from power and ground wires.
• Ensure the gateway does not block any mobile parts of the AC unit.
2. Place the gateway on top of a secure, plain surface.
3. Use double-sided tape to ensure a secure fixing if needed.

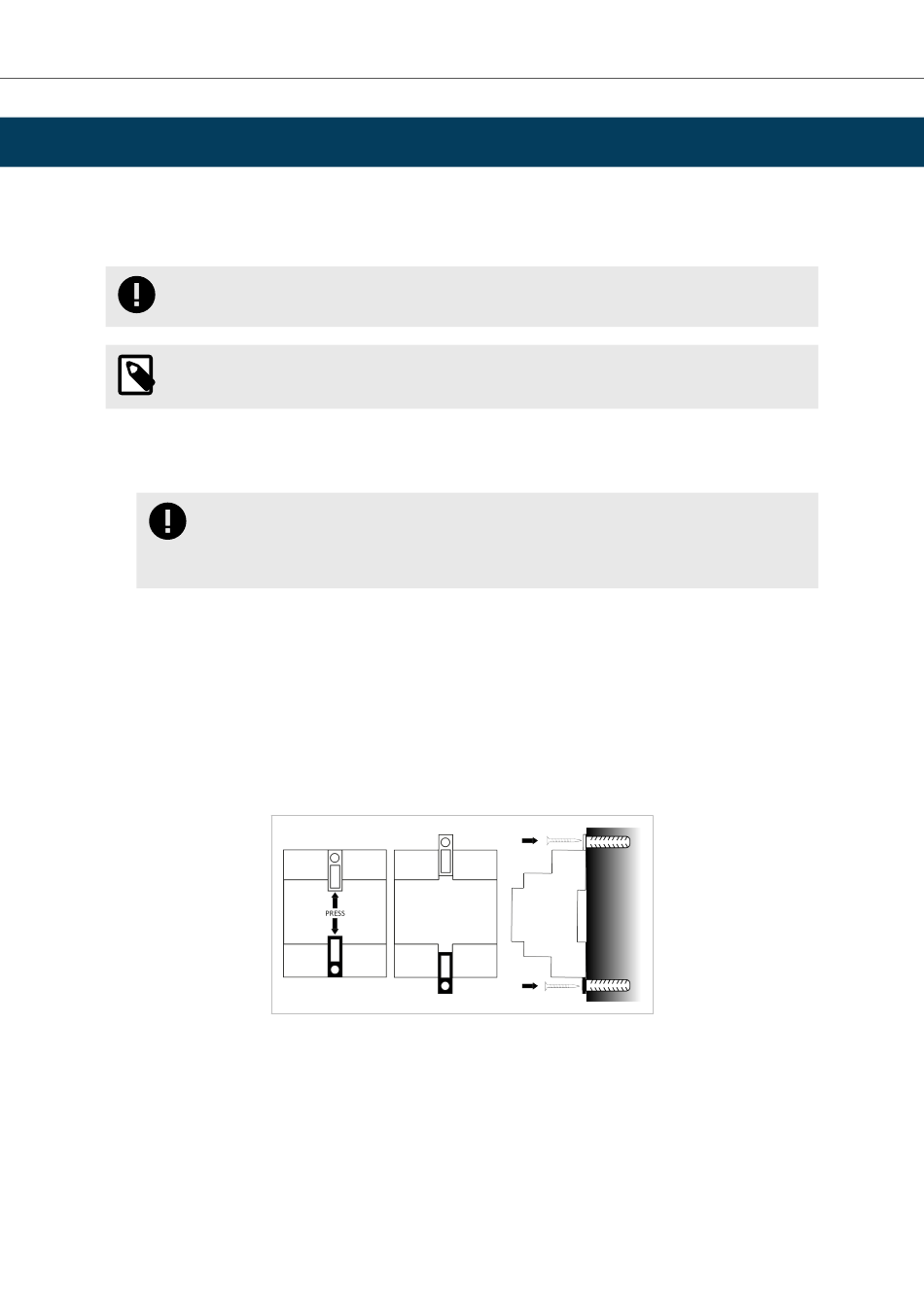

Wall mounting
1. Press the rear panel clips outwards until you hear a click.
2. Use the clip holes to screw the gateway to the wall.
3. Make sure the gateway is firmly fixed.
DIN rail mounting
Keep the clips in its original position.
1. Fit the gateway's top-side clip in the upper edge of the DIN rail.
2. Press the low side of the gateway gently to lock it in the DIN rail.
3. Make sure the gateway is firmly fixed.
