Summary of Contents for Rexing M2 MAX PRO

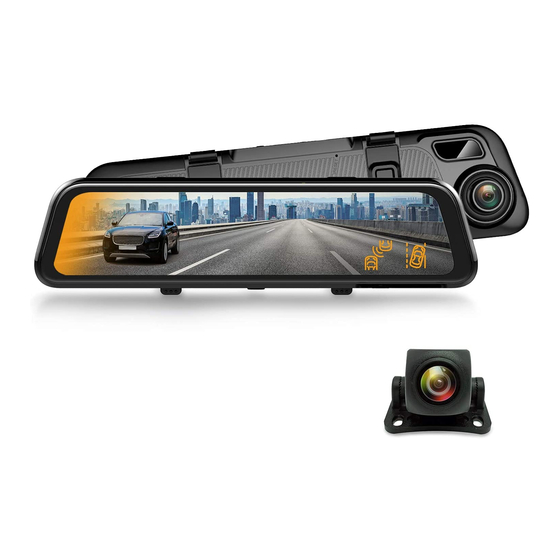

- Page 1 M2 MAX PRO Quick Start Guide The information in this manual is subject to change without notice. www.rexingusa.com www.rexingusa.com REV012024...
- Page 2 (877) 740-8004 Our support team will respond to you as soon as possible. Always a surprise with Rexing Check us out here. • https://www.facebook.com/rexingusa/ • https://www.instagram.com/rexingdashcam/ • https://www.rexingusa.com/support/registration/...
- Page 3 Activate Your 18-Month Warranty & Choose Your Free Gift! Activate within 30 days of purchase to claim your free gift and extended limited 12-month warranty to 18 months. SCAN Scan the QR to Activate & Select Your Free Gift https://www.rexingusa.com/productreg/...
- Page 4 Notice The user menu is to be set up in non-video mode. If the device is in video mode, please proceed only after stopping the video recording. Memory Card: Using a new MicroSD card always requires formatting it to your device. Regularly clear the memory card, as continuous video recording for an extended period of time may produce some protected files that are not subject to long-term protection (these files may not be overwritten during loop recording) and some storage fragments, which...
-
Page 5: What's In The Box
What’s in the box? M2 MAX PRO PROTECTED Quick Start Guide DASH CAMS The information in this manual is subject to change without notice. www.rexingusa.com www.rexingusa.com REV012024 M2 MAX PRO In-car power cable (12ft)l Rexing rear camera Cable Management Tool... -
Page 6: Camera Overview
Camera Overview Type-C Port Rearview Camera Port MicroSD Card Slot GPS Port Display/Touch Screen Front Camera Reset Key Pinhole Speaker MIC Pinhole Power Key... - Page 7 Designation Description of Functions In connection with an external power source, in the Power Button power-off state, press and hold the power button on the bottom for three seconds to start the device. In a power-on state, press and hold the power button for three seconds to switch off the device.
-
Page 8: Screen Icons
Screen Icons 13 12 00:15 02-23-2024 03:38:54 PM Home G-Sensor Start/Stop Recording Memory Card Inserted Capture Snapshot Wi-Fi Status Audio Recording On/Of Date & Time Lock/Unlock Video Resolution Front/Rear view Recording Duration GPS Status Note: • If the screen is off, tap the screen to turn it back on. •... -
Page 9: Get Started
You will need to insert a memory card before beginning recording. Push the memory card into the slot until it locks in place. The M2 MAX PRO dash cam accepts memory cards with a maximum capacity of 256GB. Depending on the memory card’s manufacturer and type, some cards may not be compatible with the dash cam. - Page 10 Do not remove the memory card while the device is transferring or accessing information. Doing so can result in data loss, corruption, or damage to the memory card or device. Rexing is not responsible for losses that result from the use of damaged memory cards, including the loss of...
- Page 11 Dash Cam Installation Strap the dash cam to the rearview mirror of your vehicle with the rubber mounting strap. Adjust the angle of the cameras to ensure that it captures your desired view. Mount the rear camera as shown below and then connect the rear camera to the main unit.
- Page 12 The red wire of the rear camera cable provides a 12 Volt power to your rear camera. It is not necessary to connect the red wire to the power supply. But if you want to use the parking assist function, it’s recommended to connect to the power source of your reverse lights, so the screen will display the image of the rear camera automatically when the vehicle is in reverse.
- Page 13 When connecting the charger to the vehicle’s 12V DC outlet, be sure to use only a Rexing-approved charger. The charger should be at least a 2.5A charger which is designed and supplied specifically for use with your device. Using an incompatible charger can cause serious personal injury or damage to your device.
-
Page 14: Basic Operation
Basic Operation Video Recording Operation With a MicroSD card inserted in the device, it will record automatically in video mode after starting. A red indicator will flash in the upper left corner of the screen during video recording. Press the icon to stop recording Press the icon to start recording when no recording is active. - Page 15 Home Interface Choosing the home button brings you to the home screen where you can find smart drive, file explorer, camera settings, and system settings 17:07 11-25-2022 Friday Dashcam Smart drive File explorer Camera setting Sys setting 000 km/h Smart Drive ADAS Auto calibration Auto calibration...
- Page 16 The system is a safe driving assistant system and it cannot be used as a proof for the liability of traffic accidents. ADAS / RCW / BSD Calibration The Rexing M2 Pro MAX is equipped with an auto-calibration feature that activates during the first few minutes of driving, optimizing device performance.
- Page 17 Playback Mode (File Explorer) VIDEO VIDEO-LOCK IMAGE FRONT 2024-03-04_23_47_24_f.ts REAR Key Functions Front camera video file Locked video file Return to home Rear camera video file Image files Enter the file list interface and touch the icon to lock a video file. For a locked video file, touch the icon to unlock the file.
-
Page 18: Camera Settings
Camera Settings Driver setting Record resolution 3840*2160 (4K) Loop record 1 Minute 60 Hz Light source frequency Gsensor sensitivity Parking monitor • Video Resolution: 4K Front + 1080P Rear • Loop Recording: 1, 2 and 3 minutes. Video record is saved in segments. When the storage card is full, the earliest recorded video will be overwritten in order to maintain loop recording status. - Page 19 • Rear camera direction Normal, Flip, Mirror, Flip+Mirror • Time Stamp Off, On • HDR (High dynamic range) Off, On • Parking Monitor (On, Off) This feature is on when you see the illuminated icon in the status bar on the video recording interface, and it is off when you see the grayed-out icon.
- Page 20 When the engine is restarted and the parking monitor has been activated, a prompt will be immediately indicated as shown below: Notice Crash happened during parking. Please check the video. Monitoring files are saved in the folders VIDEO_F_LOCK and VIDEO_R_LOCK.
-
Page 21: System Setup
System Setup Sys setting Set Rear View Default Volume setting Keytone Screen sleep Closed Speed unit • Wi-Fi On, Off. • Volume Setup 0, 1, 2, 3, 4 Sets the audio volume of the system. • Screen sleep 1 Minute, 3 Minutes, off Sets the time to activate the screen’s sleep mode. - Page 22 • Language Setup English, Chinese, Japanese, and other languages. • Time Zone Select Select your timezone. • Time Setup System time setup. • Satellite Information Check GPS information status and GPS signal condition. • System Formatting Confirm, Cancel. Note Formatting removes all files (including protected files) from the storage card. Files cannot be restored after formatting.
-
Page 23: Parking Monitor
Rexing Smart Hardwire Kit with Type C port is required (Package Included). Switched Fuse Hot Fuse... - Page 24 Gravity Sensing Record The Gravity Sensing detects significant or sudden movement (such as an impact or collision), it will trigger an event recording. We suggest setting the “Gravity Sensing” to High sensitivity for Parking Mode Recording. Note If you do not use the parking mode function, please change the Gravity Sensing sensitivity to low.
- Page 25 Check Recorded Files with a Computer Unplug the used MicroSD card and place it into a card reader Connect the card reader to the USB port of the computer. Open the removable disc and you will see the following file folders •...
-
Page 26: Gps Logger
GPS Logger You can then access this information while playing back your recordings using the GPS Video player (For Windows and Mac, available at rexingusa.com) The dash cam will automatically search for the GPS signal once it’s connected to the power source. Press the HOME button and go to System Settings. - Page 27 Wi-Fi Connect Step1 To enable the Wi-Fi feature, go to system settings, find Wi-Fi, and choose On. Step 2 On your mobile device, navigate to your Wi-Fi settings. Connect to your dash cam's Wi-Fi by tapping its name when it appears. Enter your dash cam's Wi-Fi password if you are prompted to do so.
- Page 28 Step 3 Once you're connected to the dash cam, open the Rexing Connect app on your mobile device. Please select "Keep Trying Wi-Fi" if you see the notification on the right. Step 4 In the app, hit the "Connect" button to connect to your dash cam, allowing you to access live view and view/download your recordings.
- Page 29 Easily download the app by scanning the QR code below or search via the App Store or Google Play. Wi-Fi Connect Troubleshooting If you bring up the Rexing connect app and cannot connect your phone to the dash cam please go to https://www.rexingusa.com/wifi-connect/...
-
Page 30: Product Specifications
Product Specifications IPS Touch Screen Display Class 10 and above (supports a card MicroSD card capacity up to 256GB) Built-in Speaker Built-in Video format Picture format 3840 X 2160(4K) Video resolution Available English, Chinese, Japanese, and other languages. languages G-SENSOR 1, 2, 3 minutes Loop recording DC5V 2000mA... -
Page 31: General Troubleshooting
General Troubleshooting Trouble Possible Causes Solution Defective connection Check the plug to the cigarette Device fails to with the charger or lighter or check the charger fuse power on burned out fuse for continuity • MicroSD card is not Plug in the card. If the card is not Device fails inserted or recognized, unplug it and plug it in... -
Page 32: Warranty And Support
If you have any thoughts on how we can do even better, we welcome your constructive feedback and suggestions. Connect with us today at care@rexingusa.com Thank you for choosing Rexing! - Page 33 FCC ID：2AW5W-M2Max This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
