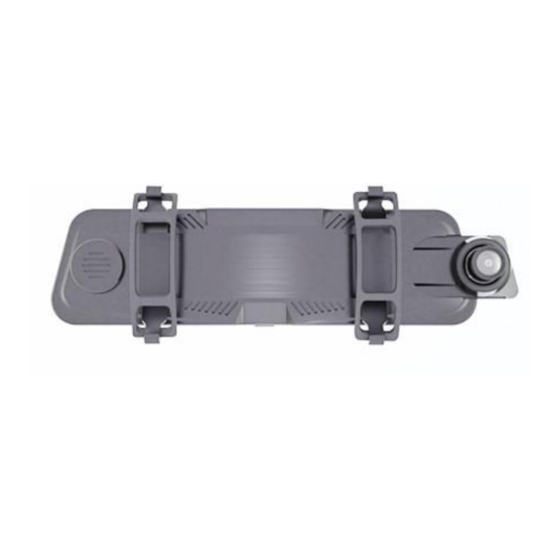

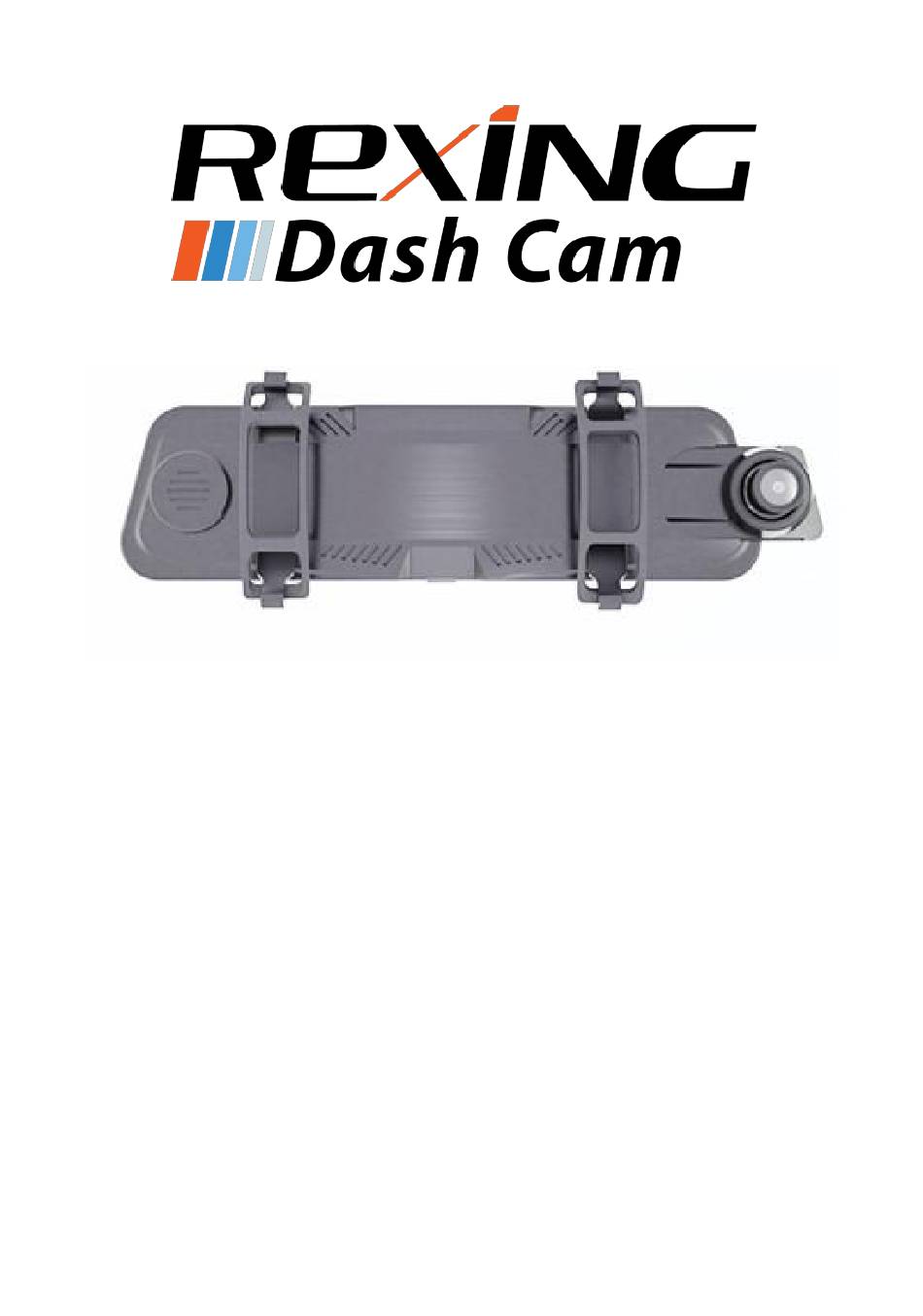

- Page 1 Rexing M1 User Manual The information in this manual is subject to change without notice. www.rexingusa.com 03/2019Rev2 © 2019 REXING All Rights Reserved...
-
Page 2: Safety Information
Failure to comply with safety warnings and regulations can result in serious injury or death. Rexing Dash Cam is not intended to be touched, modified, or calibrated while operating a vehicle. Rexing is not responsible for any damages resulting from the user's misuse of the camera. - Page 3 • Rexing cannot be responsible for the user’s safety when using accessories or supplies that are not approved by Rexing. Do not drop the charger or device, or subject them to impact. Handle and dispose of the charger and device with care.
- Page 4 If you notice strange smells or sounds coming from your device, or if you see smoke or liquid leaking from the device, stop using the device immediately and take it to a Rexing Service Center. Failure to do so may result in fire or explosion.
- Page 5 Do not attempt to disassemble, repair, or modify your device. • Any changes or modifications to your device can void your manufacturer’s warranty. © 2019 REXING All Rights Reserved...
-
Page 6: Correct Disposal Of This Product
Household users should contact either the retailer where they purchased this product, or their local government office, for information on where and how they can take these items for environmentally safe recycling. © 2019 REXING All Rights Reserved... -
Page 7: Disclaimer
ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL REXING BE LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES... - Page 8 SERVICE BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.” Third party services may be terminated or interrupted at any time, and Rexing makes no representation or warranty that any content or service will remain available for any period of time.
-
Page 9: About This Manual
Content may differ from the final product or from software provided by service providers, and is subject to change without prior notice. • For the latest version of this manual, refer to the Rexing website at www.rexingusa.com. • Available features and additional services may vary by device and software. -
Page 10: Table Of Contents
Installation ..................... 17 Powering the Camera ................19 Inserting the Memory Card ..............20 Removing the Memory Card ..............21 Formatting the Memory Card ............... 21 Powering the Device Manually ............. 22 Basic Operation..................23 © 2019 REXING All Rights Reserved... - Page 11 Date and Time ..................27 Format ....................27 Default Settings ..................27 Version....................27 Playback..................... 28 Camera Playback Mode ............... 28 Computer Playback ................29 Troubleshooting ..................30 Updating Firmware................30 Common Solutions................31 © 2019 REXING All Rights Reserved...
-
Page 12: Product Specifications
2304x1296p30f, 1920x1080p30f, 1280x720p30f Video Resolution - Rear 1280x720p25f Languages English, Chinese (Simplified / Traditional) Segment Recording 1 min / 3 min / 5 min Screen Saver 1 min / 2 min / 3 min / Off © 2018 REXING All Rights Reserved... -
Page 13: Package Contents
All supplied items are designed for use only with this device and may not be compatible with other devices. Malfunctions resulting from the use of unapproved accessories are not covered by the warranty service. For more information about available accessories, refer to www.rexingusa.com. © 2018 REXING All Rights Reserved... -
Page 14: Camera Overview
1. Mini-USB Port: Plug the mini-USB end of the car charger cable to power the device 2. AV Port: Plug the rear camera cable to operate the rear camera 3. Micro SD (TF) Card Slot: Insert your micro SD card (See: Page 21) © 2018 REXING All Rights Reserved... -
Page 15: Buttons
Press down on gold pin to reset the device Tap to begin recording Tap to stop recording (Red) Tap to take a photo Tap to disable audio recording Tap to enable audio recording Tap to lock recording Tap to unlock recording © 2018 REXING All Rights Reserved... -
Page 16: Status Icons
Camera Overview Tap to access Playback Mode Tap to access Settings Menu Status Icons Icon Meaning Currently recording (blinking) Recording locked Audio recording disabled G-sensor enabled Connected to power source © 2018 REXING All Rights Reserved... -
Page 17: Getting Started
SD cards up to 256GB in size. 3. Mount the rear camera Mount the rear camera as shown above. Use the rear camera extension cable to connect the waterproof rear camera to the front camera. © 2018 REXING All Rights Reserved... - Page 18 4. Connect the car charger to the car's 12V DC outlet Run the cable down from your camera to the 12V cigarette lighter port of your vehicle. Be sure to connect only Rexing-approved chargers designed and supplied specifically for use with your device. Using an incompatible charger can cause serious personal injury or damage to your device.
-
Page 19: Powering The Camera
• If the device is not charging properly, take the device and the charger to an authorized Rexing Service Center or contact Customer Care. Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty. -
Page 20: Inserting The Memory Card
Note: We recommend choosing a memory card which is specified for dash cam use. Our latest card recommendations can be found on our blog post titled “Choosing a Memory Card” (www.rexingusa.com/choosing-a-memory-card). © 2018 REXING All Rights Reserved... -
Page 21: Removing The Memory Card
Do not remove the memory card while the device is transferring or accessing information. Doing so can result in data loss or corruption, or damage to the memory card or device. Rexing is not responsible for losses that result from the use of damaged memory cards, including the loss of data. -
Page 22: Powering The Device Manually
A welcome message will be displayed onscreen, as shown in the image below. To turn off the device, again press and hold the Power button for a few seconds. The above image will be displayed briefly upon shutdown. © 2018 REXING All Rights Reserved... -
Page 23: Basic Operation
While recording, you can tap the Lock button to manually lock the current video clip. This will ensure that the clip will not be overwritten by Segment Recording when the memory card is full. Locked videos can be found on the memory card under the “Lock” folder. © 2018 REXING All Rights Reserved... -
Page 24: Settings
Video will be continually recorded, split into segments. When the storage limit is reached on the memory card, new recordings will automatically overwrite oldest recordings. Locked video files on the memory card will remain protected and will not be overwritten. © 2018 REXING All Rights Reserved... -
Page 25: Exposure
Parking Monitor Default setting: Off When this function is enabled, the camera will automatically enter parking mode whenever it is shut down. When parking mode is enabled and a collision is © 2018 REXING All Rights Reserved... -
Page 26: Screen Saver
The volume level of the sound effects from the device. Note: Changing this setting will not affect the audio of your recordings. Frequency Default setting: 60Hz Power supply specification used in your country or geographical region. United States users should use 60Hz (default). © 2018 REXING All Rights Reserved... -
Page 27: Date And Time
Note: Locked videos will also be cleared, so ensure you have backed up your important footage before formatting the card. Default Settings Performing this operation will reset all settings to their default values. Version Displays the current device firmware information. © 2018 REXING All Rights Reserved... -
Page 28: Playback
• To exit a recording, tap the arrow icon on the top left of the display. • To exit Playback Mode, tap the arrow icon on the top left of the display. © 2018 REXING All Rights Reserved... -
Page 29: Computer Playback
“Video” folder, sorted into the “F” and “R” subfolders respectively. Finding locked files Locked videos can be found on the memory card under the “Lock” folder. © 2018 REXING All Rights Reserved... -
Page 30: Troubleshooting
10. After formatting, use the Power button to reboot the camera. Do not disconnect the camera from the power source. 11. Upon reboot, you may disconnect your camera from power. © 2018 REXING All Rights Reserved... -
Page 31: Common Solutions
Settings Menu Ensure you are using a proper connection for charging your device Battery is depleted while driving Device keeps Power cable is rebooting Contact customer care defective for assistance with a replacement power cable © 2018 REXING All Rights Reserved... - Page 32 Contact customer care Camera isn’t getting for assistance with a continuous power replacement power cable Format the memory Memory card is Screen is frozen card. If issue persists, defective or corrupted replace the memory card © 2018 REXING All Rights Reserved...
- Page 33 Format the memory card Make sure G-sensor is on low sensitivity There are too many Clear locked files Memory card is full locked videos Format the memory card. If issue persists, replace the memory card © 2018 REXING All Rights Reserved...
- Page 34 This feature can only Car charging port has Auto On/Off isn’t work if it is being used in continuous flow of working a charging port that turns power off with the vehicle © 2018 REXING All Rights Reserved...
