Related Manuals for Rexing M4-4
Summary of Contents for Rexing M4-4

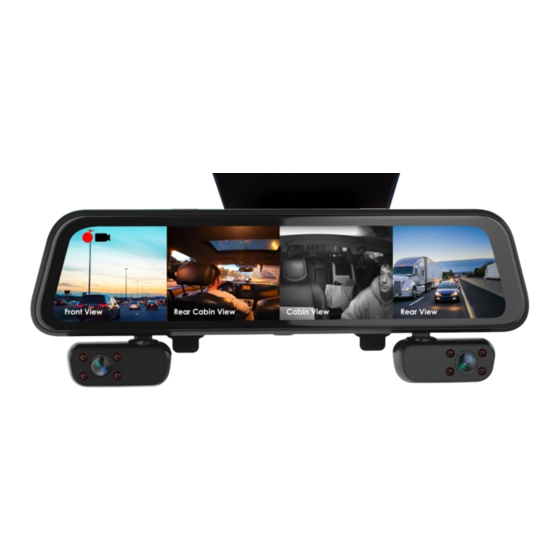

- Page 1 M4-4 User Manual The information in this manual is subject to change without notice. www.rexingusa.com www.rexingusa.com REV012024...
- Page 2 Activate Your 18-Month Warranty & Choose Your Free Gift! Activate within 30 days of purchase to claim your free gift and extended limited 12-month warranty to 18 months. SCAN Scan the QR to Activate & Select Your Free Gift https://www.rexingusa.com/productreg/...
-
Page 3: Table Of Contents
Table of Contents Overview Screen Saver What’s in the Box Volume Camera Overview Language Screen Icons Date and Time Memory Card Installation Light Frequency Recording Audio Insert a Memory Card Beep Sound Formatting a Memory Card Installation Channel Setting Reset Dash Cam Installation FW Version Install a GPS Logger... -
Page 4: Overview
(877) 740-8004 Our support team will respond to you as soon as possible. Always a surprise with Rexing Check us out here. • https://www.facebook.com/rexingusa/ • https://www.instagram.com/rexingdashcam/ • https://www.rexingusa.com/support/registration/... -
Page 5: What's In The Box
User Manual The information in this manual is subject to change without notice. www.rexingusa.com www.rexingusa.com REV012024 Rear Camera Cable Rexing M4 smart mirror dash cam Cable management tool Rear Camera User manual In-car power cable (12ft) Warning Sticker GPS Logger... -
Page 6: Camera Overview
Camera Overview Rubber Mounting Strap Type-C Power Port Rear Camera Port MicroSD Card Slot GPS Port POWER 12" Display/Touchscreen Rotatable Cabin Cam Infrared Lights (Invisible to the eye, will automatically turn on or o according to the brightness of light in the vehicle) Power Button Reset Pinhole Front Camera... -
Page 7: Screen Icons
Screen Icons 12 13 14 15 16 00:10 14/04/24 09:39:00 1080*4 Start/Stop Recording Resolution Mic on/o Recording Indicator Lock/Unlock Current Video Mic Status Take Photo Lock Status Screen View Switch Speaker Status Playback GPS Status Screen Brightness MicroSD Status Settings Date Time Video Clip Length Note... -
Page 8: Memory Card Installation
Memory Card Installation Step 1. Insert a Memory Card You will need to insert a memory card before beginning recording. Push the memory card into the slot until it locks in place. The M4 dash cam accepts memory cards with a maximum capacity of 256GB. -
Page 9: Formatting A Memory Card
Step 2. Formatting the Memory Card Tap the icon to stop recording Tap the icon to access settings Tap General Settings Toggle down to Format Tap OK to format the card Please format the card on the dash cam before using it. Before formatting a memory card, always remember to make backup copies of all important data stored on the device. - Page 10 Do not remove the memory card while the device is transferring or accessing information. Doing so can result in data loss, corruption, or damage to the memory card or device. Rexing is not responsible for losses that result from the use of damaged memory cards, including the...
-
Page 11: Installation
Installation Dash Cam Installation Strap the dash cam to the rearview mirror of your vehicle with the rubber mounting strap. Adjust the angle of the cameras to ensure that it captures your desired view. Mount the rear camera as shown below and then connect the rear camera to the main unit. - Page 12 The device will be automatically be powered on when plugged into a 12V accessory socket or cigarette lighter and received a charge (i.e.: the vehicle is started). To turn the device on manually, press and hold the Power button for 3 seconds until the welcome screen appears. The dash cam will automatically start recording when powered on.
- Page 13 Optimum Installation Location When connecting the charger to the vehicle’s 12V DC outlet, be sure to use only a Rexing-approved charger. The charger should be at least a 2.5A charger which is designed and supplied specifically for use with your device.
- Page 14 Note Due to unstable voltages caused by starting the car engine, a voltage fluctuation in some vehicles may be especially obvious. If a flashing screen or some other unforeseeable operating problem occurs when you start the engine, it is recommended to unplug the device from the charger before starting the engine, and then reconnect it after the engine is running.
-
Page 15: Install A Gps Logger
GPS Logger You can then access this information while playing back your recordings using the GPS Video player (For Windows and Mac, available at rexingusa.com) The dash cam will automatically search for the GPS signal once it’s connected to the power source. Press the HOME button and go to System Settings. -
Page 16: Video Playback
Video Playback To playback a video on the device, press the icon on the home screen and select a desired file to play. Front 20240413_001325F 20240413_001221F 20240413_001107F 20240413_000015F To playback a video on the computer, either use an SD card adapter or connect the device to the computer directly using the included USB cable. -
Page 17: Basic Operations
Basic Operations Resolution The dash cam can record videos in two, three, or four channels. The video resolution taken by each camera is FHD 1920x1080P. Loop Recording With Loop Recording Mode enabled, the device will continuously erase the older video as it records a new video, keeping only the footage captured over a user-selected time range. -
Page 18: G-Sensor
G-sensor If a change in gravitational forces is detected, such as in the event of a vehicular accident, the g-sensor will signal to the camera, and an automatic locked file will be placed on the current video, preserving your most crucial footage. Locked videos can be found on the memory card under “\event”. -
Page 19: Parking Monitor
Note Rexing Dash Cam Smart Hardwire Kit, Type-C Hard Wire Kit Needed. Gravity Sensing Record The Gravity Sensing detects significant or sudden movement (such as an impact or collision), it will trigger an event recording. - Page 20 Option 2: Motion Detection To use this feature, you need to connect it with a Rexing Intelligent Hardwire Kit Type-C Port (available on rexingusa.com, sold separately). Make sure that the Parking Mode is turned off on your dash cam, otherwise it may cause a malfunction.
-
Page 21: Screen Saver
Screen Saver Select a time duration for the screen to stay on after recording starts. Screen Saver 04/13/2024 00:46:39 Speed date 15 Seconds 1 Minute Volume Use this option to adjust the volume of the device's sound. Volume 04/13/2024 00:46:39 Language Use this option to select a display language. -
Page 22: Date And Time
Date and Time Use the following procedure to change the device’s time and date. Tap the icon to stop recording Tap the icon to access settings Choice Year, Month, Day, Hour, Minute, Second Tap the to save to exit Date Setting Date Format MM/DD/YY Month... -
Page 23: Channel Setting
Channel Setting To Flip/Mirror each channel. 04/13/2024 00:46:39 Channel Settings Front Left Right Back Flip: Mirror: Reset Performing this operation will reset all of your device's settings to their original values. Note Any user-customized settings will be lost. Confirm restore default settings? Cancel FW Version View the current device firmware information. -
Page 24: Warranty And Support
If you have any thoughts on how we can do even better, we welcome your constructive feedback and suggestions. Connect with us today at care@rexingusa.com Thank you for choosing Rexing! - Page 25 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
