- Page 1 USER MANUAL V2 PRO All brand and product names are trademarks or registered trademarks of REXING INC. The information in this manual is subject to change without notice. www.rexingusa.com 12/2019Rev1...
- Page 2 • Contents may differ from the final product or from software provided by service providers, and is subject to change without prior notice. For the latest version of this manual, refer to the Rexing website at • www.rexingusa.com. Available features and additional services may vary by device and software.
-
Page 3: Table Of Contents
Table of Contents Contents What’s in the Box? ..............1 Camera Overview ..............1 Buttons................2 Status Icons................. 3 Getting Started ............... 5 Installation................5 1. Mount the Front Camera to the Windshield....5 2. Inserting a Memory Card ..........6 Removing a Memory Card .......... - Page 4 Camera Overview WDR (Wide Dynamic Range) ...........16 Exposure Comp ..............16 Recording Audio .............16 Date Stamp ..............17 Gravity Sensing (G-Sensor) ..........17 Plate Number ..............17 LDW (ADAS) ..............17 FCW (ADAS) ..............18 Infrared light ..............18 Back Camera Mirror............18 System Settings ..............18 Wi-Fi ................18 Date/ Time Setup............18 Beep Sound ..............19 Language ...............19...
- Page 5 Camera Overview Default Setting ...............20 Version ................20 Photo Settings ...............21 Capture Mode ..............21 Resolution..............21 Quality ................21 Sharpness ..............21 White Balance ..............21 Color................22 ISO.................22 Exposure Comp ..............22 Anti-Shaking ..............22 Quick Review..............22 Date Stamp ..............22 Updating Firmware ..............24 Product Specifications ............25 Warranty & Support...............26 Warranty ...............26...
- Page 6 Camera Overview Support................26 Your opinion matters ............26...
-
Page 7: What's In The Box
All supplied items are designed for use only with this device and may not be compatible with other devices. Malfunctions resulting from the use of unapproved accessories are not covered by the warranty service. For more information about available accessories, refer to the Rexing website at www.rexingusa.com. -
Page 8: Camera Overview

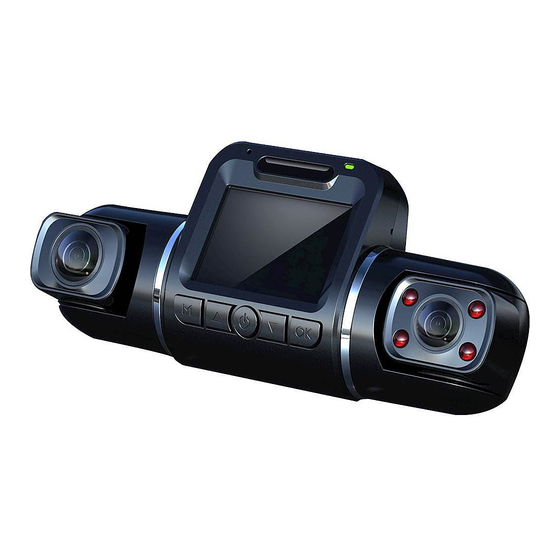

Camera Overview 1. MENU Button 7. Rear camera pot (Not 2. UP Button supported) 3. Power Button 8. Micro SD card slot 4. DOWN Button 9. Power Slot 5. OK Button 10. Front Camera 6. IR Lights 11. Cabin camera... -
Page 9: Buttons
Buttons Buttons Button Functions • Press to turn on or off screen • Hold to turn the device on or off • Press to confirm a selection while in Setting Mode • Press to start / stop recording • Press to enter or exit Settings Mode •... -
Page 10: Status Icons
Status Icons Status Icons Icon Description Video Resolution Blinking – Recording Wide Dynamic Range Charging Microphone Mute Microphone On Video Recording Mode Video Playback Mode Photo Mode Loop Recording Memory Card Inserted White Balance... - Page 11 Getting Started Installation ADAS ADAS/ LDW/FCW On ADAS/ LDW/FCW Off License plate number Current video file locked...
-
Page 12: Getting Started
Getting Started Installation Getting Started Installation Video guide: video.rexingusa.com 1. Mount the Front Camera to the Windshield Make sure that you mount the front camera in a safe, appropriate location where it won’t obstruct the driver’s view. Clean your windshield before applying the mount. -
Page 13: Inserting A Memory Card
Getting Started Installation 2. Inserting a Memory Card The V2 PRO accepts Micro SD memory cards (class 10 or higher) with a maximum capacity of 256GB. Inserting a memory card a. If the device is powered on, press and hold the POWER button to power it down. -
Page 14: Removing A Memory Card
Getting Started Installation Removing a Memory Card Before removing a memory card from your V2 PRO, you must first dismount it for safe removal With the device powered down, press down the memory card until you hear a click. Gently remove your finger (or other pressing object) to allow the spring release to push the memory card out of the slot. - Page 15 Getting Started Installation If the device receives an unstable power supply, the screen may not function properly. If the device is not operating properly using a Rexing- approved charger, please contact Rexing Customer Care (care@rexingusa.com). 3.2 Formatting the Memory Card Before formatting your memory card, always remember to make backup copies of all important data stored on the card.
- Page 16 POWER button for a few seconds. A goodbye message will be displayed onscreen. The V2 PRO will switch on or off automatically if you keep it connected using the car charger. The camera will automatically start recording when it is powered on.
-
Page 17: Basic Operation
Getting Started Basic Operation Basic Operation 1. Automatic Recording The device will automatically turn on and begin recording once it receives power, such as when you start your car. The indicator and the red dot icon on screen will flash while recording. Display Control To switch between camera views on the LCD display, hold the ▲button. -
Page 18: Playback
Getting Started Basic Operation In Video Recording Mode, while recording is stopped, press the MENU button twice OR Hold ▼ to enable the Wi-Fi feature. For detailed instructions on how to use Wi-Fi feature, see page 15 – Wi-Fi Connect. 2. - Page 19 Getting Started Basic Operation To delete all files: 1. Press on UP or DOWN button to navigate through the video files 2. Press OK to enter "Video" 3. Press MENU to view options for this file: Delete/Protect/Slide Show 4. Press OK once to view options for "Delete Current" or "Delete All" files. 5.
- Page 20 Getting Started Basic Operation software to your computer. e. Once the application is installed, you may launch the application. Please go to rexingusa.com/support/videos/ for a tutorial video. Opening a GPS video file a. Once you’ve opened the application, navigate to the top menu bar and click “File >...
-
Page 21: Wi-Fi Connect
Dash Cam: Once connected, the screen should switch to the camera view and display a “Wi-Fi Connected” message. Using the Rexing Connect app, you can view a live preview of the dash cam screen, start / stop recording, as well as view and save your captures with your mobile device. -
Page 22: Video Settings
Video Settings Video Settings On Video Recording Mode, Press OK button to stop recording then press MENU button once open System Settings Menu. Resolution Recommend Setting: 1080P FHD + 1080P FHD Use this setting to set the recording resolution: FHD P30 + FHD P30 (1080P+1080P, 30fps, dual channel) •... -
Page 23: Wdr (Wide Dynamic Range)
Video Settings keeps important elements of data and file structure clean, helping to prevent error messages and missing images. Remember to always make backup copies of all important data stored on the device. The manufacturer’s warranty does not cover loss of data resulting from user actions. -
Page 24: Date Stamp
Video Settings Date Stamp You have the option to display the date and time in your videos. Note: The date and time stamp cannot be removed from videos if this feature was enabled at the time of recording. Gravity Sensing (G-Sensor) Recommend setting: Low This feature acts as an accelerometer, measuring physical and gravitational forces acting on the camera itself. -
Page 25: Fcw (Adas)
Video Settings FCW (ADAS) A forward collision warning (FCW) system is an advanced safety technology that monitors a vehicle's speed, the speed of the vehicle in front of it, and the distance between the vehicles. If vehicles get too close due to the speed of the rear vehicle, the FCW system will warn that driver of an impending crash. -
Page 26: Beep Sound
Video Settings UP/Down – Change value OK – Move to next segment MENU – Save Settings Note: If the battery remains fully discharged or is removed from the device, the time and date will be reset. Beep Sound Recommend setting: On This setting allows you to turn the device's button sound effect on or off. -
Page 27: Format
Video Settings Format Performing this operation will format memory card. Note: any files in the memory card will be lost. Default Setting Performing this operation will reset all your device's settings to their original values. Note: any user-customized settings will be lost. Version Device firmware version information. -
Page 28: Photo Settings
Operating your V2 Dashboard Camera Settings Photo Settings On Photo Mode, Press MENU button once open System Settings Menu. Capture Mode Recommend setting: Single With this feature you can set a timer for automatically capturing images. Resolution Recommend setting: 5M This option allows you to set the pixel resolution for captured images. -
Page 29: Color
Operating your V2 Dashboard Camera Settings Color Recommend setting: Color This feature allows you to choose a color effect for captured images. Recommend setting: Auto This setting enable you to adjust the camera's sensitivity to light when taking photos. The higher the number, the greater the light sensitivity. Exposure Comp Recommend setting: +0.0 This setting allows you to adjust the brightness level of captured images. - Page 30 Operating your V2 Dashboard Camera Settings This feature will automatically apply a date and/or time stamp to captured images.
-
Page 31: Updating Firmware
The following procedure will allow you to use the Rexing website to update firmware for your V2 Pro Dashboard Camera. This is necessary for enabling all available features on your device. 1. Download the firmware file to your computer 2. -
Page 32: Product Specifications
Operating your V2 Dashboard Camera Product Specificati o ns Product Specifications Image Sensor 5MP CMOS Lens 6-Layer Fixed-focus with full-glass elements Novatek 2 inch, 16:9 Audio Built-in high-sensitivity microphone/speaker External Memory Class 10 or above MicroSD card (up to 256GB) Gravity Sensor Low / Medium / High / OFF Shutter... -
Page 33: Warranty & Support
Operating your V2 Dashboard Camera Product Specificati o ns Warranty & Support Warranty The Rexing V2 Dash Cam comes with a full 12-month warranty. If you register your product on our official site (https://www.rexingusa.com/support/registration), you can extend the warranty to 18 months.
