M2
User Manual
BestBuy Edition
The information in this manual is subject to change without notice.
www.rexingusa.com
082023REV2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BestBuy M2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rexing BestBuy M2

Summary of Contents for Rexing BestBuy M2

  • Page 1 User Manual BestBuy Edition The information in this manual is subject to change without notice. www.rexingusa.com 082023REV2...
  • Page 2 Activate Your 18-Month Warranty Choose Your & FREE Gift! Activate within 30 days of purchase to claim your free gift and extend your limited 12-month warranty to 18 months. Scan The QR To Activate & Select Your Free Gift https://www.rexingusa.com/productreg/...
  • Page 3 Notice The user menu is to be set up in non-video mode. If the device is in video mode, please proceed only after stopping the video recording. Memory Card: Using a new MicroSD card always requires formatting it to your device. Regularly clear the memory card, as continuous video recording for an extended period of time may produce some protected files that are not subject to long-term protection (these files may not be overwritten during loop recording) and some storage...
  • Page 4 Warning The battery (module or pack) must not be expose to an overheat environment such as direct sunlight or flame. Never remove, strike, or squeeze the battery or put it in fire. Stop using the battery if it is ballooned, warped, leaking, or shows any other visible signs of damage.
  • Page 5 We hope you love your new products as much as we do. If you need assistance, or have any suggestions to improve it, please contact us. care@rexingusa.com (877) 740-8004 Our support team will respond you as soon as possible. Always a surprise in Rexing. Check us out here. • https://www.facebook.com/rexingusa/ • https://www.instagram.com/rexingdashcam/ • https://www.rexingusa.com/support/registration/...

  • Page 6: What's In The Box

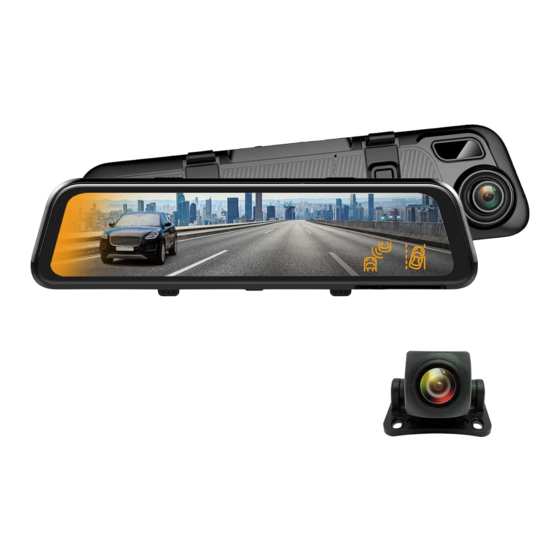

    What’s in the box? User Manual The information in this manual is subject to change without notice. www.rexingusa.com 082023REV2 Rexing M2 Smart Mirror Dash camera Rear camera cable Rexing rear camera User Manual GPS Logger Hardwire Kit Cable Management Tool...

  • Page 7: Camera Overview

    Camera Overview Rubber Mounting Strap USB Port Rearview Camera Port MicroSD Card Slot GPS Port Display/Touch Screen Front Camera Reset Key Pinhole Speaker MIC Pinhole Power Key...

  • Page 8: Description Of Functions

    Designation Description of Functions This button controls the device's power. With the device connected to an external power source, Power Button pressing this button will turn it on or off. Additionally, a quick press will toggle the screen's backlight. The touch screen is your main interface for accessing the device's features.

  • Page 9: Screen Icons

    Screen Icons 4 5 6 7 8 00:29 15:58 08-04-2023Fri 15 14 Recording Time Mic on/off Screen Brightness Lock/Unlock a Video Video Mode Take a Photo Video Recording G Sensor On Memory Card Inserted Back Button Battery Charging Home Button GPS Signal Parking Monitor Toggle Front/Rear Camera...

  • Page 10: Get Started

    Get Started Memory Card Installation Step 1. Insert a Memory Card You will need to insert a memory card before beginning recording. Push the memory card into the slot until it locks in place. The M2 dash cam accepts memory cards with a maximum capacity of 256GB.
  • Page 11 Do not remove the memory card while the device is transferring or accessing information. Doing so can result in data loss, corruption, or damage to the memory card or device. Rexing is not responsible for losses that result from the use of damaged memory cards, including the loss of...

  • Page 12: Dash Cam Installation

    Dash Cam Installation Strap the dash cam to the rearview mirror of your vehicle with the rubber mounting strap. Adjust the angle of the cameras to ensure that it captures your desired view. Mount the rear camera as shown below and then connect the rear camera to the main unit.
  • Page 13 The red wire of the rear camera cable provides a 12 Volt power to your rear camera. It is not necessary to connect the red wire to the power supply. But if you want to use the parking assist function, it’s recommended to connect to the power source of your reverse lights, so the screen will display the image of the rear camera automatically when the vehicle is in reverse.
  • Page 14 When connecting the charger to the vehicle’s 12V DC outlet, be sure to use only a Rexing-approved charger. The charger should be at least a 2.5A charger which is designed and supplied specifically for use with your device. Using an incompatible charger can cause serious personal injury or damage to your device.

  • Page 15: Basic Operations

    Basic Operations Video Mode 00:03 18:03 12-05-2019 Thursday Key Functions Return to the main interface. Return to the previous operation menu. Start/Stop video recording. Take a snapshot. Locking/Unlocking (if locked) a file. Audio recording On/Off. Front/Rear view switching. Time, date, and weekday display. Status bar: An icon that is illuminated indicates a corresponding enabled function;...
  • Page 16 Video Recording Operation With a MicroSD card inserted in the device, it will record automatically in video mode after starting. A red indicator will flash in the upper left corner of the screen during video recording. Press the icon to stop recording Press the icon to start recording when no recording is active.

  • Page 17: Main Interface

    Main Interface The default interface is video recording screen after starting. Press the icon to access the main interface, which is the entry that can be used to access all functions and setup menus. The interface is shown below. 18:03 12-05-2019 Thursday Smart Driving Mode Note:...
  • Page 18 Advanced Driving Blind Spot Assistant System Monitoring System 18:03 12-05-2019 Thursday Enable/Disable Button Outline ADAS refers to Advanced Driving Assistant System. This model mainly includes FCWS(Forward Collision Warning System), LDWS(Lane Departure Warning System) and a stop & go function. That is, an alert or warning is generated when a potential collision hazard with the car ahead is detected during driving or it is about to deviate from its lane.
  • Page 19 The following instructions are mainly used for the calibration of the smart driving application of the dashcam. It mainly includes the calibration of ADAS and the blind spot monitoring range. Before using ADAS, it is necessary to calibrate it according to its mounting position and view angle of the dashcam.
  • Page 20 ADAS Calibration Start Enter smart driving interface Save results and exit Turn on ADAS Adjust by moving the red, green and yellow lines Enter ADAS setup interface Exit ADAS setup interface Enter ADAS calibration interface...
  • Page 21 Setup Steps: Open the smart driving application and turn on ADAS (advanced driving assistant system). The button turns from gray to blue. Click to access the ADAS setup page. Click the option Front Car Warning Time and select the appropriate option (a default value may be used).
  • Page 22 Click to access the ADAS calibration page. You will initially see the concept and a brief introduction on the calibration page. Click Next to access the real calibration interface, as shown below. Move the red line up or down align with the horizon (the intersection line between the sky and ground).
  • Page 23 Calibration For Monitoring Blind Spots Start Enter Smart Driving Interface Save the result and exit Turn on BSD Move the box left or right to Enter BSD setup interface adjust blind spot warning range Exit BSD setup interface Enter BSD calibration interface...
  • Page 24 Setup Steps: Open the smart driving application and turn on BSD (Blind Spot Detection). The button turns from gray to blue. Click to enter BSD setup interface. Click the option Warning Speed and select the appropriate option (a default value can be used). The Warning Speed means that when any vehicle is detected within the set warning range, an alarm is activated if the driving speed of the car is greater than the set value.
  • Page 25 Warning Sensitivity BSD setup High Warning Speed Moderate Warning 18:03 Sensitivity 12-05-2019 Thursday Click to access the BSD calibration interface. You will initially see the concept and a brief introduction on the calibration page. Click Next to access the real calibration interface, as shown below: BSD Calibration The red line is the horizon, which should be moved to the interface...
  • Page 26 Note: The range of calibration of the line adjustment is limited. If extreme adjustment is still unsatisfactory, it will be necessary to adjust the mounting position of the camera is or perform fine adjustments of the lens so as to align it in the rearward direction. BSD Calibration Move the red line to the interface between the sky and ground.
  • Page 27 Testing: When testing is on, as shown above, the image from the rearview camera shows two warning zones marked in cyan. It is not shown when the button is o . This function is mainly used for demonstration of the warning ranges.
  • Page 28 Enter the file list interface and touch the icon to lock a video file. For a locked video file, touch the icon to unlock the file. For unwanted video and picture files, touch the icon to delete the file. To play a video file, touch the file name.
  • Page 29 Parking Monitor (Parking Surveillance Mode) Parking monitor provides surveillance on your parked vehicle. When the engine is off, the built-in battery is used to provide continuous power and protect your car battery from being discharged. Option 1: Vibration Detection Set the Parking Monitor Feature “On” in the camera settings, it will allow the dash cam to switch to parking mode automatically if the vehicle’s engine turns off and switch back to the normal recording after vehicle’s engine turns on.

  • Page 30: Option 2: Motion Detection

    Choose the setup that best suits your needs. Option 2: Motion Detection To use this feature, you need to connect it with a Rexing Intelligent Hardwire Kit (UPC: 810046603178, sold separately). Make sure that the Parking Mode is turned off on your dash cam, otherwise it may cause a malfunction.
  • Page 31 GPS Logger You can then access this information while playing back your recordings using the GPS Video player (For Windows and Mac, available at rexingusa.com) The dash cam will automatically search for the GPS signal once it’s connected to the power source. Press the HOME button and go to System Settings.
  • Page 32 Driving Setup Driving Setup Loop Recording Video Resolution 18:03 G-Sensor Sensitivity 12-05-2019 Thursday Rearview Camera Mirroring Image • Loop Recording: 1, 2, 3 minutes. Video record is saved in segments. When the storage card is full, the earliest recorded video will be overwritten in order to maintain loop recording status.
  • Page 33 • Rear Camera Mirroring (On, O ): This feature displays a reverse image on-screen display for rear camera view. On enables mirroring display and o displays the original image. • Mute Video Recording (On, O ): When mute is on, video is recorded with no audio. This function can be directly switched on by clicking the icon on the video recording interface.

  • Page 34: System Setup

    System Setup System Setup Overspeed Setup Speed Error Correction 18:03 12-05-2019 Thursday • Stream Media: When this feature is switched on, the full screen rearview camera image is displayed after starting the device. • Speed Setup: 60 to 160 km/h adjustable •...
  • Page 35 • Volume Setup: 0, 1, 2, 3, 4 Sets the audio volume of the system. • Sleep Mode: 10S, 30S, 60S, o Sets the time to activate the screen’s sleep mode. The display remains on without powering-o when sleep mode is deactivated. •...
  • Page 36 Check Recorded Files with a Computer Unplug the used MicroSD card and place it into a card reader Connect the card reader to the USB port of the computer. Open the removable disc and you will see the following file folders •...

  • Page 37: Product Specifications

    Product Specifications Display TFT display Class 10 and above (supports a card capacity MicroSD card up to 256GB ) Speaker Built-in Built-in Video format Picture format Video resolution 2560 X 1440 Available English, Traditional Chinese, and other languages languages G-SENSOR Loop recording 1, 2, 3 minutes Input current...

  • Page 38: General Troubleshooting

    General Troubleshooting Trouble Possible Causes Solution Check the plug to the cigarette Defective Device fails to lighter or check the charger fuse connection with the power on for continuity charger or burned Plug in the card. If the card is not •...

  • Page 39: Warranty And Support

    Warranty & Support Warranty The Rexing M2 Dash Cam comes with a full 12-month warranty. If you register your product on our o cial site (https://www.rexingusa.com/support/registration), you can extend the warranty to 18 months. Support If you have any questions regarding your product, please do not hesitate to contact us at care@rexingusa.com, or call us at...
  • Page 40 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
