4.1.

Rack Mounting

The iBoot-PDU is designed for mounting in a standard 19" equipment cabinet.
There are two L-shape brackets marked as "L" and "R", install the "L" bracket on the left side of the iBoot-
PDU chassis then the "R" bracket on its right side.

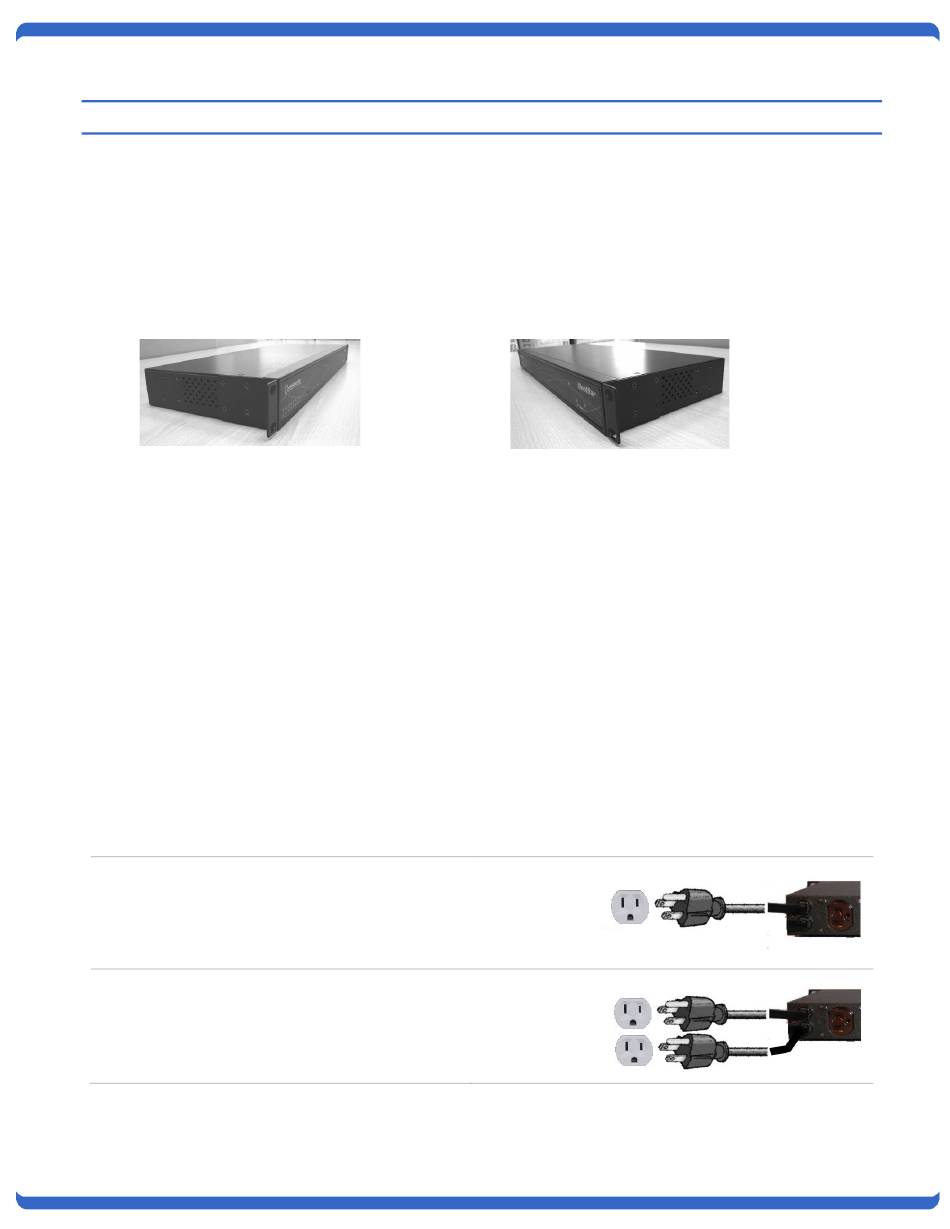

Installed L bracket:
Install the iBoot-PDU to the standard 19-inch rack.
4.2.

Ethernet

The iBoot-PDU has a 10/100 Ethernet port. The default address is 192.168.1.254 or as set by a DHCP
Server on initial power up.
Models with an S designation have dual 1G Ethernet ports. Either port can be used for uplink or downlink
functions. See Appendix A for a complete list of models and configurations.
4.3.

Power Source

The iBoot-PDU4-N15 and iBoot-PDU8-N15
provide a linecord for connection to a 15 Amp
115VAC service. The total maximum current load
for all outlets on these models cannot exceed 15
Amps, 12 Amps sustained load
The iBoot-PDU8-2N15 provides two linecords for
connection to 15 Amp 115VAC services. The total
maximum current load for outlets on any linecord
cannot exceed 15 Amps, 12 Amps sustained load.
Each linecord distributes power to four outlets.
iBoot-PDU_v230829w

4. Installation

Installed R bracket:
iBoot-PDU User Manual Page 9
