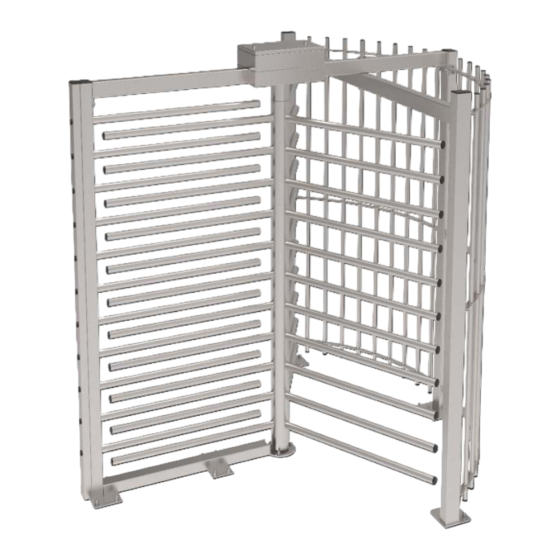

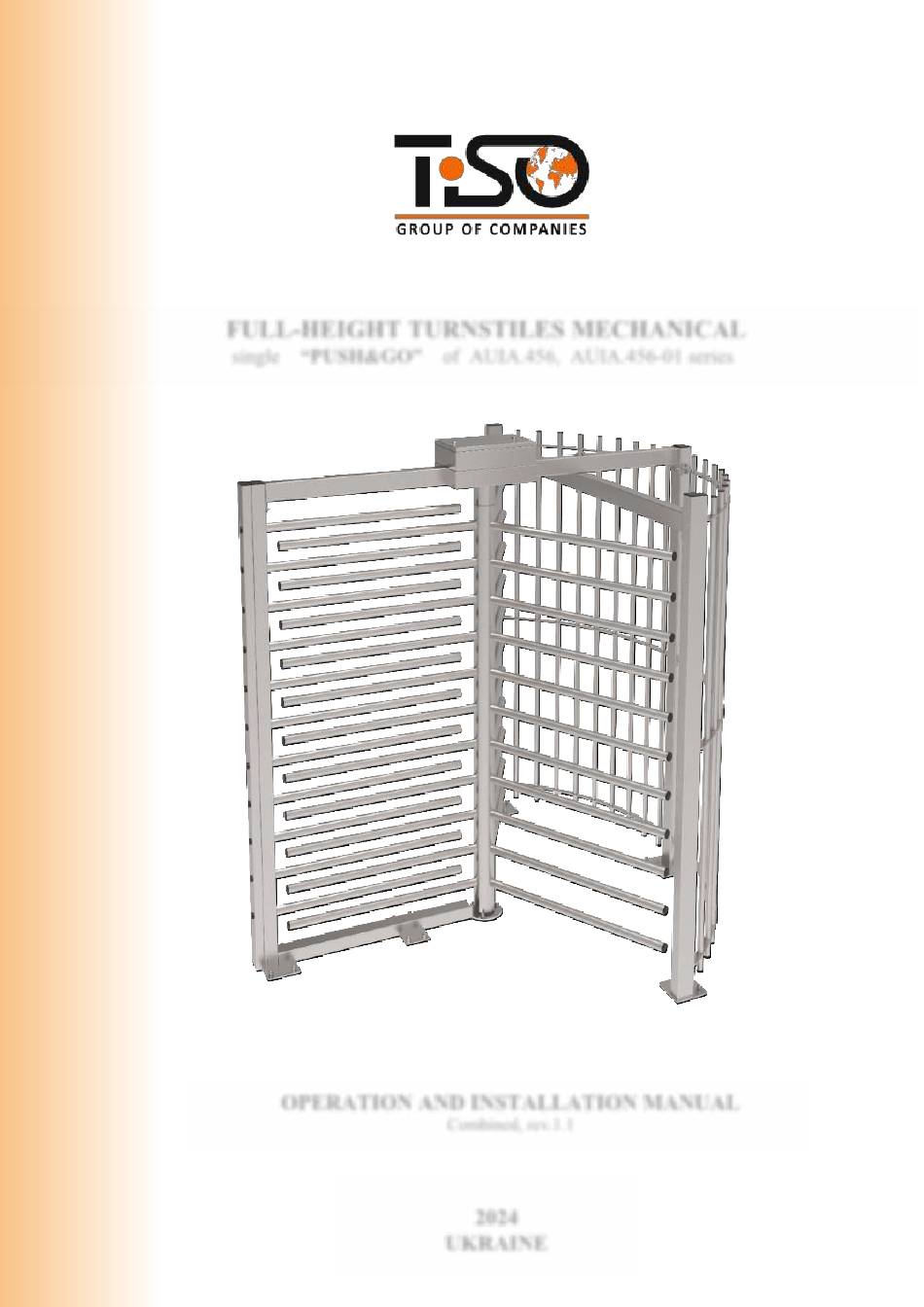

- Page 1 "TiSO-PRODUCTION" LTD FULL-HEIGHT TURNSTILES MECHANICAL single “PUSH&GO” of AUIA.456, AUIA.456-01 series OPERATION AND INSTALLATION MANUAL Combined, rev.1.1 2024 UKRAINE...
-
Page 2: Table Of Contents
Operation Manual CONTENTS INTRODUCTION ..............................3 CUSTOMER WARNINGS ON SAFE OPERATION OF THE TURNSTILE ............4 GENERAL WARNINGS ............................4 1. DESCRIPTION AND OPERATION ........................5 1.1. General Information and Purpose........................5 1.2. Specifications ..............................6 1.3. Product components and scope of delivery ...................... 6 1.4. -
Page 3: Introduction
Operation Manual INTRODUCTION This Operation Manual (hereinafter referred to as OM) covers the nonservo indoor (or outdoor) single full-height turnstiles "PUSH&GO" (hereinafter referred to as the "turnstile"). The Operation Manual contains information about design, specifications, installation for proper operation and maintenance of the turnstile. This Operation Manual is prepared in compliance with the specification requirements ТU U 28.9-32421280- 004:2018. -
Page 4: Customer Warnings On Safe Operation Of The Turnstile
Operation Manual CUSTOMER WARNINGS ON SAFE OPERATION OF THE TURNSTILE These warnings are designed to ensure safety during operation of the turnstile to prevent violation of safety features by improper installation or operation. These warnings are aimed at drawing attention of the customer to safety problems. -
Page 5: Description And Operation
Operation Manual DESCRIPTION AND OPERATION 1.1. General Information and Purpose. 1.1.1 Turnstile purpose: Push&Go is a full-height mechanical turnstile. Such a turnstile ensures passage in one direction and prevents unauthorized entry from the other side. Push&Go has a mechanical drive, which simplifies the installation of such a turnstile. -
Page 6: Specifications
Operation Manual 1.2. Specifications The main parameters of the turnstile are given in Table 4. Table 4 Parameter name Parameter value Throughput in a single pass mode, not less than 60 person/min. Access width, no more than - for turnstile with Y-type rotor (120°) Push&Go AUIA.456 980 mm... -
Page 7: Design And Operation
Operation Manual 1.3.2.The turnstile modifications are made from the following materials: polished or brushed stainless steel (reference designation T1.1.HYO.HХ); carbon steel subject to painting (reference designation T1.1.HYO.КХ); carbon steel subject to galvanization (reference designation T1.1.HYO.ZХ). The turnstile basic modification is with straight barrier rods and painted steel body (reference designation T1.1.ВYO.КР). -
Page 8: Instrumentation, Tools And Accessories
Operation Manual 1.4.3 Changing the direction of rotation in the Push&Go turnstile Changing the direction of rotation in the Push&Go turnstile involves turning the one-way 180̊ : 1. Open the locks on the container 2. Remove the cover of the container; 3. -
Page 9: Intended Use
Operation Manual INTENDED USE 2.1. Operational limitations 2.1.1 The product should be operated under the conditions specified in 1.1.3 of this document, while keeping the specifications given in section 1.2. FOLLOWING IS PROHIBITED: 1) TO USE THE TURNSTILE NOT FOR APPOINTMENT (see section 1 "DESCRIPTION AND WORK");... - Page 10 Operation Manual 2.2.3 Installation of the turnstile Fig. 5 - General view of installation of the turnstile "PUSH&GO" in the design position 2.2.4 The sequence of assembly of the major components of the full-height turnstile "PUSH&GO" when the turnstile is delivered by components (See Figure 6): 1) Assembly of access way wall: - Structural component of access way wall to be joined and installed in the design position to mark holes;...
- Page 11 Operation Manual 3) Assembly of the turnstile rotor 3: - A row of the rotor barrier rods (when rotor is delivered in disassembled state) using long Allen wrench and to be fixed with screws; - The turnstile rotor to be installed by aligning enclosure walls 1 on the axis 2; For proper installation rotor to be revolved so that a row of barrier rods bars the turnstile access.
-
Page 12: Maintenance
Operation Manual MAINTENANCE 3.1. General guidelines The turnstile commissioning and subsequent maintenance to be performed only by the staff to be in charge of the turnstile. The turnstile to be installed and operated only by the qualified and instructed in safety staff, being aware of this OM, the turnstile design and principle of operation. - Page 13 Operation Manual CAUTION: During operation turnstile, notice contamination on the surface of the stainless-steel body panels. These spots may appear as orange or brown rust. However, it is important to note that the turnstile is not rusting. These spots are surface contamination caused by iron- containing environmental debris.
-
Page 14: Storage And Transportation
Operation Manual 4. STORAGE AND TRANSPORTATION 4.1 Do not subject the product to sudden shocks or impacts during storage. You need to use transport trolleys to lift or move the product. There should be no corrosive gases and vapors that cause corrosion of the metal in storage rooms. -
Page 15: Annex А.1. Overall And Installation Dimensions Of The Single Full-Height Turnstile "Push&Go" (Y-Rotor) Auia.456
Annex А.1. Overall and installation dimensions of the Single Full-Height Turnstile “PUSH&GO” (Y–rotor) AUIA.456... -
Page 16: Annex А.2. Overall And Installation Dimensions Of The Single Full-Height Turnstile "Push&Go" (Y-Rotor) Auia.456-01
Annex А.2. Overall and installation dimensions of the Single Full-Height Turnstile “PUSH&GO” (Y–rotor) AUIA.456-01... -
Page 17: Service Center
Manufacturer: LLC TiSO-PRODUCTION 14, Promyslova Street, Kyiv, 02088, Ukraine Phone: +38 (044) 291-21-11 Tel./fax: +38 (044) 291-21-02 E-mail: sales@tiso.global www.tiso.global SERVICE CENTER e-mail: service1@tiso.global Our equipment meets the requirements of European standards: EN ISO 12100:2010, EN ISO 14118:2018, EN 60204-1:2018,...
