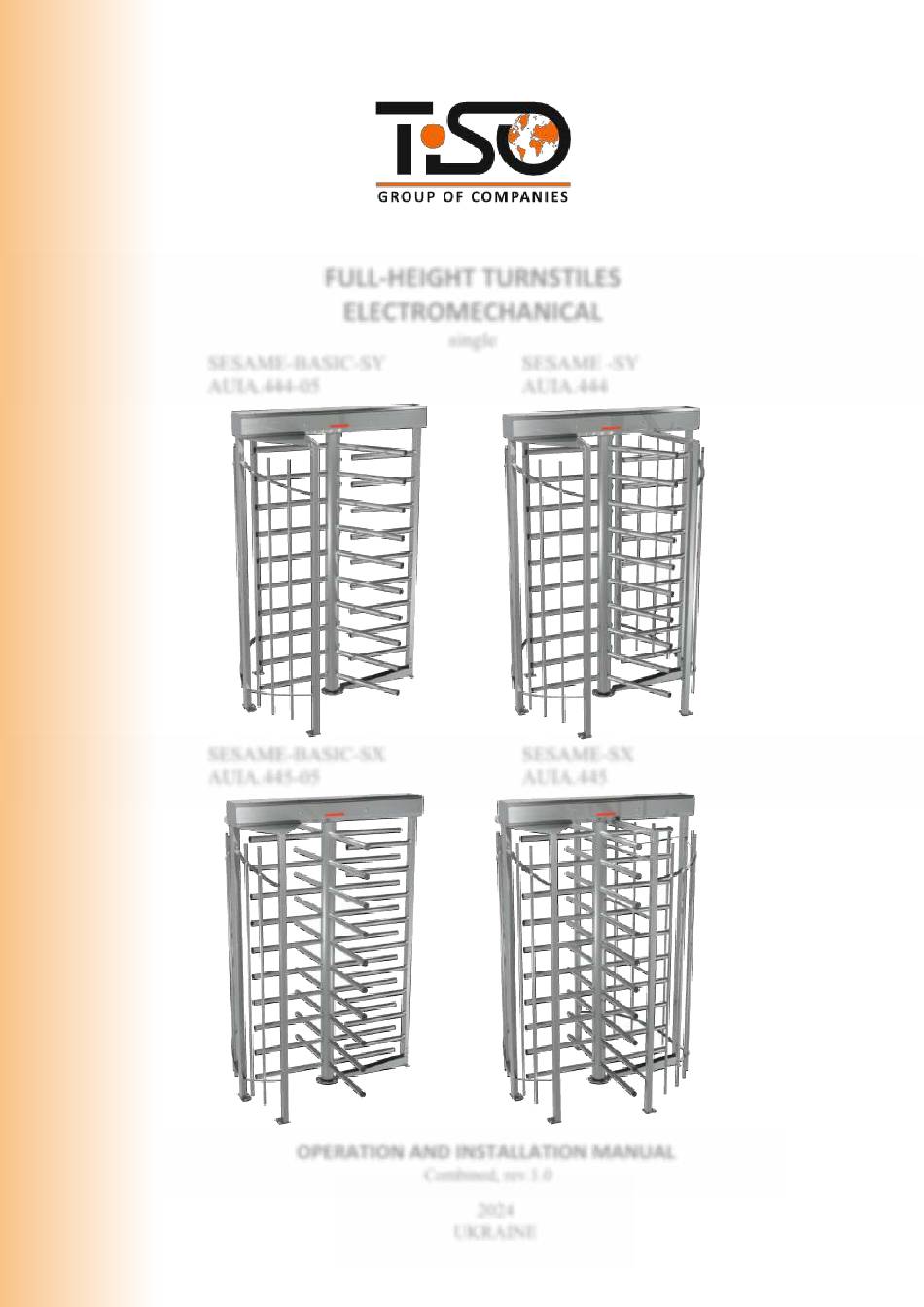

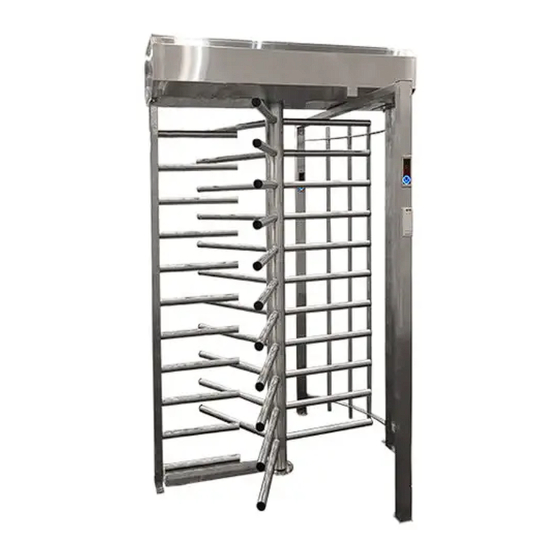

- Page 1 "TiSO-PRODUCTION" LTD FULL-HEIGHT TURNSTILES ELECTROMECHANICAL single SESAME-BASIC-SY SESAME -SY AUIA.444-05 AUIA.444 SESAME-BASIC-SX SESAME-SX AUIA.445-05 AUIA.445 OPERATION AND INSTALLATION MANUAL Combined, rev.1.0 2024 UKRAINE...
-
Page 2: Table Of Contents
Operation Manual CONTENTS INTRODUCTION ..............................3 CUSTOMER WARNINGS ON SAFE OPERATION OF THE TURNSTILE ............4 GENERAL WARNINGS ............................4 1. DESCRIPTION AND OPERATION ........................5 1.1 General Information and Purpose........................5 1.1.1 Turnstile purpose: ............................. 5 1.1.2 The turnstile dimensions and weight correspond..................5 1.1.3 The parameters defining operation conditions .................. -
Page 3: Introduction
T1.1.НYO.HР ТУ У 28.9-32421280-004:2018 is ordered. Description Designation Rotor type Coding «SESAME-SY» AUIA.444 T1.1.НYO._ _ Y-type rotor (120 ° «SESAME-BASIC-SY» AUIA.444-05 T1.1.BYO._ _ «SESAME-SX» AUIA.445 T1.1.НXO. _ _ X-type rotor (90°) T1.1.BXO. _ _ «SESAME-BASIC-SX» AUIA.445-05... -
Page 4: Customer Warnings On Safe Operation Of The Turnstile
Operation Manual CUSTOMER WARNINGS ON SAFE OPERATION OF THE TURNSTILE These warnings are designed to ensure safety during operation of the turnstile to prevent violation of safety features by improper installation or operation. These warnings are aimed at drawing attention of the customer to safety problems. -
Page 5: Description And Operation
Dimensions Model AUIA. Type rotor Max. weight Н В SESAME-SY AUIA.444 Y-type rotor (120°) 1170 SESAME-Basic-SY AUIA.444-05 2155 1420 SESAME-SX AUIA.445 1285 X-type rotor (90°) SESAME-Basic-SX AUIA.445-05 1175 * Weight will depend on the shape of barrier rods and on the material of manufacture 1.1.3 The parameters defining operation conditions according to GOST 15150-69 are specified in Table 2. -
Page 6: Product Components And Scope Of Delivery
Operation Manual Table 4 Parameter name Parameter value Throughput in a single pass mode, not less than 20 person/min. Passage width, no more than 615 mm Mechanism SafeLock-EM (еlectromechanical) Power supply voltage: 100 240 V~ 50/60 Hz - AC mains (primary) - DC power supply (secondary) 12 V Consumed power, no more than... -
Page 7: Design And Operation
Operation Manual 1.4 Design and operation 1.4.1 Turnstile design The design (See Figure 1-2) consists of enclosure wall 1, passage wall 5 and rotor 3. The top connecting bar of design is container 4, inside which the turnstile control mechanism and electrical equipment (power supply and control unit, battery*, controller, heating system* (is not included in the scope of delivery) etc.) are located. -
Page 8: The Control Mechanism Design
Operation Manual 1.4.2 The control mechanism design The control mechanism (See Figure 2) consists of top and bottom plates (1 and 2), on which the design major components are located. On the shaft between the plates ratchet gears 3 are located, which are locked with latches 8. In the interlocking position with ratchet gears the latches are pushed by springs (7 and 8). -
Page 9: The Principle Of Operation Of The Turnstile
Operation Manual The Manufacturer shall deliver the listed above as agreed by the parties under separate contract. Legend: 5. Сontrol panel cable connection terminal 1. Power supply 2. PCB.112.21.20.00 6. Power cable 220V connection terminal 3. Supply switch-on button 7. Place of grounding 4. -
Page 10: Instrumentation, Tools And Accessories
Operation Manual Two LED modules (Fig. 5) can also be built into the container to illuminate the passage area and display the status of the turnstile. Dual mode (DUAL MODE) of aisle lighting is an option and is chosen by the customer: LED lighting –... -
Page 11: Description And Operation Of Controller As An Integral Component Of The Turnstile
Operation Manual 1.6. Description and operation of controller as an integral component of the turnstile 1.6.1 Turnstile controller РСВ.112.21.20.01 The controller РСВ.112.21.20.01 is designed for control of the full-height turnstile operation both under control of authorized access system (hereinafter referred to as AAS) and independently. It provides the required logic of the turnstile operation in various operating modes as well as compliance of control commands from peripherals and generation of report signals. - Page 12 Operation Manual Application of jumpers on the controller board PCB.112.21.20.01: CONTROLLER PCB 112.21.20.01 Table 5 - Application of jumpers INP 1 № Description State State value INP 2 INP 3 OPTO 1 OPTO 2 INP 4 Turnstile type OPTO 3 INP 5 Full height /Rotary SGN 1...
-
Page 13: Technical Features
Operation Manual 1.6.2 Technical features The controller specifications are given in Table 6. Table 6 Parameter name Value of the parameter Number of inputs for receiving control commands Number of signal outputs Type of inputs logic Type of outputs open collector (3 ... - Page 14 Operation Manual 1) First alternative: If within active status of "TO BE OPENED /В" (“INP4”/“INP5”) or during delay of WAITING FOR START OF ACCESS rotation of rotor is not started, then controller is reset to ”INITIAL STATE”; 2) Second alternative: If in the above mentioned cases rotation of rotor is started, then further behavior of controller depends on angle of rotor rotation.
- Page 15 Operation Manual “PANIC” FUNCTION The turnstile is switched to "PANIC" state: • After keeping active state on input (“INP5” "PANIC") more than 1,5 sec; • After sending "PANIC" command by control panel (command is sent after "PANIC" button is hold more than 7 sec). After activation of "PANIC" function the barrier rod, which is in horizontal position, will be lowered, output (“OUT7”...
- Page 16 Operation Manual Continued Table 7 ХТ3/1 It is used for acquisition of data OPTO1 ENTRY 1) logic «0» (0 2,2) V; ХТ3/2 about the turnstile OPTO2 ENTRY 2) logic «1» (3 5) V; rotor position ХТ3/3 OPTO3 ENTRY 3) active signal level ХТ3/4 (factory setting) -...
-
Page 17: Intended Use
Operation Manual 2. INTENDED USE 2.1 Operational limitations 2.1.1 The product should be operated under the conditions specified in 1.1.3 of this document, while keeping the specifications given in section 1.2. FOLLOWING IS PROHIBITED: 1) TO USE THE TURNSTILE NOT FOR APPOINTMENT (see section 1 "DESCRIPTION AND WORK");... -
Page 18: Installation Of The Turnstile
Operation Manual The installation site surface should be plain, hard and without defects (corrugations, overlaps etc.);and provide vertical position plus or minus 1°; Thickness of concrete blinding coat under site to be at least 150 mm. Concrete blinding coat along the perimeter should overhang the project turnstile for 100 mm. WARNING The turnstile shall be fixed by means of Redibolt (with jacket and screw) included in the scope of delivery. - Page 19 Operation Manual *.the places of cable entry are recommended Fig.9 - General view of installation of the turnstile «SESAME-SX» in the design position WARNING: The sides of the cable entry are chosen by the customer and the installer at the installation site.
-
Page 20: The Sequence Of Assembly Of The Major Components Of The Full-Height Turnstile
Operation Manual 2.2.3 The sequence of assembly of the major components of the full-height turnstile The sequence of assembly of the major components of the full-height turnstile "SESAME" when the turnstile is delivered by components (See Figure 10-15): 1) Assembly of access way wall: - Connect the structural elements of the access wall a , the passage with the help of screws, using a hex - Structural component of passage way wall to be joined and installed in the design position to mark holes;... - Page 21 Operation Manual 2) Assembly of enclosure wall with hackle (Fig.11): - Connect the structural elements of the enclosure wall a or f the passage with the help of screws, using a hex key; - Structural component of enclosure wall to be joined and installed in the design position to mark holes; - The holes to be drilled according to the surface marking in compliance with diameter of the enclosed anchors for attachment of the "SESAME-S"...
- Page 22 Operation Manual 3) Assembly of the turnstile rotor (Fig.12): A row of the rotor barrier rods (when rotor is delivered in disassembled state) using elongated hex key and to be fixed with screws, install plugs; Install the turnstile rotor on the base of the enclouse wall For proper installation rotor to be revolved so that a row of barrier rods bars the turnstile access i.e.
- Page 23 Operation Manual 4) Installation of the turnstile container: Для монтажу контейнера слід використовувати набір шестигранників, а для зручності встановлення – драбину (Рис.13). Fig.13 – Рекомендації до монтажу контейнера To install the container, first open the container door (Fig. 14). 1. Use the set of two keys to unlock the container door 2.
- Page 24 Operation Manual 6. Fasten the container (Fig. 16) with screws to the enclosure wall and passage way wall Pull the necessary cables through racks before screwing Detailed fastening of turnstile parts with a container: a) Connect the rotor to the container, positioning the fingers of the rotor in the mechanism.Control mechanism and rotor to be joined by means of half-coupling;...
- Page 25 Operation Manual e) Install passage canopies (consisting of two parts):on top of the access wall: - Fasten (e ) one canopy with two semicircular screws M6x12 to the rack of the access wall on one side; - Fasten (e ) second canopy with two semicircular screws M6x12 to the rack of the access wall on the other side;...
-
Page 26: Installation Of Proximity Card Reader Upon The Availability Of Access Control System
Operation Manual 2.2.4 Installation of proximity card reader upon the availability of Access Control System (ACS) Holes (2) to be made in the access way wall butt (See Figure 18) next to LED display according to the card reader (1) size chosen by the customer. Cable to be pulled to container, card reader (1) to be fixed on the rack and connected to electronic control unit;... - Page 27 Operation Manual b) Control panel cable to be connected to terminals: - P (Power) - control panel power supply +12V; - G (GND) - common wire of control panel; - A (RSA) – RSA wire of control panel link - B (RSB) - RSB wire of control panel link; с) The turnstile performance to be checked.
-
Page 28: Preparation For Use
Operation Manual 2.3 Preparation for use 2.3.1 Commissioning guide lines Prior to the turnstile energization: 1) Make sure of proper connection and good condition of all connecting cables; 2) Clear the turnstile barrier rod turning area from foreign particles; 3) Verify by keys that locks of the turnstile mechanical release are closed (turnstile is mechanically locked. When mains cable of power supply unit is connected to network of the turnstile control mechanism solenoids are energized;... - Page 29 Operation Manual Continuation of table 8 7. Single SINGLE button to be pushed Green arrow of Green lighting in the Make sure that rotor access in one for access in chosen direction authorized single passage of single can be turned to 120º direction and ("A"...
-
Page 30: Contingency Actions
Operation Manual 2.4 Contingency actions In case of emergency people evacuation (in case of fire, natural disasters, etc.) and providing free pass, the turnstile must be unlocked: from control panel by sending the command (holding the button «PANIC» more than 7 s); “INP1”... - Page 31 Operation Manual In case of an emergency power outage are automatic operation mode and mechanical opening of locks for the organization of free passage. The different combinations of default blocking mechanisms on turnstiles described in the table below: Table 9 - Modes of operation in the event of an emergency power off 1.
- Page 32 Operation Manual 2. NC/NO (optional) - urnstile type by default blocking Default emergency mode in case of power off: Automatically ENTRY – locked (NC fail-secure) EXIT – unlocked (NO fail-safe) Mechanically Free ENTRY/EXIT in both directions 3. NO/NC (optional) - urnstile type by default blocking Default emergency mode in case of power off: Automatically...
-
Page 33: Maintenance
Operation Manual 4. NO/NO (optional) - urnstile type by default blocking Default emergency mode in case of power off: Automatically ENTRY/EXIT - unlocked – NO/NO - fail-safe 3. MAINTENANCE 3.1 General guidelines The turnstile commissioning and subsequent maintenance to be performed only by the staff to be in charge of the turnstile. -
Page 34: Current Repair
Operation Manual Table 10 Name of means Manufacturer Company Manufacturer country 3М Spray for cleaning stainless steel products Stainless Group of European steel cleaner Polich companies Cleaning fluid WellDone Well Done Hungary Emulsion SANO MULTI METAL SANO China Foam Dr.BECKMANN Dr.Beckmann Germany Emulsion Reinex Edelstahlreiniger... -
Page 35: Checking The Product After Repair
Operation Manual Table 12 Malfunction Cause of malfunction Action Check the power supply switch No AC power supplied to unit. The turnstile does not Restore AC power. Loose power cable work when power on. Connect power cable. Faulty power supply unit Replace power supply unit Rotor(arms) is free Damaged wires... -
Page 36: Storage And Transportation
Operation Manual STORAGE AND TRANSPORTATION 5.1 Do not subject the product to sudden shocks or impacts during storage. You need to use transport trolleys to lift or move the product. There should be no corrosive gases and vapors that cause corrosion of the metal in storage rooms,. -
Page 37: Annex А.1. Overall And Installation Dimensions Of The Single Full-Height Turnstile "Sesame-Sy" Auia.444
Annex А.1. Overall and installation dimensions of the Single Full-Height Turnstile «Sesame-SY» AUIA.444... -
Page 38: Annex А.2. Overall And Installation Dimensions Of The Full-Height Turnstile "Sesame Basic-Sy" Auia.444-05
Annex А.2. Overall and installation dimensions of the Full-Height Turnstile «Sesame Basic-SY» AUIA.444-05... -
Page 39: Annex А.3. Overall And Installation Dimensions Of The Full-Height Turnstile "Sesame-Sx" Auia.445
Annex А.3. Overall and installation dimensions of the Full-Height Turnstile «Sesame-SX» AUIA.445... -
Page 40: Annex А.4. Overall And Installation Dimensions Of The Full-Height Turnstile "Sesame Basic-Sx" Auia.445-05
Annex А.4. Overall and installation dimensions of the Full-Height Turnstile «Sesame Basic-SX» AUIA.445-05... -
Page 41: Annex B. Control Panel And Connection Diagram
Annex B. Control panel and connection diagram 1 – control panel body; 5 – "FREE ACCESS" mode control button 2 – "SINGLE ACCESS" control button 6 – "PANIC" mode control button mode control button 3 – front plate; 7 – access direction LED display; 4 –... -
Page 42: Annex C. Wiring Diagram Of The Turnstile
Annex C. Wiring Diagram of the turnstile Shematic principal control panel Sesame-SY/SX ( mechanismAUIA440 Data: 31.01.2024 Rev 1.5 Control Mechanism RD440 X/Y Control Panel Hl1 LED Module “A” Hl2 LED Module “ ” A +1 2 V +1 2 V +1 2 V +1 2 V +1 2 V... -
Page 43: Annex D.1. Wiring Diagram Of The Turnstile Connection To Access Control System (Acs) In Pulse Mode
Annex D.1. Wiring diagram of the turnstile connection to access control system (ACS) in pulse mode OPTO XT3.1 XT1.1 RESET OPTO1 Relay 1 Relay 2 XT2.1 Door contact 1 XT .1 Door contact 2 М + GB XT5.1 inp1 - "PANIC" inp2 - "TO BE OPENED A"... -
Page 44: Annex D.2. Wiring Diagram Of The Turnstile Connection To Access Control System (Acs) In Hold Mode
Annex D.2. Wiring diagram of the turnstile connection to access control system (ACS) in hold mode... -
Page 45: Annex D.3. Wiring Diagram Of The Turnstile Connection To Fire Alarm System (Fas)
Annex D.3. Wiring diagram of the turnstile connection to fire alarm system (FAS) OPTO XT3.1 XT1.1 RESET OPTO1 XT2.1 XT .1 М + GB XT5.1 inp1 - "PANIC" inp2 - "TO BE OPENED A" in pulse mode. When command is issued entry is activated for 5 sec. inp3 - "TO BE OPENED B"... -
Page 46: Annex D.4. Wiring Diagram Of The Turnstiles Connection To Fire Alarm System (Fas)
Annex D.4. Wiring diagram of the turnstiles connection to fire alarm system (FAS) OPTO XT3.1 XT1.1 RESET OPTO1 XT2.1 XT .1 М + GB XT5.1 OPTO XT3.1 XT1.1 RESET OPTO1 XT2.1 XT .1 М + GB XT5.1... -
Page 47: Annex D.5. Wiring Diagram Of The Turnstile Connection To Control Panel
Annex D.5. Wiring diagram of the turnstile connection to control panel OPTO XT1.1 XT3.1 RESET OPTO1 XT2.1 XT .1 М + GB XT5.1... - Page 48 Manufacturer: LLC TiSO-PRODUCTION 14, Promyslova Street, Kyiv, 02088, Ukraine Phone: +38 (044) 291-21-11 Tel./fax: +38 (044) 291-21-02 E-mail: sales@tiso.global www.tiso.global SERVICE CENTER e-mail: service1@tiso.global Our equipment meets the requirements of European standards: EN ISO 12100:2010, EN ISO 14118:2018, EN 60204-1:2018, EN ISO 13857:2019,EN 61000-6-1:2007, EN 61000-6-3:2007/A1:2011/AC:2012 and meets the requirements of the following EU Directives: 2014/30/EU;...
