AN3759

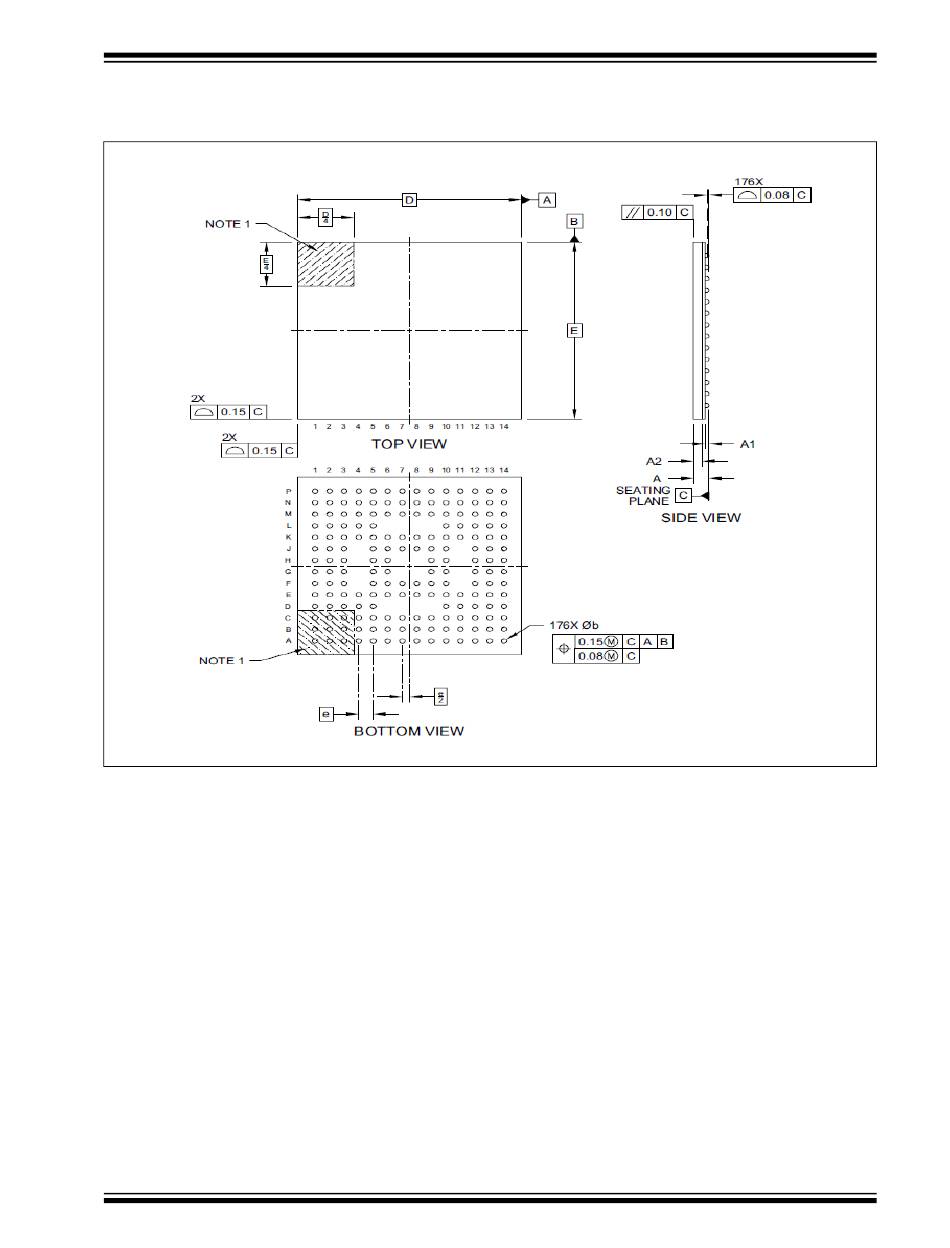

FIGURE 1-4:
LAND PATTERN DIMENSIONS, 176-WFBGA/LJ, 0.65MM BALL PITCH
2021 Microchip Technology Inc. and its subsidiaries
DS00003759B-page 7
