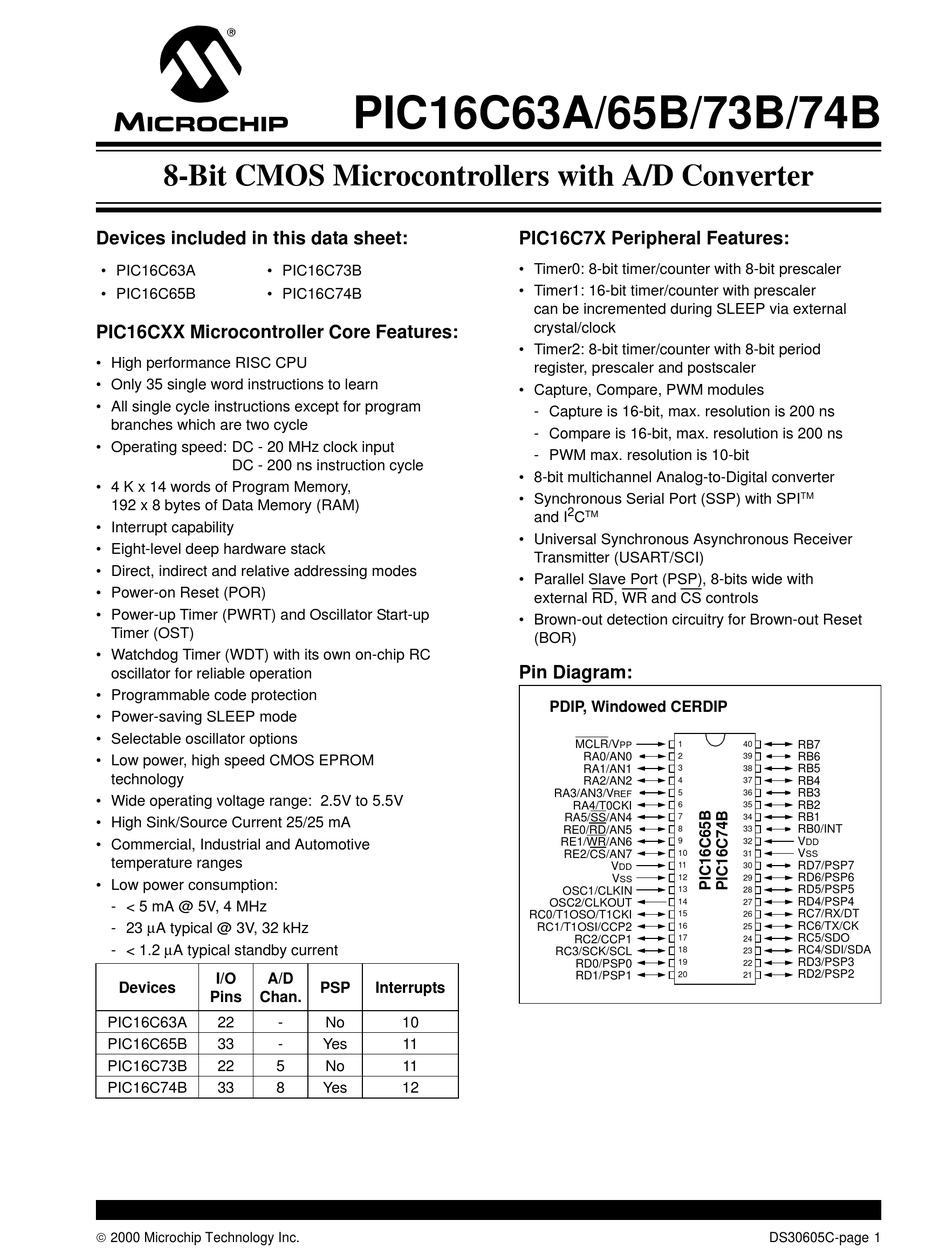

8-Bit CMOS Microcontrollers with A/D Converter
Devices included in this data sheet:
• PIC16C63A
• PIC16C73B
• PIC16C65B
• PIC16C74B
PIC16CXX Microcontroller Core Features:
• High performance RISC CPU
• Only 35 single word instructions to learn
• All single cycle instructions except for program
branches which are two cycle
• Operating speed: DC - 20 MHz clock input
DC - 200 ns instruction cycle
• 4 K x 14 words of Program Memory,
192 x 8 bytes of Data Memory (RAM)
• Interrupt capability
• Eight-level deep hardware stack
• Direct, indirect and relative addressing modes
• Power-on Reset (POR)
• Power-up Timer (PWRT) and Oscillator Start-up
Timer (OST)
• Watchdog Timer (WDT) with its own on-chip RC
oscillator for reliable operation
• Programmable code protection
• Power-saving SLEEP mode
• Selectable oscillator options
• Low power, high speed CMOS EPROM
technology
• Wide operating voltage range: 2.5V to 5.5V
• High Sink/Source Current 25/25 mA
• Commercial, Industrial and Automotive
temperature ranges
• Low power consumption:
- < 5 mA @ 5V, 4 MHz
- 23 µA typical @ 3V, 32 kHz
- < 1.2 µA typical standby current
I/O
A/D
Devices
Pins
Chan.
PIC16C63A
22
PIC16C65B
33
PIC16C73B
22
PIC16C74B
33
 2000 Microchip Technology Inc.
PIC16C63A/65B/73B/74B
PSP
Interrupts
-
No
10
-
Yes
11
5
No
11
8
Yes
12
PIC16C7X Peripheral Features:
• Timer0: 8-bit timer/counter with 8-bit prescaler
• Timer1: 16-bit timer/counter with prescaler
can be incremented during SLEEP via external
crystal/clock
• Timer2: 8-bit timer/counter with 8-bit period
register, prescaler and postscaler
• Capture, Compare, PWM modules
- Capture is 16-bit, max. resolution is 200 ns
- Compare is 16-bit, max. resolution is 200 ns
- PWM max. resolution is 10-bit
• 8-bit multichannel Analog-to-Digital converter
• Synchronous Serial Port (SSP) with SPI
2
TM
and I
C
• Universal Synchronous Asynchronous Receiver
Transmitter (USART/SCI)
• Parallel Slave Port (PSP), 8-bits wide with
external RD, WR and CS controls
• Brown-out detection circuitry for Brown-out Reset
(BOR)
Pin Diagram:
PDIP, Windowed CERDIP
MCLR/V
PP
1
RA0/AN0
2
RA1/AN1
3
RA2/AN2
4
RA3/AN3/V
5
REF
RA4/T0CKI
6
RA5/SS/AN4
7
RE0/RD/AN5
8
RE1/WR/AN6
9
RE2/CS/AN7
10
V
11
DD
V
12
SS
OSC1/CLKIN
13
OSC2/CLKOUT
14
RC0/T1OSO/T1CKI
15
RC1/T1OSI/CCP2
16
RC2/CCP1
17
RC3/SCK/SCL
18
RD0/PSP0
19
RD1/PSP1
20
TM
RB7
40
RB6
39
RB5
38
RB4
37
RB3
36
RB2
35
RB1
34
RB0/INT
33
V
32
DD
V
31
SS
RD7/PSP7
30
RD6/PSP6
29
RD5/PSP5
28
RD4/PSP4
27
RC7/RX/DT
26
RC6/TX/CK
25
RC5/SDO
24
RC4/SDI/SDA
23
RD3/PSP3
22
RD2/PSP2
21
DS30605C-page 1
