AN3759
Optionally, put in hardware Resistor-Capacitor (RC) circuitry to force the JTAG_RST# signal low for at least 5.00 msec.
For example:
1. Use a MEC1721/MEC1723 EVB with external power supply which shows the rise time less than 100µs.
2. RC = 100K ohms resistor pullup to VTR and 1µF capacitor.
3. The rising timing of VTR related to the JTAG_RST# signal is shown in
reverse of the rising time.
Note: The RC values need to be changed in order to compensate for the power supply time to ensure a 5.00
msec reset pulse, measured from VTR = 3.3V to JTAG_RST# = 0.8V.

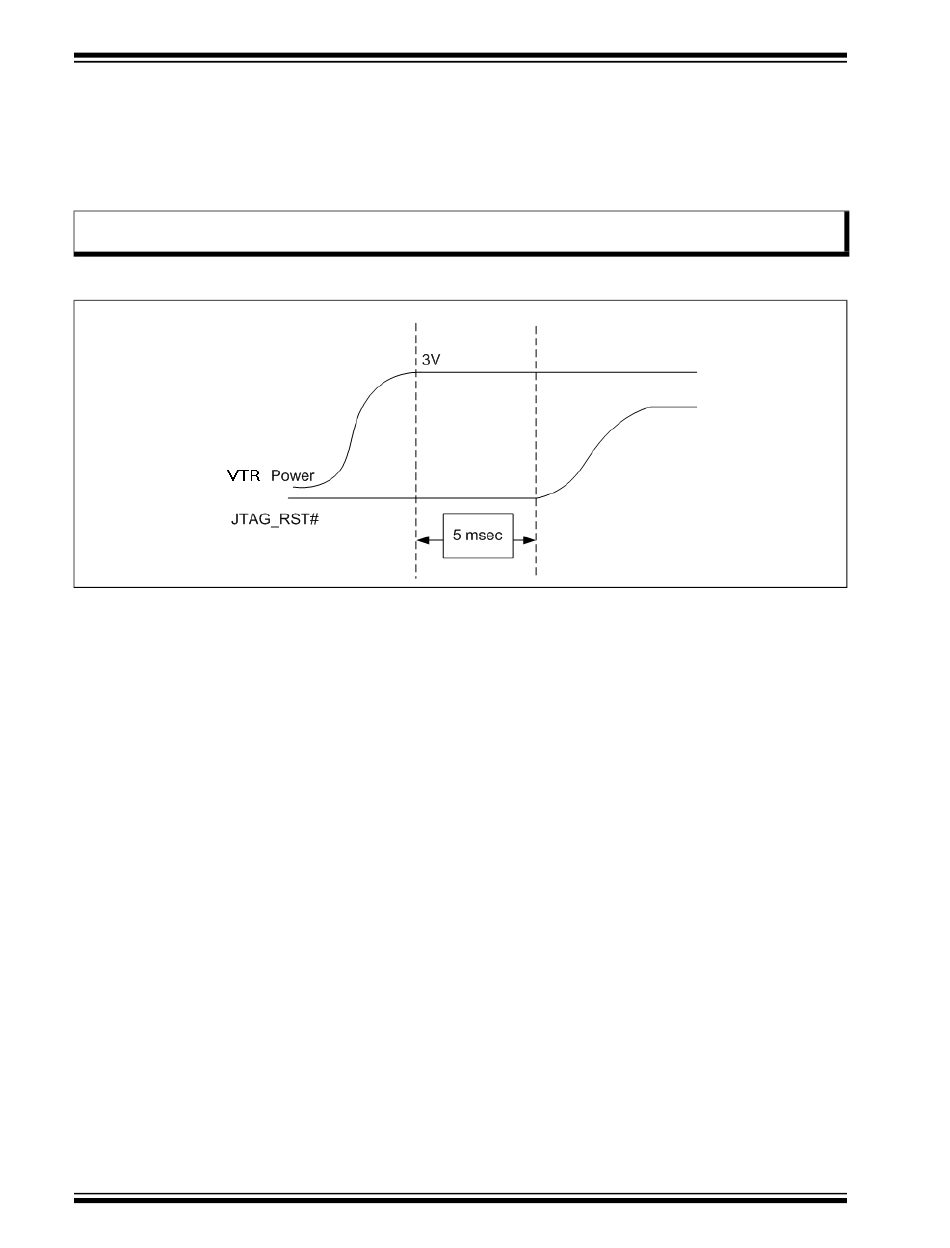

FIGURE 3-4: VTR VS. JTAG RISING TIME
DS00003759B-page 28
Figure 3-4; the falling time should be a
