28v synchronous buck controllers featuring adaptive on-time control

Advertisement

Quick Links

Featuring Adaptive ON-Time Control
Features
• Hyper Speed Control Architecture Enables:
- High delta V operation (V
= 0.6V)
- Any Capacitor™ stable
• 4.5V to 28V Input Voltage
• Adjustable Output Voltage from 0.6V to 24V
• 200 kHz to 750 kHz Programmable Switching
Frequency
®
• HyperLight Load
(MIC2125)
®
• Hyper Speed Control
(MIC2126)
• Enable Input and Power Good Output
• Built-in 5V Regulator for Single-Supply Operation
• Programmable current limit and "hiccup" mode
short-circuit protection
• 7 ms internal soft-start, internal compensation,
and thermal shutdown
• Supports Safe Start-Up into a Prebiased Output
• –40°C to +125°C Junction Temperature Range
• Available in 16-pin, 3 mm × 3 mm QFN Package
Applications
• Networking/Telecom Equipment
• Base Stations, Servers
• Distributed Power Systems
• Industrial Power Supplies
 2015 Microchip Technology Inc.
28V Synchronous Buck Controllers
= 28V and V
IN
OUT
MIC2125/6
General Description
The MIC2125 and MIC2126 are constant-frequency
synchronous buck controllers featuring a unique
adaptive ON-time control architecture. The MIC2125/6
operate over an input voltage range from 4.5V to 28V
and can be used to supply load current up to 25A. The
output voltage is adjustable down to 0.6V with a
guaranteed accuracy of ±1%. The device operates with
programmable switching frequency from 200 kHz to
750 kHz.
®
HyperLight Load
architecture provides the same high
efficiency and ultra-fast transient response as the
®
Hyper Speed Control
architecture under medium to
heavy loads. It also maintains high efficiency under
light load conditions by transitioning to variable
frequency, discontinuous conduction mode operation.
The MIC2125/6 offer a full suite of features to ensure
protection of the IC during fault conditions. These
include undervoltage lockout to ensure proper
operation
under
power-sag
soft-start to reduce inrush current, "hiccup" mode
short-circuit protection, and thermal shutdown.

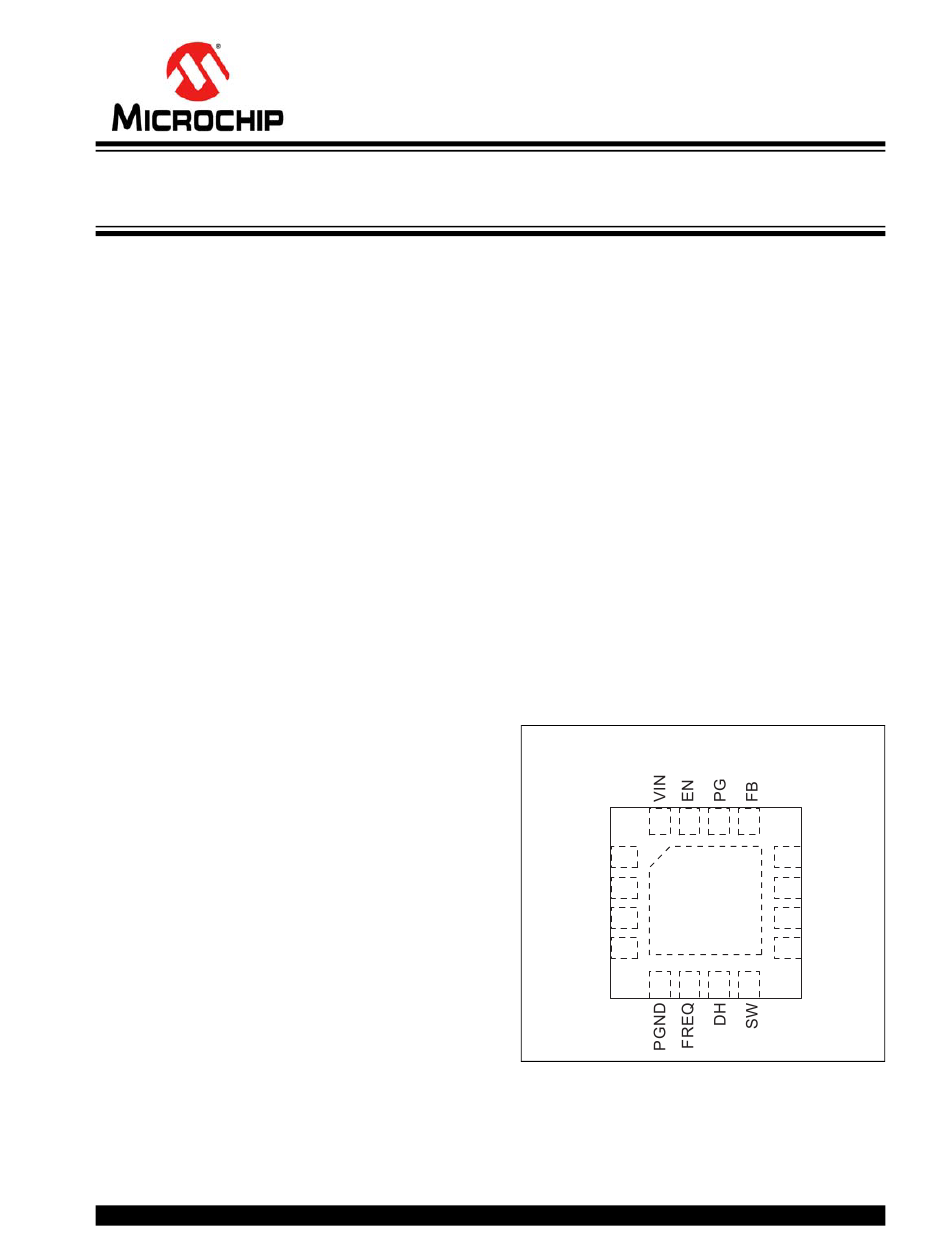

Package Type
MIC2125/6
16-Pin 3 mm x 3 mm QFN (ML)
16
15
VDD
1
PVDD
2
EP 17
ILIM
3
DL
4
5
6
conditions,
internal
14
13
AGND
12
NC
11
10
OVP
BST
9
7
8
DS20005459B-page 1
