Summary of Contents for Microchip Technology MCP8063
Page 1

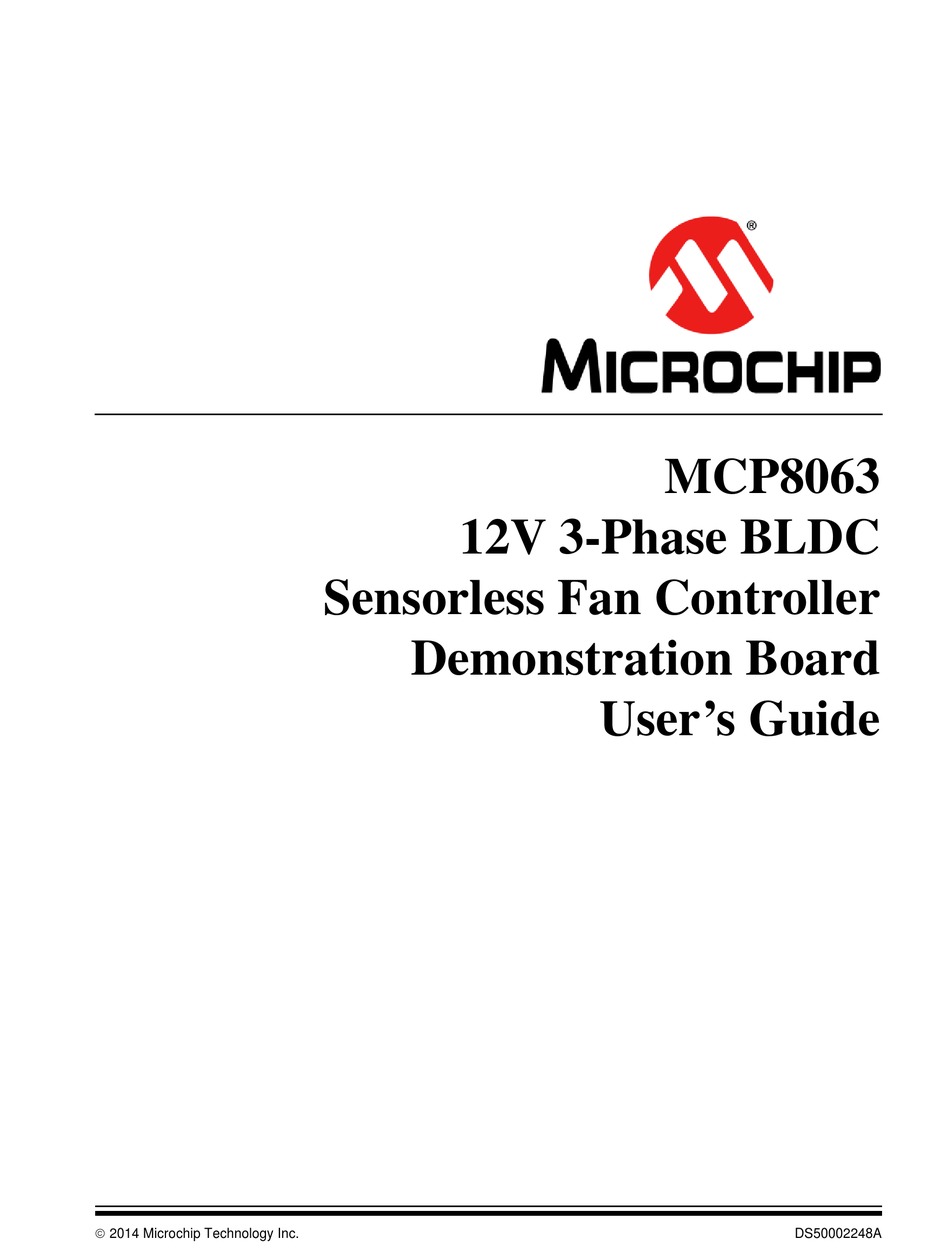

MCP8063 12V 3-Phase BLDC Sensorless Fan Controller Demonstration Board User’s Guide 2014 Microchip Technology Inc. DS50002248A...
Page 2
Total Endurance, TSHARC, UniWinDriver, WiperLock, ZENA and Z-Scale are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries. SQTP is a service mark of Microchip Technology Incorporated in the U.S.A. GestIC and ULPP are registered trademarks of Microchip Technology Germany II GmbH &...
Page 3
Object of Declaration: MCP8063 12V 3-Phase BLDC Sensorless Fan Controller Demonstration Board User’s Guide 2014 Microchip Technology Inc. DS50002248A-page 3...
• Customer Support • Document Revision History DOCUMENT LAYOUT This document describes how to use the MCP8063 12V 3-Phase BLDC Sensorless Fan Controller Demonstration Board as an evaluation tool to debug on a target motor system. The manual layout is as follows: •...
MCP8063 12V 3-Phase BLDC Sensorless Fan Controller Demonstration Board User’s Guide CONVENTIONS USED IN THIS GUIDE This manual uses the following documentation conventions: DOCUMENTATION CONVENTIONS Description Represents Examples Arial font: ® Italic characters Referenced books MPLAB IDE User’s Guide Emphasized text ...is the only compiler...
Preface RECOMMENDED READING This user's guide describes how to use the MCP8063 12V 3-Phase BLDC Sensorless Fan Controller Demonstration Board. Another useful document is listed below. The following Microchip document is available and recommended as a supplemental reference resource. • MCP8063 Data Sheet – “3-Phase Brushless DC Sinusoidal Sensorless Motor Driver”...
The MCP8063 12V 3-Phase BLDC Sensorless Fan Controller Demonstration Board allows the control and monitoring of Microchip 12V fan driver devices, such as the MCP8063 or MTD6501, using a PC software connected to the MCP8063 12V 3-Phase BLDC Sensorless Fan Controller Demonstration Board via a USB connection.
DEMONSTRATION BOARD USER’S GUIDE Chapter 2. Installation and Operation GETTING STARTED The following sections describe how to use the MCP8063 12V 3-Phase BLDC Sensorless Fan Controller Demonstration Board. 2.1.1 Software Installation Download the MCP8063 12V 3-Phase BLDC Sensorless Fan Controller Demonstration Board software installer from the board web page.
Page 14
3. Start the MCP8063 12V 3-Phase BLDC Sensorless Fan Controller Demonstration Board software. 4. Plug the mini-USB cable from the USB port of a computer to the MCP8063 12V 3-Phase BLDC Sensorless Fan Controller Demonstration Board connector. The ON LED should light up.
MCP8063 12V 3-PHASE BLDC SENSORLESS FAN CONTROLLER DEMONSTRATION BOARD SOFTWARE DESCRIPTION The MCP8063 12V 3-Phase BLDC Sensorless Fan Controller Demonstration Board software window contains three tabs. The first tab is for controlling and monitoring the MCP8063 12V 3-Phase BLDC Sensorless Fan Controller Demonstration Board, the second tab is the Measurement Settings tab and the third tab is the Measurement Results tab.
Page 16
The PWM Pin box provides a slide bar to set the PWM duty cycle on the fan driver PWM pin. The gauge below indicates the PWM duty cycle currently applied by the MCP8063 12V 3-Phase BLDC Sensorless Fan Controller Demonstration Board.
Page 17
Measurement Settings tab. See the sections below for further details. Legend: Measurement Settings group box Startup measurement PWM Change Measurement group box Speed Curve and Stability Measurement group box Measurement Control group box FIGURE 2-3: GUI - Measurement Settings Tab. 2014 Microchip Technology Inc. DS50002248A-page 17...
Page 18
MCP8063 12V 3-Phase BLDC Sensorless Fan Controller Demonstration Board User’s Guide 2.2.2.1 MEASUREMENT SETTINGS The Measurement Settings Group box is used to specify the measurement corners required. Once the automatic measurement starts (see 2.2.2.5 “Measurement Control”), all specified corners will be tested for all selected tests. The list below details the available corner settings: •...
Page 19
The Measurement Results tab is used to check the results of the test and manage where the data will be stored. Figure 2-4 shows the Measurement Results sub-tab: Legend: Measurement Results group box Measurement Results table FIGURE 2-4: GUI - Measurement Results Tab. 2014 Microchip Technology Inc. DS50002248A-page 19...
Page 20
MCP8063 12V 3-Phase BLDC Sensorless Fan Controller Demonstration Board User’s Guide 2.2.3.1 MEASUREMENT RESULTS This group box contains three buttons that allow the user to control the result data storage: • Select location for result file – Opens a window allowing the user to specify where the result file will be stored.
DEMONSTRATION BOARD USER’S GUIDE Appendix A. Schematics and Layouts INTRODUCTION This appendix contains the following schematics and layouts for the MCP8063 12V 3-Phase BLDC Sensorless Fan Controller Demonstration Board: • Board – Schematic • Board – Top Silk • Board – Top Copper and Silk •...
Page 30
MCP8063 12V 3-Phase BLDC Sensorless Fan Controller Demonstration Board User’s Guide TABLE B-1: BILL OF MATERIALS (BOM) (CONTINUED) Reference Description Manufacturer Part Number IC reg. LDO 3.3V 0.3A 5-lead Microchip Technology MCP1824T-3302E/OT SOT-23 Inc. IC ADC 18 bit 3.75 SPS 1 ch. 6-lead...
Page 31
Bill of Materials NOTES: 2014 Microchip Technology Inc. DS50002248A-page 31...
