Introduction

The PL360 is a multi-protocol modem for the Power Line Communication (PLC) device, implementing a
very flexible architecture and allowing the implementation of standard and customized PLC solutions. It
has been conceived to be bundled with an external Microchip MCU, which downloads the corresponding
PLC firmware and controls the operation of the PL360 device.
The purpose of the PL360 Host Controller is to provide the external microcontroller a way to control the
PL360 device and offer upper layers an easy way to get access to PLC communication.
As an example of the PLC system, the figure below shows the system architecture for G3 protocol based
on a PL360 device being controlled by a SAM4C MCU.

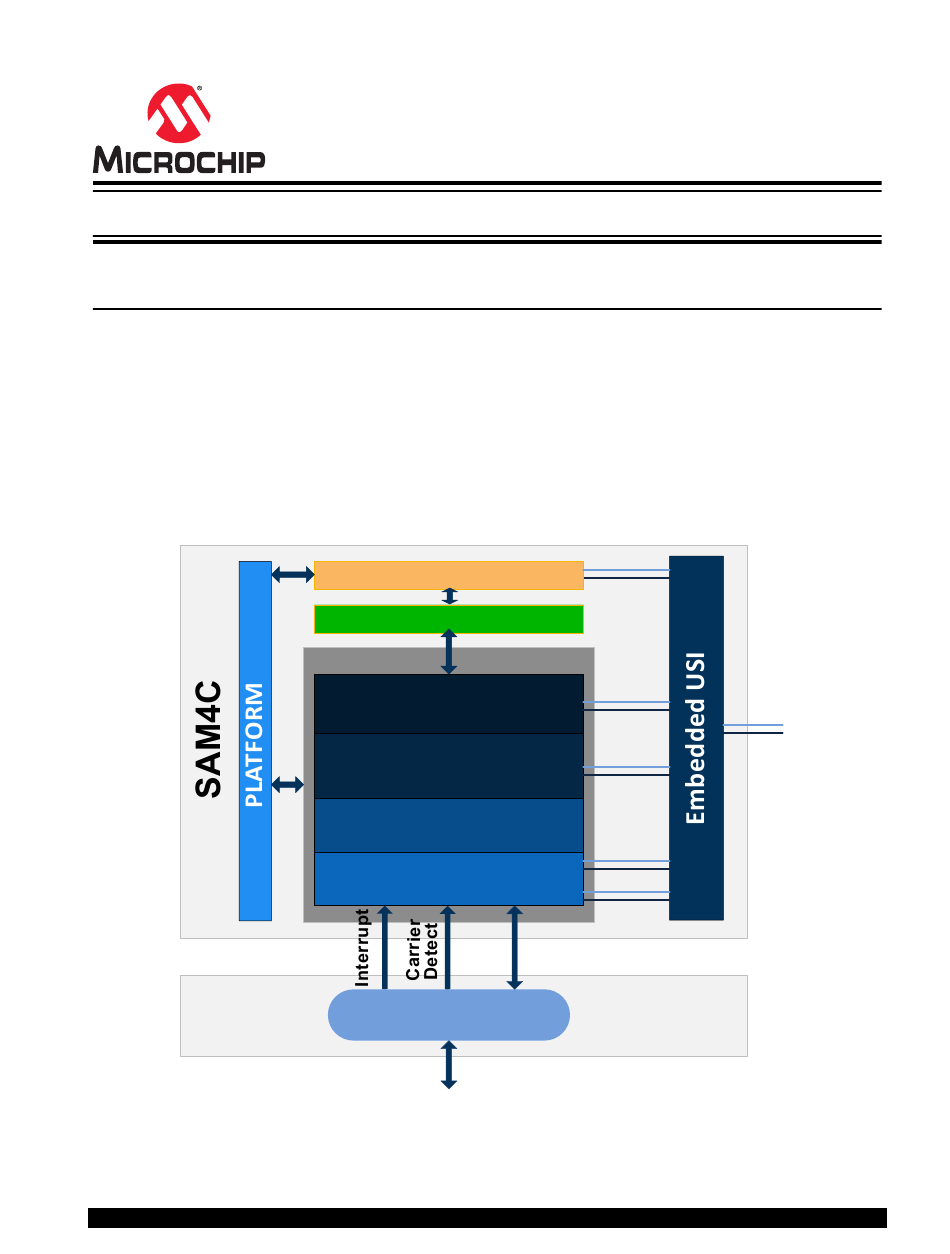

Figure 1. G3 System Architecture
The aim of this document is to clarify and detail the user interface of the PL360 Host Controller.
©
2018 Microchip Technology Inc.
PL360 Host Controller
USER APPLICATION
IPv6 STACK
G3-PLC Stack
Adaptation Layer
( IETF RFC 4944 )
MAC Layer
( IEEE 802.15.4 )
PAL Layer
( ITU-T G.9903 )
Host Controller
PHY + PLC Transceiver
PLC
User Guide
app_if
adp_if
mac_if
phy_if
sniffer_if
SPI
PL360
PL360
50002738B-page 1
