Unpacking
Before you begin using the device, please check the version you got and ensure that the following items are included
in the shipped box:

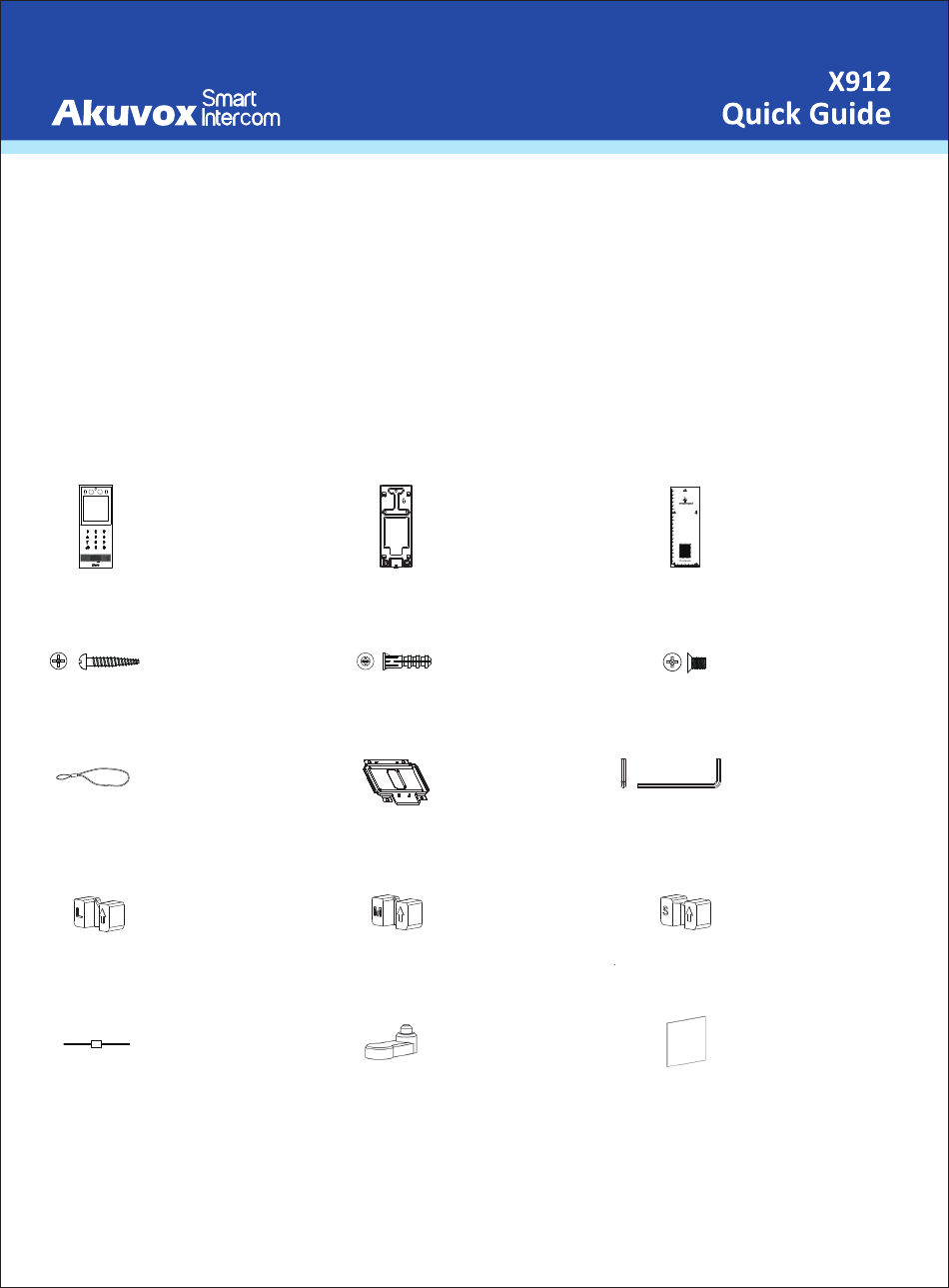

Mainframe Accessories:
X912 x 1
ST4X20 crosshead screw x5
Rope x1
Rubber plug (large) x1
Diode x2
Wall-mounting bracket x1
Plastic wall anchor x5
Wiring cover x1
Rubber plug (medium) x1
Sealing plug x2
1
Wall-mounting bracket x1
M3X4 crosshead screw x4
Allen wrench x1
Rubber plug (small) x1
Cleaning cloth x3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Akuvox X912
Summary of Contents for Akuvox X912
- Page 1 Unpacking Before you begin using the device, please check the version you got and ensure that the following items are included in the shipped box: Mainframe Accessories: X912 x 1 Wall-mounting bracket x1 Wall-mounting bracket x1 ST4X20 crosshead screw x5...
-
Page 2: Product Overview
Product Overview TOF Sensor Main Camera Face-liveness Detection Camera Infrared LED Infrared LED Microphone (LEFT) Microphone (RIGHT) Card Reader Touch Screen Keypad Speaker Installa�on Environment 1.Please do not place device under direct sunlight, it will bring bad effect or be broken with high temperature. 2.If installing the device indoors, please keep device at least 2 meters away from light, and at least 3 meters away from window and door. -
Page 3: Other Tips
4.Be careful that standing up on the area under the device in case of personal injuries cause by hitting the device. 5.Do not attempt to modify, alternate, maintain, or repair device by yourself. Akuvox warranty does not apply to damages caused by anyone who is not representative of Akuvox or an Akuvox authorized service provider. - Page 4 Installa�on Step1: Wall-moun�ng Bracket Installa�on Put the wall-mounting template on wall, Insert the five plastic wall anchors into then according to the wall-mounting the drilled holes. template use a hand drill to make the hole in marked holes (6 mm in diameter and 20mm in depth) .
- Page 5 Choose a suitable size rubber plug (small, Fasten the wiring cover onto the back cover large and medium) to hold down the wires, using four M3X4 crosshead screws. while tearing off the adhesive sticker on the selected rubber plugs and plug them into the back cover in the position as indicated in the drawing.
-
Page 6: Device Removal
Sealing plug Check if the gap surrounding the device is even. Check if a sealing plug is installed in the bottom Push up the device from the device’ s bottom to hole of the device. If not, use a sealing plug to check if the device is securely installed. -
Page 7: Device Wiring
Device Wiring Wire Length & AWG Table Please follow the properly measured wire gauge/length to install device: Applica�on Network Topology (third party) SIP Video Phone Indoor Monitor Network Video Recorder (third party) X912 X912 X912 X912... - Page 8 1.IP address Checking: Press key Icon on the home interface or on the dial pad, then press 2396 and bell Icon to enter the system interface, and press System Information to check the device IP address. X912 uses DHCP by d efault.
