  • Page 1 Version: 1.0 | Date: April.2021...
  • Page 2 About This Manual Thank you for choosing Akuvox X915 series door phone. This manual is intended for the administrators who need to properly configure the door phone. This manual applies to 915.30.101.71 version, and it provides all the configurations for the functions and features of X915 series door phone.
  • Page 3 Introduction of Icons and Symbols Warning:  Always abide by this information in order to prevent the persons from injury. Caution:  Always abide by this information in order to prevent the damages to the device. Note:  Informative information and advice from the efficient use of the device.
  • Page 4 Related Documentation You are advised to refer to the related documents for more technical information via the link below: http://wiki.akuvox.com...

  • Page 5: Table Of Contents

    Table of Contents 1. Product Overview....................1 2. Change Log......................2 3. Model Specification....................3 4. Introduction to Configuration Menu..............5 5. Access the Device....................7 5.1. Access the Device Setting on the device..........7 5.2. Access the Device Setting on the Web Interface........7 6. Language and Time Setting.................. 9 6.1.
  • Page 6 11. Intercom Call Configuration................31 11.1. IP call & IP Call Configuration............... 31 11.1.1. Make IP Calls................31 11.1.2. IP Call Configuration..............32 11.2. SIP Call &SIP Call Configuration............32 11.2.1. SIP Account Registration............32 11.2.1.1. Configure SIP Account on the Device......33 11.2.1.2.
  • Page 7 16.1.1. Configure Public PIN code............60 16.1.2. Configure Private PIN Code on the Device......60 16.1.3. Configure Private PIN Code on the Web Interface....61 16.1.4. Configure Private PIN Access Mode.........63 16.2. Configure RF Card for Door Unlock............64 16.2.1. Configure RF Card on the Web Interface........64 16.2.2.
  • Page 8 21. Firmware Upgrade....................91 22. Backup......................... 92 23. Auto-provisioning via Configuration File............93 23.1. Provisioning Principle................93 23.2. Configuration Files for Auto-provisioning.......... 94 23.3. AutoP Schedule..................94 23.4. PNP Configuration.................. 95 23.5. DHCP Provisioning Configuration............96 23.6. Static Provisioning Configuration............97 24.

  • Page 9: Product Overview

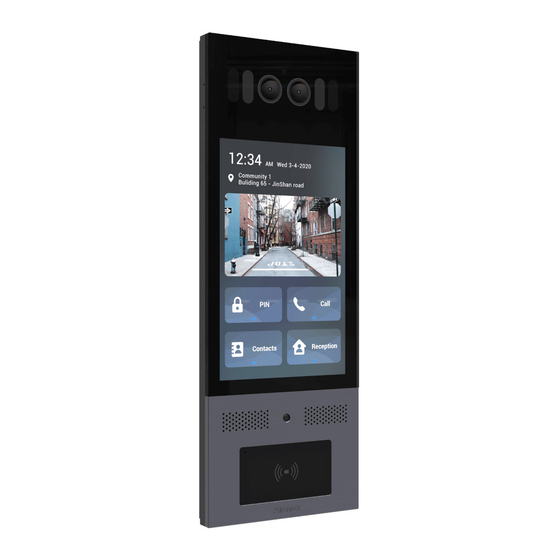

    X915 Admin Guide 1.Product Overview Akuvox X915 series is an Android-based IP video door phone with a touch screen. It incorporates audio and video communications, access control and video surveillance. Its finely tuned Android OS, Cloud and AI based communication technology allows featured customization to better suit your operation habit.

  • Page 10: Change Log

    X915 Admin Guide 2.Change Log The change log will be updated here along with the changes in the new software version. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 11: Model Specification

    Relay In Relay Out Alarm In RS485 √ POE+ Resolution 1280x800 Brightness 650nits Card Reader 13.56MHZ & 125KHZ Wi-Fi Bluetooth √ IP Rating IP65 IK Rating IK10 Temperature Optional detection Face recognition √ External SD card AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 12 Wall Mounting 350x130x41.6mm Dimension Wall Mounting 350x130x53.9mm Dimension POE+ Standy 5.263W Power Consumption POE+ Full Load 18.796W Power Consumption Power Adapter Standby 5.107W Power Consumption Power Adapter Full Load 19.376W Power Consumption Color Option Tarnish Grey AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 13: Introduction To Configuration Menu

     Security: this section is for Password modification. Mode selection:  1. Discovery mode: It is a plug and play configuration mode. Akuvox devices will configure themselves automatically when users power on the devices and connect them to network. It is super time-saving mode,...
  • Page 14 3. Akuvox PC Manager: Distribute all configuration items in batch on a LAN. 4. IP scanner: it is used to search Akuvox device IP addresses on a LAN. 5. FacePro: Manage face data in batch for the door phone on a LAN.

  • Page 15: Access The Device

    X915 Admin Guide 5.Access the Device X915 series door phone system setting can be either accessed on the device directly or on the device web interface. 5.1. Access the Device Setting on the device Before configuring Akuvox X915, please make sure the device is installed correctly and connect a normal network.
  • Page 16 IP scanner application: http://wiki.akuvox.com/doku.php?id=tool:ip_scanner&s[]=ip&s[]= scanner Note  Google Chrome browser is strongly recommended.  The Initial user name and password are admin and please be case-sensitive to the user names and passwords entered. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 17: Language And Time Setting

    Language setting can be configured on the device and on the device web interface that allows you to select or change the language for screen display to your preference. To configure the language display on the device Basic Setting > Language interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 18: Language Setting On The Device Web Interface

    Time setting can be set up on the device and on the device web interface in terms of time zone, date, and time format etc. 6.2.1.Time Setting on the Device To configure the language display on the device Basic Setting > Time interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 19: Time Setting On The Device Web Interface

    And when your time zone is selected, the device will automatically notify the NTP server of its time zone so that the NTP server can synchronize the time zone setting in your device. To configure the configuration on the web AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 20 X915 Admin Guide Setting >Time/Lang > Time interface. Parameter Set-up: NTP Server: enter the NTP server you obtained in the NTP server field.  AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 21: Led&Lcd Setting

    7.1.1.1. Infrared LED Setting on the Device To configure the language display on the device Basic Setting > Display > LED Setting interface. Parameter Set-up:  Auto: select “Auto” if you want the Infrared LED light to be turned on AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 22  Start Time: set the start time for the infrared LED to be turned on.  End Time: set the end time for the infrared LED to be turned off Note:  Start Time and End Time will not be displayed unless you select Specific Time for your LED mode. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 23: Infrared Led Setting On The Web Interface

    To configure the configuration on the web Device > Light > LED Of Swiping Card Area interface. Parameter set-up:  Enabled: Tick the check box if want to enable the card reader LED lighting and vice versa. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 24: Lcd Screen Brightness Setting

    Backlight will be adjusted automatically for the screen back light brightness when “Auto” is selected and vice versa.  Backlight Brightness (day): set the screen backlight brightness during the daytime with the value ranging from (0-255). AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 25: Lcd Screen Brightness Setting On The Device

    On the device, you can set and adjust the screen backlight brightness. configure the language display on the device Basic Setting > Display > LCD Setting interface. 7.1.4. LED White Light Setting White light LED is mainly used to reinforce the lighting for the QR code AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 26 Device > Light > White Light interface. Parameter Set-up:  Mode: select “Auto” or “OFF”. If you select “Auto” then the white light will turn on for 5 minutes for facial recognition and QR code scan. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 27: Screen Display Configuration

    X915 Admin Guide 8.Screen Display Configuration X915 series door phone allows you to enjoy a variety of screen displays to enrich your visual and operational experience through the customized setting to your preference. 8.1.1. Screensaver Configuration 8.1.1.1. Configure Screensaver on the Device Await screen is mainly a function for the screen protection.

  • Page 28: Configure Screensaver On The Web Interface

    To configure the configuration on the web Device > LCD > Standby Interface Display interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 29: Upload Screensaver

    You can upload screen saver pictures separately or in batch to the device and to the device web interface for publicity purpose or for a greater visual experience. To configure the configuration on the web Device > LCD > Upload ScreenSaver interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 30: Upload Device Booting Image

    ID order occurred. 8.1.3.Upload Device Booting Image You can upload the booting image to be displayed during the device’s booting process if needed. To configure the configuration on the web Device > Key/Display > Picture/File Import interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 31: Home Screen Configuration

     Name: enter a new name to replace the original type of name, but it does not change the attribute of the type. Note:  Currently, tab icon selection can only be applicable to the Speed Dial Type. Volume and Tone Configuration AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 32: Volume And Tone Configuration

    You can adjust the microphone volume, speaker volume, keypad volume, and AD volume on the device. To configure the language display on the device Basic Setting > Volume interface. Parameter Set-up:  Mic Volume: adjust the microphone volume according to your need. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 33: Configure Volume On The Web Interface

    The default volume is “8”.  Mic Volume: set the mic volume from 0-15 according to your need. The default volume is “8”.  Enabled: tick off the check box if you allow the adjustment to be made on AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 34: Upload Open-Door Tone

    9.1.2.Upload Open-door Tone You can not only enable or disable the Open-Door Tone but also upload the open-door tones in batch that you favored on the web Device > Voice > Open Door Tone Setting interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 35: Network Setting

     Static IP: select the static IP mode by checking off the DHCP check box. When static IP mode is selected, then the IP address, subnet mask, default gateway, and DNS servers address have to be manually configured according to your actual network environment. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 36: Device Local Rtp Configuration

    RTP port (Real-time Transport Protocol) for establishing an exclusive range of data transmission in the network. To configure the configuration on the web Network > Advanced > Local RTP interface. Parameter set-up: AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 37: Device Deployment In Network

    Disable if you want to conceal the device so as not to be discovered by other devices.  Device Address: specify the device address by entering device location information from the left to the right: Community, Unit, Stair, Floor, Room in sequence. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 38: Nat Setting

     UDP Alive Msg Interval: set the message sending time interval from 5-60 seconds, the default is 30 seconds.  RPort: enable the Rport when the SIP server is in WAN (Wide Area Network). AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 39: Intercom Call Configuration

    IP number on the device. And you can also disable the direct IP call if you allow no IP call to be made on the device. 11.1.1. Make IP Calls To make SIP calls or IP calls on the device by clicking on dial on home screen. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 40: Ip Call Configuration

    11.2.1. SIP Account Registration X915 series door phones support two SIP accounts that can all be registered according to your applications. You can for example, switch between them if any one of the accounts failed and become invalid. The SIP account can be configured on the device and on the device interface.

  • Page 41: Configure Sip Account On The Device

     Password: enter the password obtained from the SIP account administrator.  Server IP: enter the SIP server address for the SIP account selected.  Server port: enter the SIP server port for communication. The SIP port is “5060” by default. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 42: Configure Sip Account On The Web Interface

     Display Label: configure the device label to be shown on the device screen.  Register Name: enter the SIP account register Name obtained from the SIP account administrator.  Password: enter the password obtained from the SIP account AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 43: Sip Server Configuration

    The default registration period is “1800”, ranging from 30-65535s. 11.2.3. SIP Call DND&Return Code Configuration DND (Do not disturb) setting allows you not to be disturbed by any unwanted AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 44: Configure Outbound Proxy Server

    An outbound proxy server is used to receive all initiating request messages and route them to the designated SIP server in order to establish call session via port-based data transmission.To configure the configuration on the web Account > Basic > Outbound Proxy Server interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 45: Configure Data Transmission Type

     UDP: select UDP for unreliable but very efficient transport layer protocol. UDP is the default transport protocol.  TCP: select TCP for Reliable but less-efficient transport layer protocol.  TLS: select TLS for Secured and Reliable transport layer protocol. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 46: Dial Options Configuration

    Moreover, SRV can also be used to configure the priority and the weight of the server address. 11.3.Dial Options Configuration X915 series offers a variety of Dial options that allows you to have fast dial experience while relieving you off memory burden due to long and complex dial numbers.

  • Page 47: Quick Dial By Number Replacement On The Web Interface

    101. 11.3.1.2. Quick Dial by Number Replacement on the Web Interface You can not only add quick dial number separately but also import the quick AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 48: Call Auto-Answer Configuration

     Auto Answer Delay: set up the delay time (from 0-5 Sec.) before the call can be answered automatically. For example, if you set the delay time as 1 second, then the call will be answered in 1 second automatically. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 49: Robin Call Configuration

    11.5.Robin Call Configuration Robin Call is a function supported by Akuvox SmartPlus which releases a group of robin call numbers for the application. You can call the targeted group of robin calls (e.g., your extension numbers in your kitchen, bedroom, etc.) in sequential orders until the call is answered.

  • Page 50: Call Settings

    12. Call Settings 12.1.1. Maximum Call Duration Setting X915 series door phone allows you to set up the call time duration in receiving the call from the calling device as the caller side might forget to hang up the intercom device. When the call time duration is reached, the door phone will terminate the calling automatically.

  • Page 51: Audio& Video Codec Configuration For Sip Calls

    12.1.3. Audio& Video Codec Configuration for SIP Calls 12.1.3.1. Audio Codec Configuration X915 series supports four types of Codec (PCMU, PCMA, G729, G722) for encoding and decoding the audio data during the call session. Each type of Codec varies in terms of the sound quality. You can select the specific codec with different bandwidth and sample rate flexibly according to the actual network environment.

  • Page 52: Video Codec Configuration

    64 kbit/s 16kHZ 12.1.3.2. Video Codec Configuration X915 series support H264 codec that provides a better video quality at much lower bit rate with different video quality and payload. To configure the configuration on the web Account > Advanced >...

  • Page 53: Configure Dtmf Data Transmission

    DTMF in order to establish a DTMF-based data transmission between the door phone and other intercom device for the third party integration. To configure the configuration on the web Account > Advanced > DTMF interface. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 54 You are required to set it up only when the third-party device to be matched with adopts “Info” mode  Payload: set the payload according the specific data transmission payload agreed on between the sender and receiver during the data transmission. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 55: Phone Book Configuration

    13.1.Phone Book Configuration on the Device You can configure the contacts list in terms of adding and modifying contact groups or contacts on the device directly. To configure the phone book on the device Setting > Tenants interface. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 56  Only the SIP numbers of the contacts can be called out through SIP account. IP numbers are not valid for this application.  Group must be created first before you can select or change the Group. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 57: Phone Book Configuration On The Web Interface

    “Secondary”, “Lastly”. This feature is mainly applicable to the contacts in a specific contact group. For example, if you set the priority of call for one of the contacts in a specific contact group as “Firstly” then the AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 58: Contact List Display Setting

    If you want to customize your contact list display to your desired visual preference. You can go to the web interface to do the configuration. To configure the configuration on the web Tenants > Tenants List > Tenants List Setting interface. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 59  Contact List Search Box Visibled: tick or untick the check box to control the display of the “Tap here to search field”on the top of the screen. If you AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 60 X915 Admin Guide untick the check box, then the “Tap here to search field” will be concealed. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 61: Relay Setting

     1-digt DTMF: set the 1-digt DTMF code within range from (0-9, *, and #).  2~4 Digits DTMF: set the DTMF code according to the DMTP Option setting. For example, you are required to set the 3-digits DTMF code if AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 62: Web Relay Setting

    Web relay needs to set up on the web interface where you are required to fill in such information as relay IP address, password, web relay action etc. Before you can achieve the door access via web relay. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 63 SIP Account user name of an intercom device such as an indoor monitor, so that the specific action command will be sent when unlock is performed on the intercom device, while this setting is optional. And please refer to the example below: AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 64: Configure Web Relay Configuration On The Device

    14.2.2. Configure Web Relay Configuration on the Device You can also assign a specific web relay to a resident for the door access based on order of the web relay set up on the web Setting > User > Add interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 65: Door Access Schedule Management

    To configure the configuration on the web Setting > Schedule interface. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 66 X915 Admin Guide To create a weekly schedule: To create a longer period schedule: AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 67: Import And Export Door Access Schedule

    15.1.3. Edit the Door Access Schedule If you want to edit or delete your door access schedule you created, you can edit or delete the configured schedule separately or in batch on the web Setting > Schedule interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 68: Door Unlock Configuration

    X915 Admin Guide 16. Door Unlock Configuration X915 series door phone offers you three types of door access via PIN code, RF card and Facial recognition. You can configure them on the device and web interface. Moreover, you can import or exporting the configured files to maximize your RF card configuration efficiency.

  • Page 69: Configure Private Pin Code On The Web Interface

    Code access during a certain time span you scheduled. In addition, you can set the limit for the total number of valid PIN code door access. To configure the configuration on the web Access Control > User interface. Select door access Schedule for Private PIN Code door access: AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 70  Times: set the total number of valid PIN code access allowed. Note:  This step is applicable to door access by RF card and Facial recognition as they are identical in configuration. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 71: Configure Private Pin Access Mode

    X915 Admin Guide 16.1.4. Configure Private PIN Access Mode X915 series door phone offers you two types of access modes for private PIN code access, namely “PIN” and “APT#+PIN”. To configure the configuration on the web Access Control > PIN Setting > Private PIN interface.

  • Page 72: Configure Rf Card For Door Unlock

     APT+PIN can only be applicable when the device is added to the Akuvox SmartPlus. 16.2.Configure RF Card for Door Unlock 16.2.1. Configure RF Card on the Web Interface To configure the configuration on the web Access Control > User > RF Card interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 73: Configure Rf Card On The Device

    RF card access along with the web relay that can be trigger with RF card etc. To configure the language display on the device Setting > User > Add interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 74: Configure Rf Card Code Format

    You can configure door access by facial recognition on the device by entering the user’s name and register your facial ID on the device for the door access. To configure the language display on the device Setting > User > face interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 75: Configure Facial Recognition On Web Interface

    X915 Admin Guide 16.3.2. Configure Facial Recognition on Web Interface X915 series door phone allows you to adjust facial recognition accuracy, recognition intervals according to your actual need. And you can also improve the recognition quality and user experience through the basic facial recognition setting.

  • Page 76: Edit The User-Specific Door Access Data

    You can search user(s)-specific door access and edit the door access data on the web Access Control > User interface. 16.5.Import and Export User Data of Access Control X915 series support User Data of access control to be shared among Akuvox AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 77: Configure Bluetooth For Door Unlock

    X915 Admin Guide X915 series door phones through import and export while you can also export the facial data out of the door phone and then import to a third-party device. To configure the configuration on the web Access Control > User >...

  • Page 78: Configure Open Relay Via Http For Door Unlock

     Password: enter the password for the HTTP command. For example: “12345”. Please refer to the following example: http://192.168.35.127/fcgi/do?action=OpenDoor&UserName=admin&Passw ord=12345&DoorNum=1 Note:  DoorNum in the HTTP command above refers to the relay number #1 to be triggered for the door access. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 79: Unlock By Qr Code

    Access Control > Relay > Open Relay via QR Code interface. Note:  The function should work with Akuvox SmartPlus. For more information, please contact Akuvox technical support. 16.9.Configure Exit Button for Door Unlock When you need to open the door from inside using the Exit button installed by the door, you can configure the door phone Input to trigger the relay for the door access.

  • Page 80: Configure Reception Tab For Door Unlock

     Door Status: display the status of input signal. 16.10. Configure Reception Tab for Door Unlock In the device home screen, X915 series door phone provide residents and visitors a quick door access by pressing the Reception tab on the bottom of the home screen.

  • Page 81: Unlock By Dtmf Code

     Type: select DTMF type among five options: “Inband”, “RFC2833”, “Info+Inband” and “Info+RFC2833” according to you need.  How to Notify DTMF: select among four options: “Disable” “DTMF” “DTMF-Relay” “Telephone-Event” according to your need.  DTMF Payload: select the payload 96-127 for data transmission identification. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 82  Please refer to the chapter refer to the chapter Configuring DTMF Data Transmission for the specific DTMF code setting.  Intercom devices involved must be consistent in the DTMF type otherwise DTMF code cannot be applied. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 83: Security

    You can set up the gravity value as well as the adjusting the gravity sensor sensitivity according to your actual need. To configure the language display on the device Setting > Security > Temper Proof interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 84: Configure Tamper Alarm On The Web Interface

    17.2.1. Configure Motion Detection on the Device You can turn on the motion detection and set up the motion detection interval on the device Advanced Setting > Surveillance > Motion screen. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 85 (sending out notification) anywhere between 7-10 seconds once movement is detected.“10” Sec interval is a complete cycle of the motion detection before it starts another cycle of the same time interval. To be more AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 86: Configure Motion Detection On The Web Interface

     Time Interval: set the time interval in the same away as you do on the device.  Detection Accuracy: set the detection accuracy for the detection sensitivity. The small value it is, the greater sensitivity. the default detection accuracy value is “20”. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 87: Security Notification Setting

     Email Send Name: enter the name of the email sender.  Receiver's Email Address: enter the receiver’s email address.  Receiver’s Email Name: enter the name of the email receiver.  SMTP Server Address: enter the SMTP server address of the sender. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 88: Ftp Notification Setting

     FTP Server: enter the address (URL) of the FTP server for the FTP notification.  FTP User Name: enter the FTP server user name.  FTP Password: enter the FTP server password.  FTP Path: enter the folder name you created in FTP server. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 89: Tftp Notification Setting

    You can set up the web interface automatic log-out timing, requiring re-login by entering the user name and the passwords for the security purpose or for the convenience of operation. To configure the configuration on the web Security > Basic > Session Time Out interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 90: Monitor And Image

    18. Monitor and Image 18.1.RTSP Stream Monitoring X915 series door phone support RTSP stream that allows intercom devices such as indoor monitor or the monitoring unit from the third party to monitor or obtain the the real time audio/ video (RTSP stream) from the door phone using the correct URL.
  • Page 91 “25fps” is the video frame rate by default for the second video stream channel.  2nd Video Bitrate: select video bitrate among the six options for the second video stream channel. While the second video stream channel is “512 kpbs” by default. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 92: Mjpeg Image Capturing

    X915 Admin Guide 18.2.MJPEG Image Capturing X915 series allow you to capture the Mjpeg format monitoring image if needed. You can enable the MJPEG function and set the image quality on the web Surveillance > MJPEG interface. Parameter Set-up:  Enabled: tick the check box to enable the Mjpeg service.

  • Page 93: Live Stream

     Fill in the specific IP address of the door phone in the URL. 18.4.Live Stream If you want to check the real-time video from the X915 series door phone, you can go to the device web interface to obtain the real-time video or you can also enter the correct URL on the web browser to obtain it directly.
  • Page 94 X915 Admin Guide AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 95: Logs

    SIP or IP number. 19.2.Door Logs If you want to search and check on the various types of door access history, you can search and check the door logs on the device web Access Control > AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 96  Start Time ~ End Time: select the specific time span of the door logs you want to search, check, or export.  Name/Code: select the “Name” and “Code” options to search door log by the name or by the PIN code. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 97: Debug

    Parameter Set-up:  LogLevel: select log levels from 1 to 7 levels. You will be instructed by Akuvox technical staff about the specific log level to be entered for debugging purpose. The default log level is “3”. the higher the level is, the more complete the log is.

  • Page 98: Pcap For Debugging

    X915 Admin Guide 20.2.PCAP for Debugging PCAP in X915 series door phone is used to capture the data package going in and out of the devices for debugging and troubleshooting purpose. You can set up the PCAP on the device web Upgrade > Diagnose > PCAP interface properly before using it.

  • Page 99: Firmware Upgrade

    X915 Admin Guide 21. Firmware Upgrade Firmware of different versions for X915 series door phone can be upgraded on the device web Upgrade > Basic interface. Note:  Firmware files should be .zip format for upgrade. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 100: Backup

    X915 Admin Guide 22. Backup Configuration files can be imported to or exported out of the device to your local PC on the device web Upgrade > Diagnose > Others interface if needed. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 101: Auto-Provisioning Via Configuration File

    Auto-provisioning is a feature used to configure or upgrade the devices in batch via third party servers. DHCP, PNP, TFTP, FTP, HTTPS are the protocols used by the Akuvox intercom devices to access the URL of the address of the third-party server which stores configuration files and firmware, which will then be used to update the firmware and the corresponding parameters on the door phone.

  • Page 102: Configuration Files For Auto-Provisioning

    MAC-based configuration files. 23.3.AutoP Schedule Akuvox provides you with different Autop methods that enable the door phone to perform provisioning for itself in a specific time according to your schedule.

  • Page 103: Pnp Configuration

    Plug and Play (PNP) is a combination of hardware and software support that enables a computer system to recognize and adapt to hardware configuratio n changes with little or no intervention by a user. To configure the configuration on the web Upgrade > Advanced > PNP Option interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 104: Dhcp Provisioning Configuration

    Custom Option as defined by users with option code range from 128-255), you are required to configure DHCP Custom Option on the web interface. Note:  The custom Option type must be a string. The value is the URL of TFTP server. Parameter set-up: AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 105: Static Provisioning Configuration

    To download the Autop template on Upgrade > Advanced > Automatic Autop , and setup Autop server on Upgrade > Advanced > Manual Autop interface. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 106  AES Key (MAC): set up AES code for the intercom to decipher the MAC-based auto provisioning configuration file. Note:  AES is one type of encryption, it should be configured only when the config file is encrypted with AES, otherwise leave the field blank. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 107  HTTP: http://192.168.0.19/ (use the default port 80)  http://192.168.0.19:8080/ (use other ports, such as 8080)  HTTPS: https://192.168.0.19/ (use the default port 443) Tip:  Akuvox do not provide user specified server.  Please prepare TFTP/FTP/HTTP/HTTPS server by yourself. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 108: Integration With Third Party Device

    24. Integration with Third Party Device 24.1.Integration via Wiegand If you want to integrate the X915 series door phone with the third-party devices via Wiegand. To configure the configuration on the web Access Control > Card Setting > Wiegand interface.
  • Page 109 X915 Admin Guide number will be reversed an vice versa. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 110: System Reboot&Reset

    To restart the system setting on the web Upgrade > Basic interface. 25.2.Reset If you want to reset the device system to the factory setting, you can it on the web Upgrade > Basic interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 111: Abbreviations

    FTP: File Transfer Protocol GND: Ground HTTP: Hypertext Transfer Protocol HTTPS: Hypertext Transfer Protocol Secure Socket Layer IP: Internet Protocol ID: Identification IR: Infrared LCD: Liquid Crystal Display LED: Light Emitting Diode MAX: Maximum POE: Power Over Ethernet AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 112 SDMC: SIP Devices Management Center TR069: Technical Report069 TCP: Transmission Control Protocol TLS: Transport Layer Security TFTP: Trivial File Transfer Protocol UDP: User Datagram Protocol URL: Uniform Resource Locator VLAN: Virtual Local Area Network WG: Wiegand AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 113: Faq

    “3888” and “OK” to enter the system setting screen. Go to info screen to check the IP address. ✔Common method: Using Akuvox IP Scanner to search Akuvox devices in the same LAN network. Q2: Do Akuvox devices support opus codec? A2: For now, only Akuvox Android video IP phone R48G can support Opus audio codec.
  • Page 114 A6: Sorry, they are not supported. They need to be implemented via hardware modifications. Q7: How to confirm whether my device is hardware version 1 or hardware version 2? A7: 1. Label  Hardware version 1  Hardware version 2 AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 115 220.X.X.X is hardware version 2.  Hardware version The firmware is different between hardware version1 and hardware version 2. Go to Web-Status -Firmware Version. If the hardware version is 220.x, then the device is hardware version 2. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 116: Contact Us

    X915 Admin Guide 28. Contact us For more information about the product, please visit us atwww.akuvox.com or feel free to contact us by Sales email: sales@akuvox.com Technical support email: support@akuvox.com Telephone: +86-592-2133061 ext.7694/8162 We highly appreciate your feedback about our products.

Table of Contents
