Configuration Guide for Integrating Akuvox and
Date
Written by
Reviewed by
Version
LifeSmart Devices
July 18, 2022
Zongxiong Li
Zhichao Liu, and Xingjin Lin
1.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X915S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Akuvox X915S

Summary of Contents for Akuvox X915S

  • Page 1 Configuration Guide for Integrating Akuvox and LifeSmart Devices Date July 18, 2022 Written by Zongxiong Li Reviewed by Zhichao Liu, and Xingjin Lin Version...

  • Page 2: Table Of Contents

    Ⅴ. Feature configurations for Akuvox R29 ..................19 Ⅵ. Feature configurations for Akuvox E12 ..................26 Ⅶ. Wiring for Akuvox door phone and the lock ................32 Ⅷ. Remote control ........................... 33 Ⅸ. Contact Akuvox technical support for more configuration instructions ........36...

  • Page 3: Product Introduction

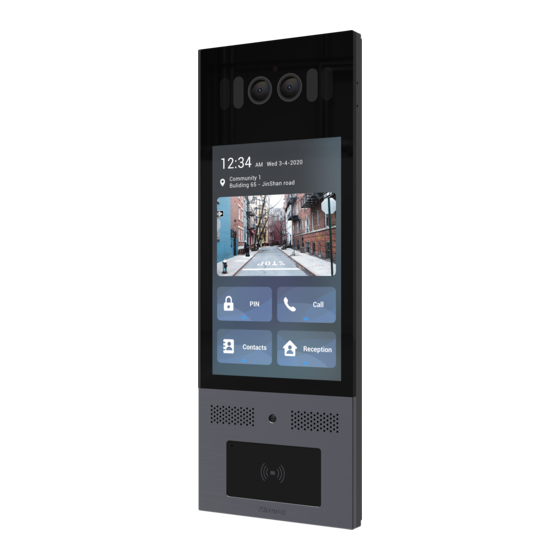

    Product Introduction X915S is an 8-inch digital door phone supporting facial recognition. Its stainless steel cover and tempered glass display provides protection in harsh environments. X915, boasting 2 starlight cameras and the deep learning algorithm developed by Akuvox, allows residents to open the door using facial recognition.

  • Page 4: Configuration

    Topology Figure 1-1 Plan introduction Akuvox door phones and LifeSmart Nature can make IP-based audio and video intercom with each other in the same local area network(LAN). LifeSmart Nature is able to open doors remotely by controlling Akuvox door phones.

  • Page 5: Ⅰ. Get Ip Address Of Akuvox Door Phone

    Ⅰ. Get IP Address of Akuvox door phone Install and run the IPScanner tool. It can automatically detect the devices in the same LAN. Obtain IP address on the device Obtain IP address on X915S  Tap Call button on the home screen.
  • Page 6 Enter system PIN 9999, and tap the call icon. And then enter 3888 to go to the Setting screen. Tap System Info > Network to see the device’s IP address.
  • Page 7 Obtain IP address on R29Z& R29C  Tap Dial icon on the home screen. Enter system PIN 9999, and tap the call icon. And then enter 3888 to go to the Setting screen.
  • Page 8 Tap Info to see the device’s IP address. Obtain IP address on E12  Press and hold the physical button on the device for 5 seconds, and E12 will broadcast its IP address automatically.

  • Page 9: Ⅱ. Add Akuvox Door Phones On Lifesmart Nature

    Ⅱ. Add Akuvox door phones on LifeSmart Nature Tap the menu icon in the bottom right corner, and choose Quick Controls from the menu. Tap Edit in the upper right corner.
  • Page 10 3. Add Video intercom (可视对讲）to the bottom tab bar. Tap Done. 4. You can see the video intercom icon appear on the tab bar. 5. Tap Video intercom icon > Settings, and then the Add in the upper right corner.
  • Page 11 6. Type in Akuvox door phone’s information. Tap Connect if you complete the settings. Parameters introduction  Device name. The name displayed on the Nature screen when the door phone call the Nature. Device IP. The door phone’s IP address, which can be obtained via IPScanner or from the device itself.
  • Page 12 7. The newly-added device will be displayed on the Settings screen. Tap the arrow icon in the upper left corner to exit the screen. 8. On the Video intercom screen, you can also see the added device. Here you are able to make a call, see its monitor video, open door, and check the call and door access histories.

  • Page 13: Ⅲ. Log Into Akuvox Door Phone's Web Interface

    Open your browser and type in the device’s IP address to go to its web interface. The default user name and password are both admin. Note: Log into X915S, R29, and E12’ s web interfaces, do the same as the above.

  • Page 14: Ⅳ. Feature Configurations For Akuvox X915S

    Ⅳ. Feature configurations for Akuvox X915S Update Note: Before you use the X915S, make sure you’ve updated it to the latest firmware version. To get the latest version, go to Akuvox website www.akuvox.com, or contact Akuvox technical support. Disable the Prevent SIP Hacking function Note: If this function enabled, you cannot make calls between Akuvox door phones and LifeSmart Nature.
  • Page 15 Static IP setting Enable Open Relay via HTTP function Note: To let the Nature open doors remotely via HTTP, when adding Akuvox door phones on LifeSmart Nature, the username and password must be the same as you typed in on this web...
  • Page 16 Speed dial setting (Adaptively-hide button, suitable for the villas) Note: You can type in up to 4 IP addresses in one Value field, and separate each address with the semicolon. All the devices will be called at the same time if you entered their IP addresses in one Value field.
  • Page 17 Relay Input setting (for exit button) Add users Adding users one by one or in batch on the web interface...
  • Page 18 Adding users one by one on the device Add LifeSmart Nature to tenant list (support batch import, and suitable for communities) 1) Add the contact group (take 101 as example).
  • Page 19 2) Add the contact. Choose the Group 101. If there are several devices in Room 101, you can add them as contacts by IP address. 3) You can then find them in the Local Tenant List.
  • Page 20 In this case, when Akuvox door phone choose to call 101 from the tenant list, it is able to call the LifeSmart Nature in Room 101. 10. Speed dial on Call screen(support batch import, and suitable for communities) Go to Intercom > Dial Plan, and click Add.

  • Page 21: Ⅴ. Feature Configurations For Akuvox R29

    Ⅴ. Feature configurations for Akuvox R29 1. Update Note: Before you use the X915S, make sure you’ve updated it to the latest firmware version. To get the latest version, go to Akuvox website www.akuvox.com, or contact Akuvox technical support. 2. Disable the Prevent SIP Hacking function Note: If this function enabled, you cannot make calls between Akuvox door phones and LifeSmart Nature.
  • Page 22 4. Enable Open Relay via HTTP function Note: To let the Nature open doors remotely via HTTP, when adding Akuvox door phones on LifeSmart Nature, the user name and password must be the same as you typed in on this web...
  • Page 23 5. Speed dial setting (Adaptively-hide button, suitable for the villas) Note: You can type in up to 4 IP addresses in one Value field, and separate each address with the semicolon. All the devices will be called at the same time if you entered their IP addresses in one Value field.
  • Page 24 7. Relay Input setting (for exit button) 8. Add users Adding users one by one or in batch on the web interface.
  • Page 25 Adding users one by one on the device. 9. Add LifeSmart Nature to tenant list (support batch import, and suitable for communities) Go to Contacts > Group, and add the group (take 101 as example).
  • Page 26 IP address. You can then find them in the Local Contact List. In this case, when Akuvox door phone choose to call 101 from the contact list, it is able to call the LifeSmart Nature in Room 101.
  • Page 27 In this case, when Akuvox door phone dial 101 on the Call screen, it is able to call the LifeSmart Nature in Room 101.

  • Page 28: Ⅵ. Feature Configurations For Akuvox E12

    Ⅵ. Feature configurations for Akuvox E12 Update Note: Before you use the X915S, make sure you’ve updated it to the latest firmware version. To get the latest version, go to Akuvox website www.akuvox.com, or contact Akuvox technical support. To disable the Protection from SIP Hacking function, go to Account > Advanced > Call.
  • Page 29 Note: If this function enabled, you cannot make calls between Akuvox door phones and LifeSmart Nature. Static IP Seting Enable Open Relay via HTTP function...
  • Page 30 Note: To let the Nature open doors remotely via HTTP, when adding Akuvox door phones on LifeSmart Nature, the username and password must be the same as you typed in this web interface. Speed dial setting Note: You can enter up to 12 IP addresses. All the devices will be called at the same time if you entered their IP addresses in the Group Call Number field.
  • Page 31 Add users...
  • Page 32 Wi-Fi setting Enable WLAN. Scan for the available Wi-Fi, and click Connect to join the specific network.
  • Page 33 3) Check if the device is connected to the Wi-Fi network.

  • Page 34: Ⅶ. Wiring For Akuvox Door Phone And The Lock

    Ⅶ. Wiring for Akuvox door phone and the lock Akuvox door phone is used as a dry contact to control locks, usually the electromagnetic lock and electric strike lock. The locks require external power supply. In terms of the electromagnetic lock, it only needs to connect the power supply to the relay.

  • Page 35: Ⅷ. Remote Control

    Ⅷ. Remote control User Obtain door phone’s IP address on the device, and add Akuvox door phones on LifeSmart Nature. Distributor Log into the installer interface, go to the project, and update the devices to the latest version. Note: Select the Version to be R29 or E12, you can then see the corresponding devices needed to...
  • Page 36 Find the device belonged to the specific end user, go to its detail screen, and click Settings.
  • Page 37 Modify the configurations by remote control. On the Setting page, click Remote Control. Log into the device’s web interface, and set up the device. Note: You have to disable the Prevent SIP Hacking function, enable Open Relay via HTTP, and set up Speed dial. It is recommended that you configure the static IP last to avoid the network disconnection.

  • Page 38: Ⅸ. Contact Akuvox Technical Support For More Configuration Instructions

    Ⅸ. Contact Akuvox technical support for more configuration instructions...
