X916 Series Door Phone User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X916 series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Akuvox X916 series

Summary of Contents for Akuvox X916 series

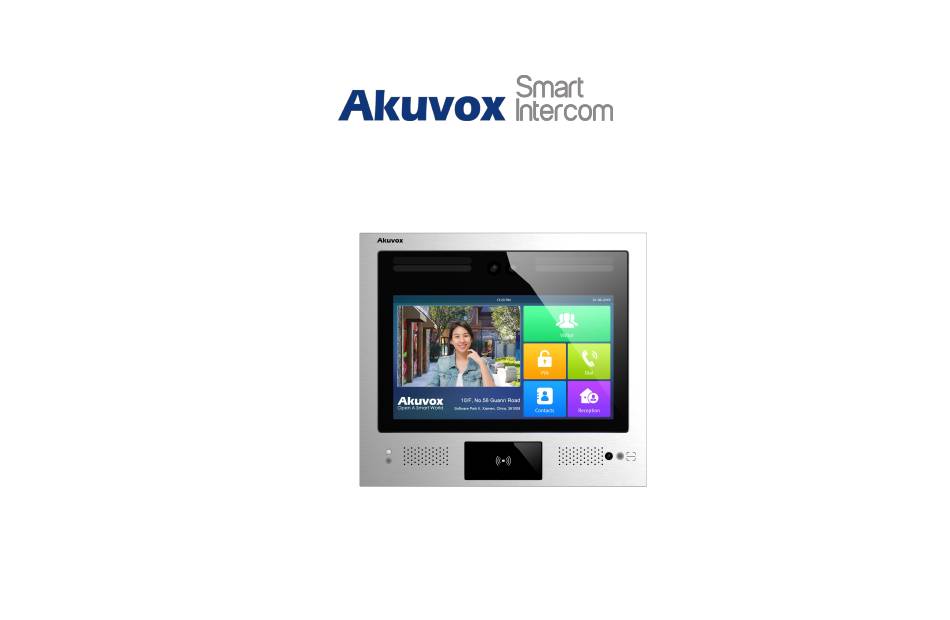

  • Page 1 X916 Series Door Phone User Manual...
  • Page 2 About This Manual Thank you for choosing Akuvox’s X916 series door phone. This manual is intended for end users who need to properly configure the door phone. This manual is applicable to 916.30.1.29 version, and it provides all functions’ configurations of X916 series door phone.

  • Page 3: Table Of Contents

    Content 1. Product Overview....................................... 1 1.1. Product Instruction......................................1 1.2. Introduction of Application Scenarios..............................2 2. Daily use..........................................4 2.1. Make a Call........................................4 2.1.1. Calling from Digital Keypad................................4 2.1.2. Calling from Phonebook.................................. 5 2.1.3. Calling from Speed Dial................................6 2.1.4. No-appointment Call in VMS scenario............................6 2.2.
  • Page 4 2.3.6. Unlock by Delivery PIN................................11...

  • Page 5: Product Overview

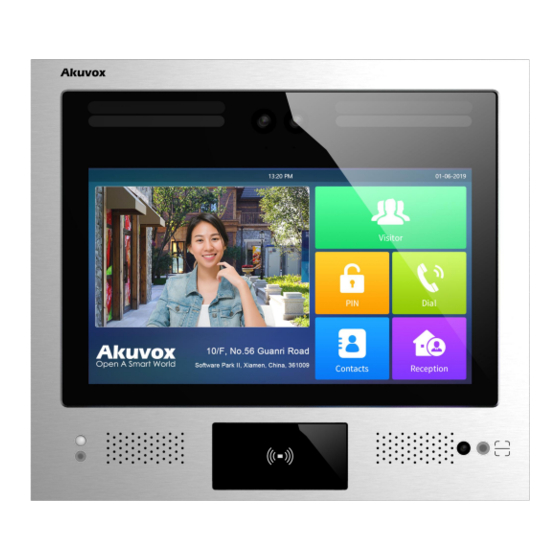

    User Manual 1. Product Overview 1.1. Product Instruction X916 series is an Android-based IP video door phone with a large size LCD touch screen. It incorporates audio and video communications, access control and video surveillance. Its finely-tuned Android OS allows for feature customization to better suit the habit of usage of local people.

  • Page 6: Introduction Of Application Scenarios

    X916 User Manual surroundings and giving you a greater sense of security and smart living experience. X916 is applicable to luxurious apartment buildings for intercom cloud application and office buildings and their complexes for visitor management system. 1.2. Introduction Application Figure 1.2-1 Intercom Scenario Home Screen Scenarios X916 can be deployed in both luxurious apartment buildings and...
  • Page 7 X916 User Manual While, visitors can not do the same thing in VMS scenario applied in the office building for the communication and door access, they instead need do so through appointment-based communication and door access.

  • Page 8: Daily Use

    X916 User Manual 2. Daily use 2.1. Make a Call If you choose Intercom scenario, you can make calls to the intercom units directly. However, If you choose VMS scenario you cannot make direct calls but you can do it otherwise. There are three ways to make a call from the door phone to monitor Figure 2.1 Intercom Scenario units, which can be an indoor monitor or an intercom app.

  • Page 9: Calling From Phonebook

    X916 User Manual 2.1.2. Calling from Phonebook Tap Contacts Icon on the home screen to go to the phonebook screen where you can tap All Resident to find the specific contact you wish to call to, or you can select the contact from the contact list by entering the contact’s name to find the targeted contact in the Tap here to search field.

  • Page 10: Calling From Speed Dial

    X916 User Manual 2.1.3. Calling from Speed Dial In the intercom scenario, you press Reception icon to make the call directly. Reception Icon is assigned with a pre-configured code normally used for making emergency call or calling to property management center. Figure 2.1.3 Reception Call-out 2.1.4.

  • Page 11: Receiving A Call

    X916 User Manual and the contact name before pressing the Confirm button to call out. 2.2. Receiving a Call When a intercom unit calls the door phone, it will answer the incoming call automatically by default without pressing any buttons 2.3.

  • Page 12: Unlock By Facial Recognition

    X916 User Manual VMS scenario, visitor can press I have an appointment icon on the home screen and get door access by entering the correct temporary PIN in the Please enter your temporary PIN Field before pressing the Confirm button. 2.3.2.

  • Page 13: Unlock By Rfid Cards

    X916 User Manual 2.3.3. Unlock by RFID cards RFID card unlock is applicable in Intercom scenario only while the VMS scenario does not support the function. Tap the the pre-configure RFID user card on the care reader to unlock. Under normal conditions, the device will announce “Welcome, please come in”...

  • Page 14: Unlock By Temporary Qr Codes

    X916 User Manual 2.3.5. Unlock by Temporary QR codes You can provide the visitors with temporary QR code door access within a specific time limit and the limited number of access. In the intercom scenario, visitors can press the Temp Key icon on the home screen to go the Temp Key screen and then scan the QR code on the camera on the bottom for the door access.
  • Page 15 X916 User Manual 2.3.6. Unlock by Delivery PIN You can provide delivery personnels with Delivery PIN for the door access. They can press Delivery Icon on the device home screen and entered the correct delivery PIN code provided before pressing the Confirm button for the door access.
  • Page 16 X916 User Manual Abbreviations ACS: Auto Configuration Server DNS-SRV: Service record in the Domain Name System Auto: Automatically FTP: File Transfer Protocol AEC: Configurable Acoustic and Line Echo Cancelers GND: Ground ACD: Automatic Call Distribution HTTP: Hypertext Transfer Protocol Autop: Automatical Provisioning HTTPS: Hypertext Transfer Protocol Secure AES: Advanced Encryption Standard IP: Internet Protocol...
  • Page 17 X916 User Manual SIP: Session Initiation Protocol PCAP: Packet Capture SNMP: Simple Network Management Protocol PNP: Plug and Play STUN: Session Traversal Utilities for NAT RFID: Radio Frequency Identification SNMP: Simple Mail Transfer Protocol RTP: Real-time Transport Protocol SDMC: SIP Devices Management Center RTSP: Real Time Streaming Protocol TR069: Technical Report069 MPEG: Moving Picture Experts Group...
  • Page 18 X916 User Manual Contact us For more information about the product, please visit us atwww.akuvox.com or feel free to contact us by Sales email: sales@akuvox.com Technical support email: support@akuvox.com Telephone: +86-592-2133061 ext.7694/8162 We highly appreciate your feedback about our products.
