Unpacking
Before using the device, check the device model and ensure that the shipped box includes the following items:
X���
Pry bar
Torx wrench
Sealing ring
Op�onal Accessories:
Flush-mounting Accessories (Please find in In-Wall Installation Kit box)
Flush-mounting box
Wall-mounting Accessories (Please find in On-Wall Installation Kit box)
Wall-mounting box

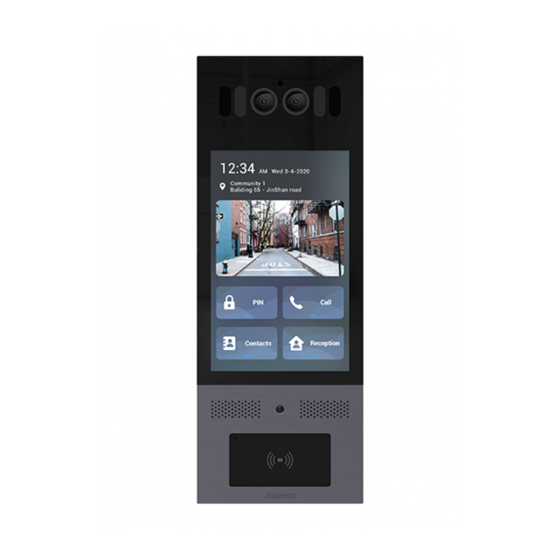

Product Overview
Face-liveness Detection Camera
Microphone
White Light LED
Infrared LED
Loudspeaker
Rope
Rubber plug(small)
M�x�.� torx head screw
Wiring cover
ST�x�� crosshead screw
M�x�� crosshead screw
Light Sensor
�x�-PIN terminal block
Rubber plug(medium)
Plate removal key
� x
Power adapter
Plastic wall anchor
ST�x�� crosshead screw
�x�-PIN terminal block
Rubber plug(large)
Diode
� x
Plug(EU)
Plastic wall anchor
Main Camera
Microphone
White Light LED
Infrared LED
Touch Screen
Infrared Sensor
Card Reader
�-PIN terminal block
M�x� crosshead screw
Card reader touch plate
� x
Plug(US)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Akuvox X915
Summary of Contents for Akuvox X915

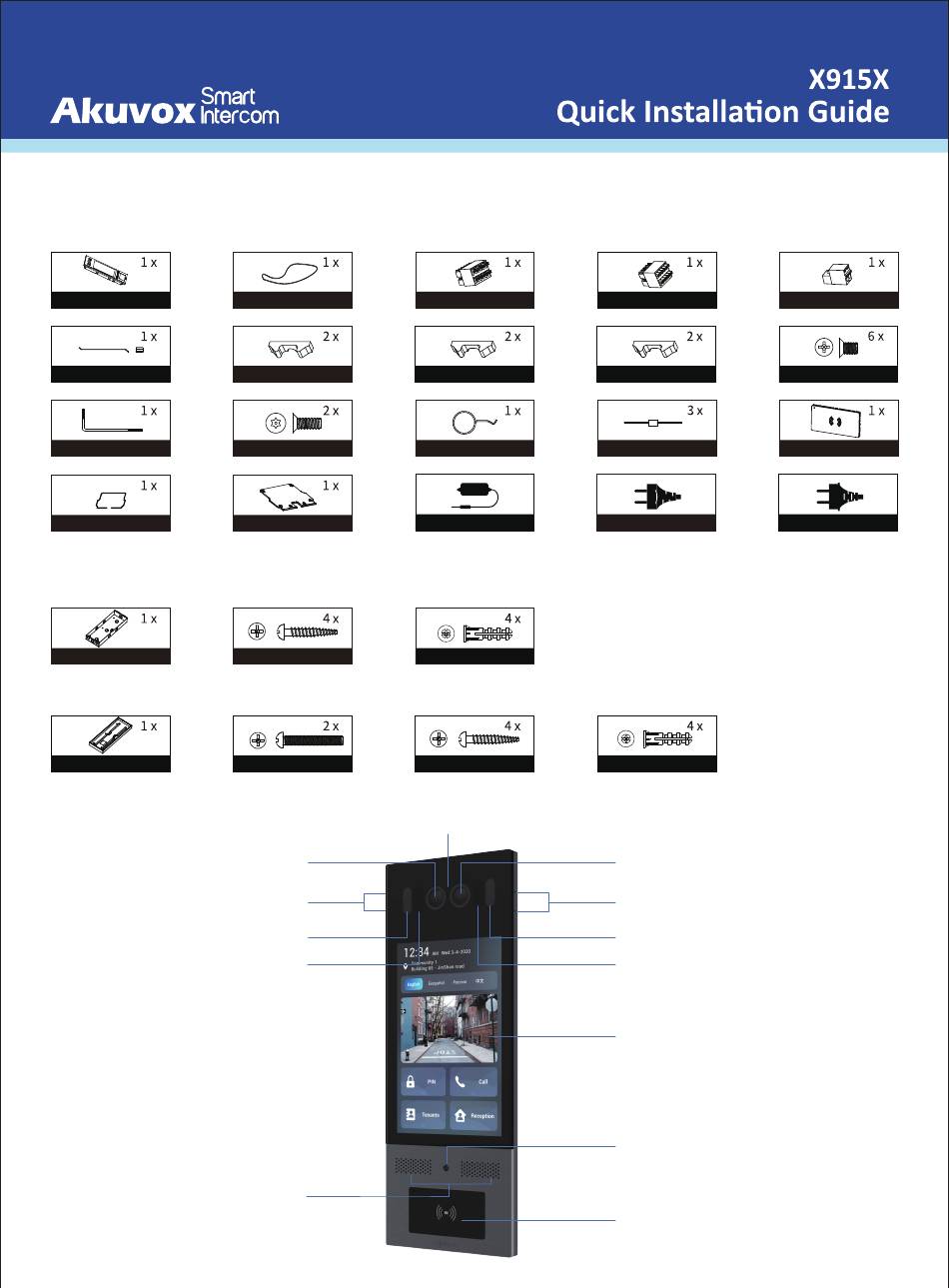

- Page 1 Unpacking Before using the device, check the device model and ensure that the shipped box includes the following items: X��� Rope �x�-PIN terminal block �x�-PIN terminal block �-PIN terminal block Pry bar Rubber plug(small) Rubber plug(medium) Rubber plug(large) M�x� crosshead screw Torx wrench M�x�.�...
-
Page 2: Before You Start
Before You Start Tools needed (not included in shipped box) ▪ Cat Ethernet Cable ▪ Crosshead Screwdriver ▪ Electric Drill Voltage and Current Specifica�ons ▪ It is suggested that use PoE+ or ��VDC �.�A power adapter to power on device. AWG Sizes and Proper�es Table Please follow the properly wire data to install device: Power Supply... - Page 3 �. If there is abnormal situation of the device, including uncommon sound and smell, please power off the device and contact Akuvox Technical Team immediately. Wiring Interface To protect the device from potential damage caused by over-voltage, it is recommended to wire a diode into the circuit.
-
Page 4: Installa�On
Installa�on Step�: Wall-mounting Box or Flush-mounting Box Installation �.Wall Mounting �.�. With ��x�� mm embedded junction box in the wall Attach the wall-mounting box to the embedded box (��) using two M�x�� crosshead screws. Mark the hole positions at the center of the four holes on the wall-mounting box. - Page 5 Remove the box and use a �mm electric drill to drill the four marked holes. Insert four plastic wall anchors into the holes. Align the wall-mounting box’ s four holes with the corresponding drilled holes on the wall. For fasten the wall-mounting box, tighten the four ST�x�� crosshead screws to the plastic wall anchors.
- Page 6 If the box doesn't closely against the wall, fill the gap between the wall and the flush-mounting box with cement or non-corrosive adhesive. Wait for the cement to dry before proceeding to the next step. Step�: Main Unit Installation Insert the terminal blocks into the corresponding interface of as indicated in the drawing.
- Page 7 Step�: Device Mounting Insert plate removal key into the small hole located at the upper left of the card reader Fix two M�X�.� torx plate touch plate to pull out it. head screws into the Hang the slots onto the back holes.
-
Page 8: Device Test
Akuvox warranty does not cover intentional mechanical damage or destruction caused by improper installation. �. Do not attempt to modify, alternate, maintain, or repair device by yourself. Akuvox warranty does not apply to damages caused by anyone who is not representative of Akuvox or an Akuvox authorized service provider. Please contact Akuvox Technical Team if the device need to be repaired.
