Unpacking

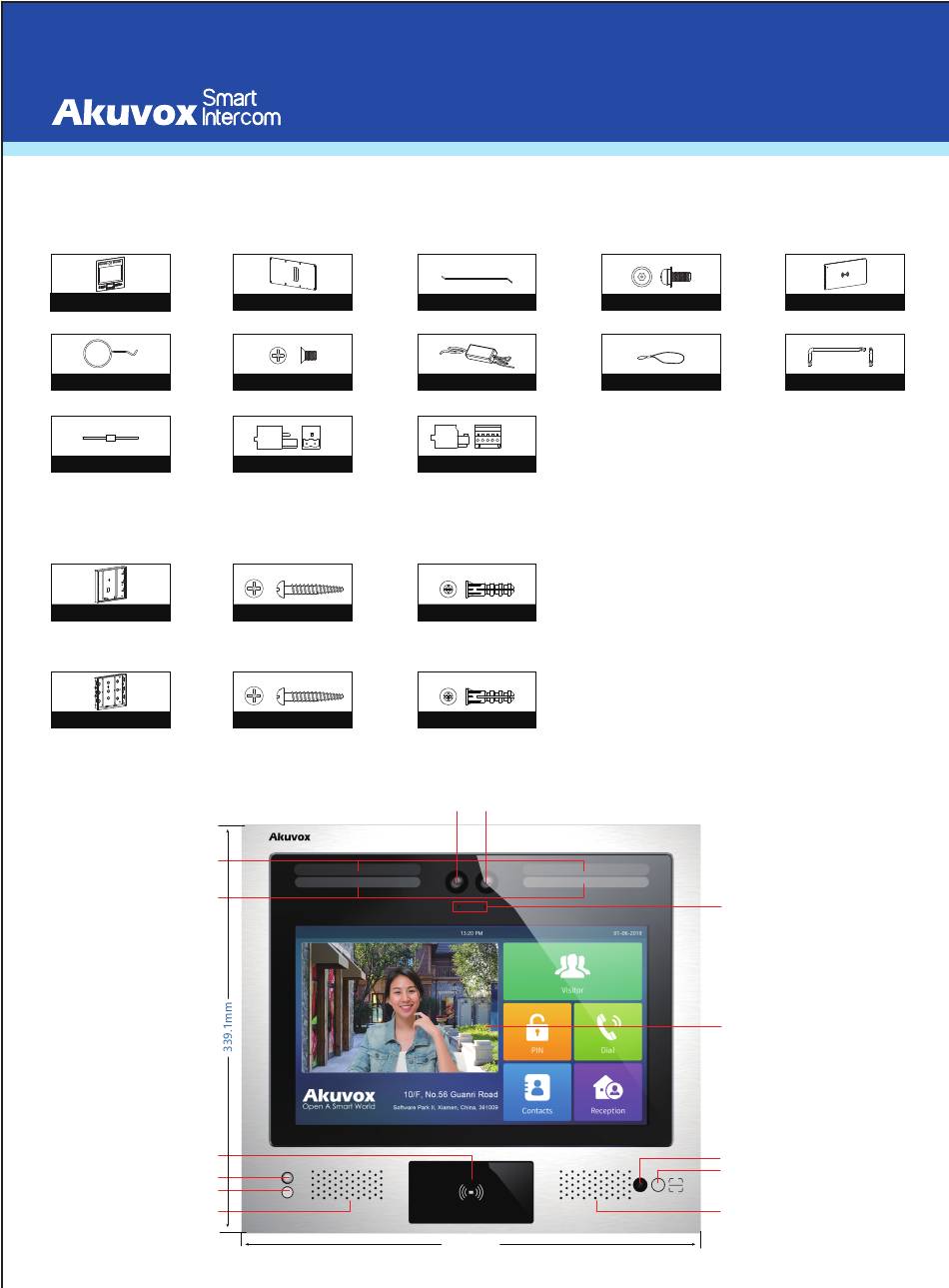

Before using the device, check the device model and ensure that the shipped box includes the following items:
x
1
X916
x
1
Removal tool
x
4
Diode
Optional Accessories：
Wall-mounting Accessories (Please find in On-Wall Installation Kit box)
x
1
Wall-mounting box
Flush-mounting Accessories (Please find in In-Wall Installation Kit box)
x
1
Flush-mounting box
Product Overview
Infrared LED
White Light LED
Card Reader
Infrared Sensor
Photosensitive Sensor
Speaker
x
1
Wiring cover
x
8
M3x4 crosshead screw
x
1
2-PIN terminal block
x
6
ST4x20 crosshead screw
x
6
ST4x20 crosshead screw
x
1
Crowbar
x
1
Power adapter
x
5
25-PIN terminal block
x
6
Plastic wall anchor
x
6
Plastic wall anchor
Camera Face-liveness Detection Camera
383.9mm
X916
Quick Guide
x
3
M3x8 Torx head screw
x
2
Rope
Mic
Touch Screen
QR Camera
QR Fill Light
Speaker
X916
x
1
Card reader cover
x
1
Torx wrench
