Akuvox X915 Series Installation Manual
Hide thumbs
Also See for X915 Series:
- Administrator's manual (145 pages) ,
- Quick installation manual (8 pages) ,
- Quick manual (4 pages)
Related Manuals for Akuvox X915 Series
Summary of Contents for Akuvox X915 Series

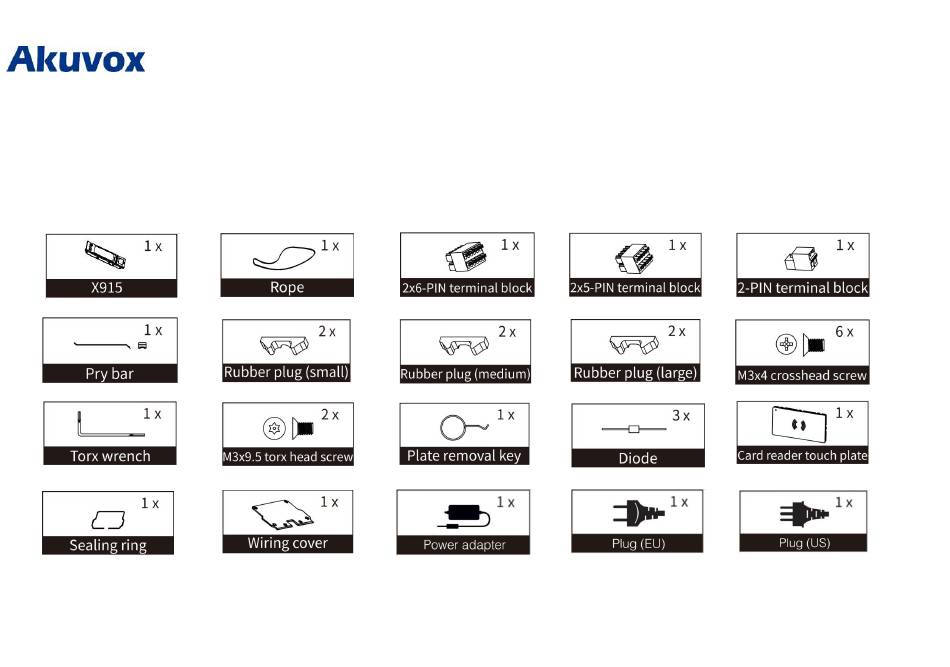

- Page 1 X915X Installation Guide Unpacking Before using the device, check the device model and ensure that the shipped box includes the following items:...
- Page 2 X915X Angle-mounting accessories:...
-
Page 3: Product Overview
X915X Product Overview Main Face-liveness Detection Camera Camera Microphone Microphone Infrared LEDs White Light Touch Screen Infrared Sensor Loudspeak Card Reader... -
Page 4: Before You Start
X915X Before You Start Tools needed (not included in shipped box) Cat Ethernet Cable Crosshead Screwdriver Electric Drill Voltage and Current Specifications It is suggested that use PoE+ or 24VDC 2.5A power adapter to power on device. - Page 5 X915X Requirements 1. Place the device away from sunlight and light sources to prevent potential damage. 2. Do not place the device in the high-temperature, and humid environments or in surroundings impacted by magnetic field. 3. Install the device on the flat surface securely to avoid personal injuries and property loss caused by device’s falling. 4.
- Page 6 5. Use wet cloth clean device surface softly, and then wipe the surface with dry cloth for cleaning the device. 6. If there is abnormal situation of the device, including uncommon sound and smell, please power off the device and contact Akuvox Technical Team immediately.
- Page 7 X915X Wiring Interface To protect the device from potential damage caused by over-voltage, it is recommended to wire a diode into the circuit. Connect the anode of the diode to the negative cable of the lock, and connect the cathode of the diode to the positive cable of the lock.
-
Page 8: Step1: Bracket Installation
X915X Installation Step1: Bracket Installation a. Align the angle mounting box’s four holes with a. Position the angle mounting bracket closely a. Remove the box and use a 6mm hand the corresponding drilled holes on the wall. against the wall, aligning it with the wire’s location. drill to drill the four marked holes. -
Page 9: Step2: Main Unit Installation
X915X Step2: Main Unit Installation a. Insert the terminal blocks into the For easier installation, hang corresponding interface of as indicated in the the device on the box using drawing. a rope. b. Connect the wires to the terminal blocks as needed (for details, refer to "Wiring Interface"). - Page 10 X915X Please use the pry bar attached to unplug the terminal block if needed. a. Press sealing ring and wiring cover into the corresponding groove. b. Tighten the wiring cover with six M3x4 crosshead screws.
-
Page 11: Step3: Device Mounting
X915X Step3: Device Mounting a. Tilt device about 15°. b. Hang the slot onto the back upper part of the main unit into the corresponding hooks of the angle mounting bracket. c. Gently lower the main unit into the angle mounting bracket. - Page 12 X915X Press the card reader touch plate back into its original position, and the installation is done.
- Page 13 X915X Application Network Topology (third SIP Video Phone Indoor Network Video Monitor Recorder (third party) PoE+ PoE+ PoE+ PoE+ X915 X915 X915 X915...
-
Page 14: Device Test
1. Akuvox warranty does not cover intentional mechanical damage or destruction caused by improper installation. 2. Do not attempt to modify, alternate, maintain, or repair device by yourself. Akuvox warranty does not apply to damages caused by anyone who is not representative of Akuvox or an Akuvox authorized service provider. Please contact Akuvox... - Page 15 Notice Information Information contained in this document is believed to be accurate and reliable at the time of printing. This document is subject to change without notice, any update to this document can be viewed on Akuvox’ s website: https://www.akuvox.com...
