UG-846

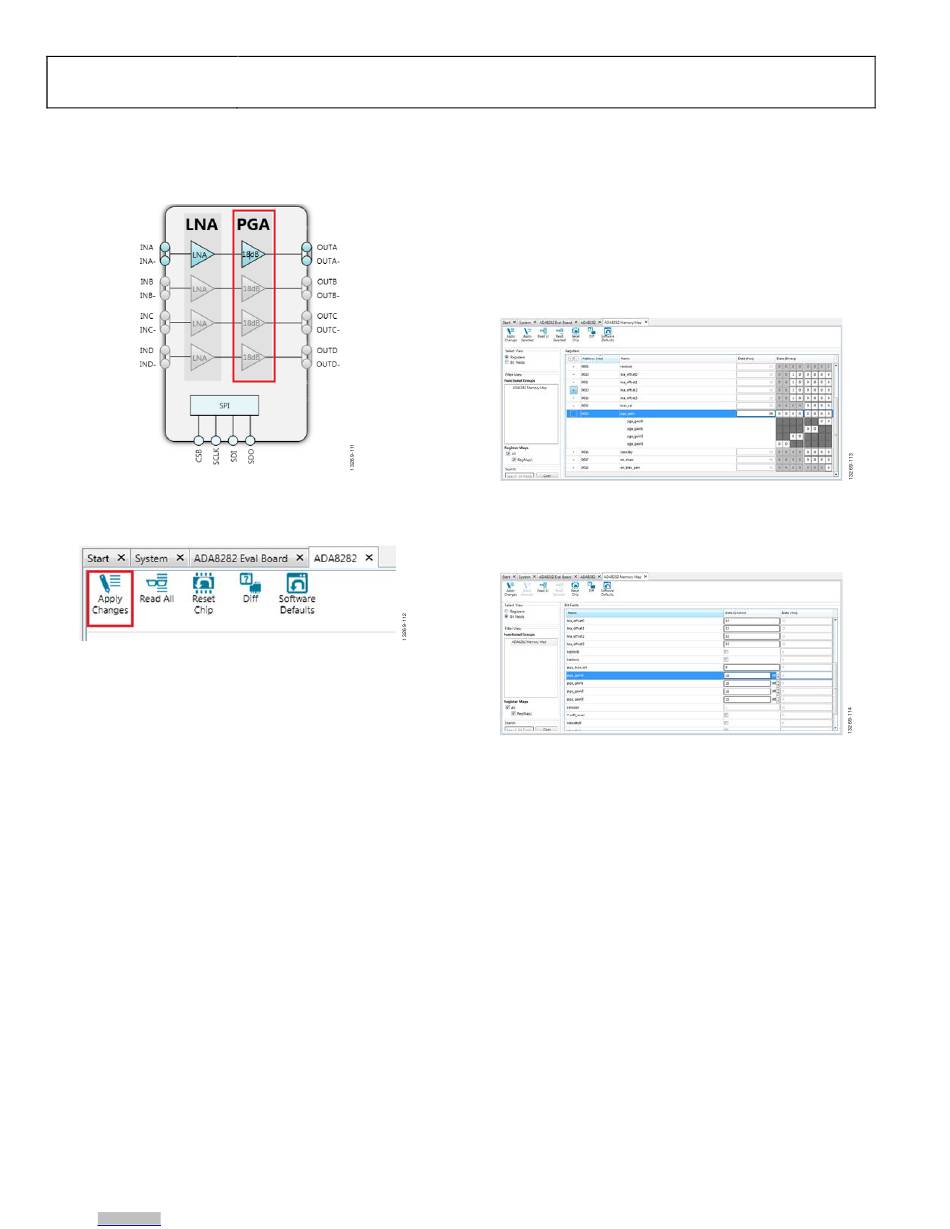

To manipulate the gain of a channel, type in the desired gain on
the corresponding channel that should be changed in the PGA
section. Note that only the gain of enabled channels may be
changed (see Figure 11).
Figure 11. Manipulating Gain
To write the preferred settings to the registers of the device,
click Apply Changes on the toolbar (see Figure 12).
Figure 12. Chip View Toolbar
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from

USING THE ACE MEMORY MAP

The memory map for the
the Proceed to Memory Map found on the lower right portion
of the chip view (see Figure 5). The memory map view can
show either the register fields or the bit fields of the device.
The register view allows the user to manipulate the bits one by
one. Each register may be expanded to show its corresponding
bit fields for easier configuration.
Clicking a bit toggles its value (see Figure 13).
The bit field view allows the user to configure the
modifying its control values. The hexadecimal data is displayed
in the Data (Hex) column.
As with the chip view, the desired setting of the registers is only
written to the ADA8282
For more detailed information on using the ACE software, see
the ACE Wiki.
Rev. 0 | Page 6 of 16
ADA8282CP-EBZ User Guide
ADA8282 can be accessed by clicking
Figure 13. Register Field View
Figure 14. Bit Field View
when Apply Changes is clicked.
ADA8282 by
