Overview
2.2 Installation
2.2.1

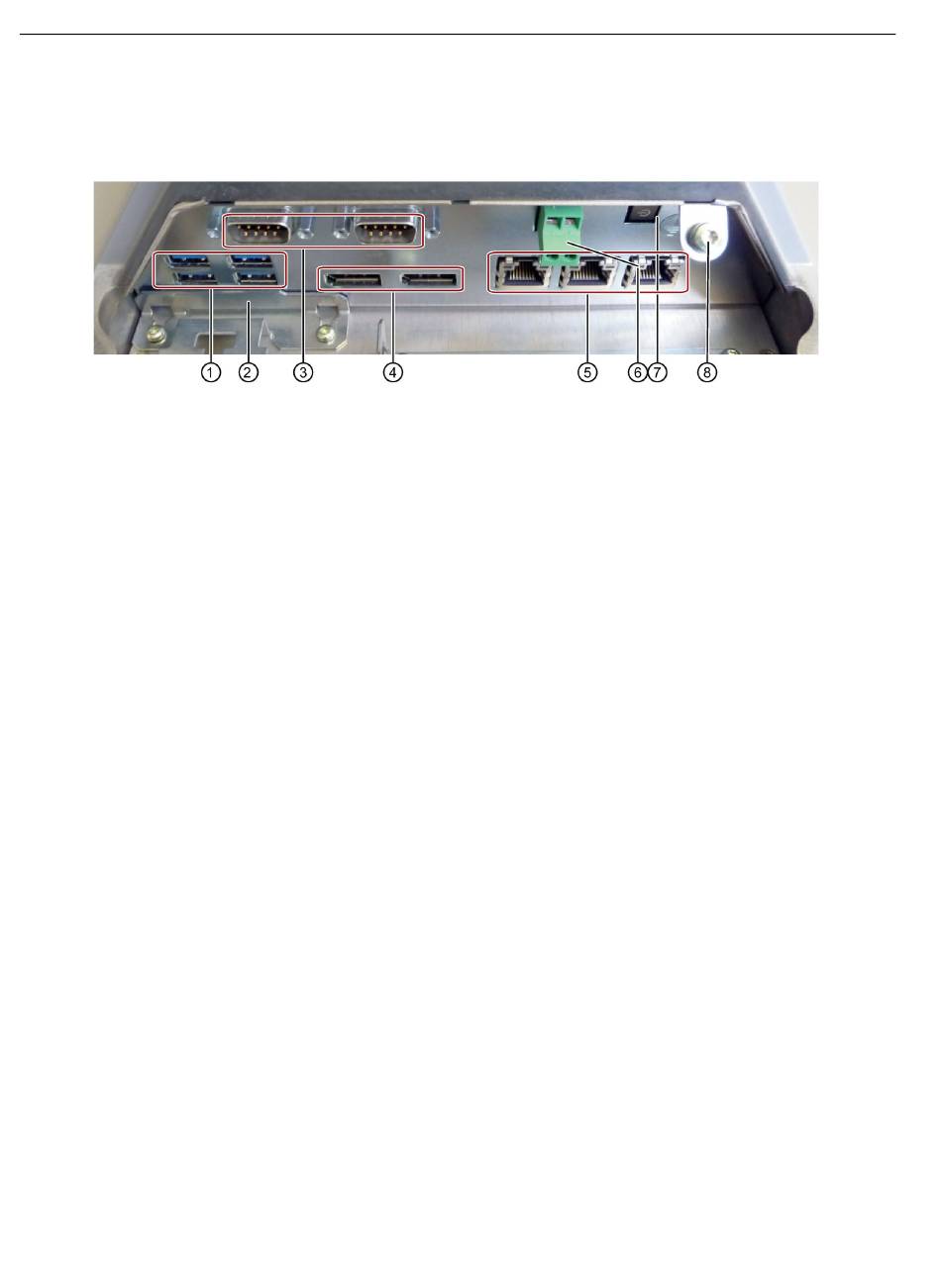

Interfaces and operator controls for PRO device

The assignment of the interfaces is shown inside the terminal compartment cover.
①
②
4 × USB interface (X60), (X61), (X62), (X63)
③
Slot (X50) for CFast card
COM1/2 port (optional)
• COM1 port (optional) (X30)
④
• COM2 port (optional) (X31)
2 x DisplayPort
• DisplayPort (X70)
⑤ • DisplayPort (X71)
3 × Ethernet interface (X1) P1, (X2) P1, (X3)
⑥
P1
Connection terminal
⑦
24 V DC power supply (X80)
⑧
On/off switch
Protective conductor connection
14
USB 3.0 high speed
Behind the strain relief
Serial port, 9-pin D-sub connector
RJ45 Ethernet port, 10/100/1000 Mbps
Connection terminal inserted in delivered condition
Operating Instructions, 08/2024, A5E39912462-AF
SIMATIC IPC477E PRO
