4.4.5
Installing the strain relief
The scope of delivery includes an accessories kit that contains the following strain reliefs and
the associated screws:
• Strain relief for USB and DisplayPort cable
• Strain relief for LAN RJ45 cable
Requirement
• Strain reliefs
• Screws
• Screwdriver T10
Procedure

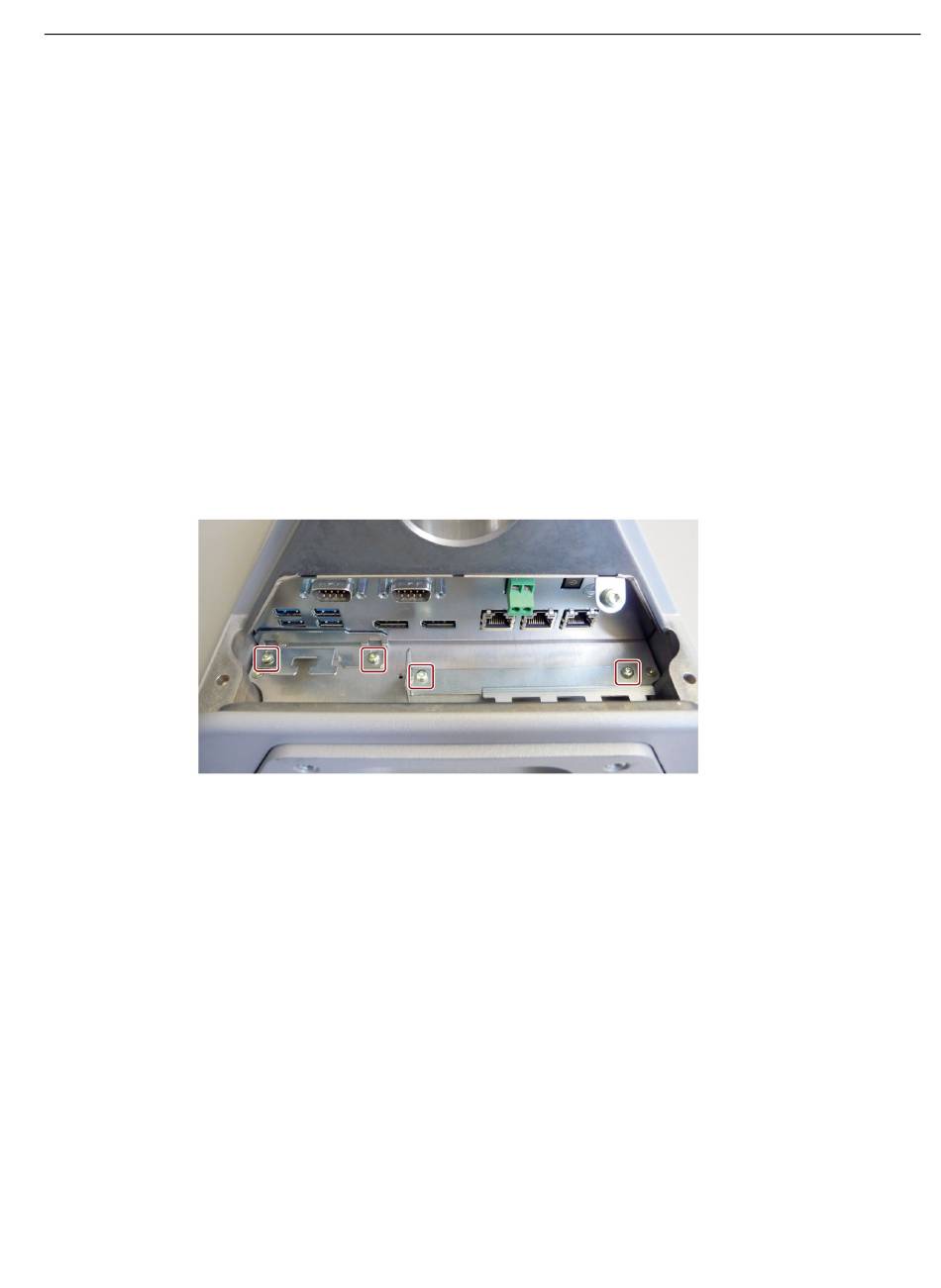

Fasten the two strain reliefs to the device using the enclosed screws.
SIMATIC IPC477E PRO
Operating Instructions, 08/2024, A5E39912462-AF
Mounting and connecting the device
4.4 Connecting the device
49
