Mounting and connecting the device

4.2 Permitted operating positions

4.2 Permitted operating positions
Operating position
The operating positions described below are permitted for the PRO devices.
• Standard operating position: Vertical installation in horizontal format
• Inclined installation in horizontal format with a vertical inclination of maximum ±45 °
The vertical installation in upright format is prohibited for the PRO device.
Note
To ensure heat dissipation of the device, keep at least 5 cm distance between the device and
neighboring walls or other devices/machines and make sure that there is adequate air flow.

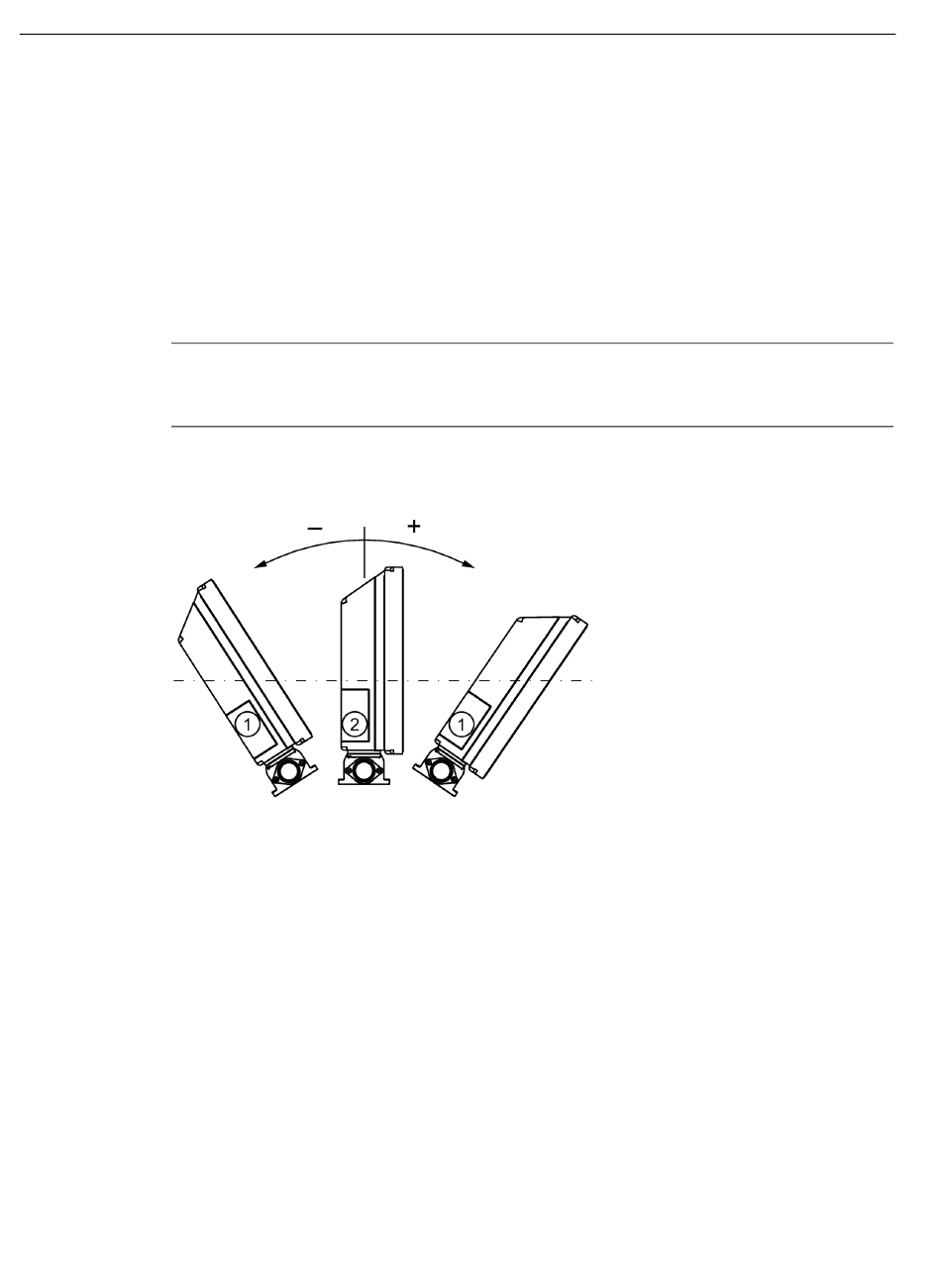

Device version prepared for pedestal/extension components (flange at bottom)
①
②
30
Operating Deviation from the vertical
position
Inclined ≤ 45°
Vertical 0°
