3. Remove the screws ⑤ of the terminal compartment cover.
①
②
③
④
⑤
4. Open the terminal compartment cover ⑤ and set it aside safely.
5. Insert all connection cables through the opening of the PRO device.
Make sure that the connecting cables are not damaged.
Recommendation: Route large connectors (e.g. RS232 connectors) and their cables
6. Attach the device with 4 M4x12 countersunk head screws to the base adapter ③ from the
through the pedestal or support arm first.
top, torque 2.5 Nm.
Make sure that the connecting cables are not pinched.
7. Connect all cables according to the description in the section Connecting the device
8. Fasten the cover plate ⑤ to the device with the 2 screws, torque 1.5 Nm.
(Page 40).
Check that the seal is sitting correctly.
SIMATIC IPC477E PRO
Operating Instructions, 08/2024, A5E39912462-AF

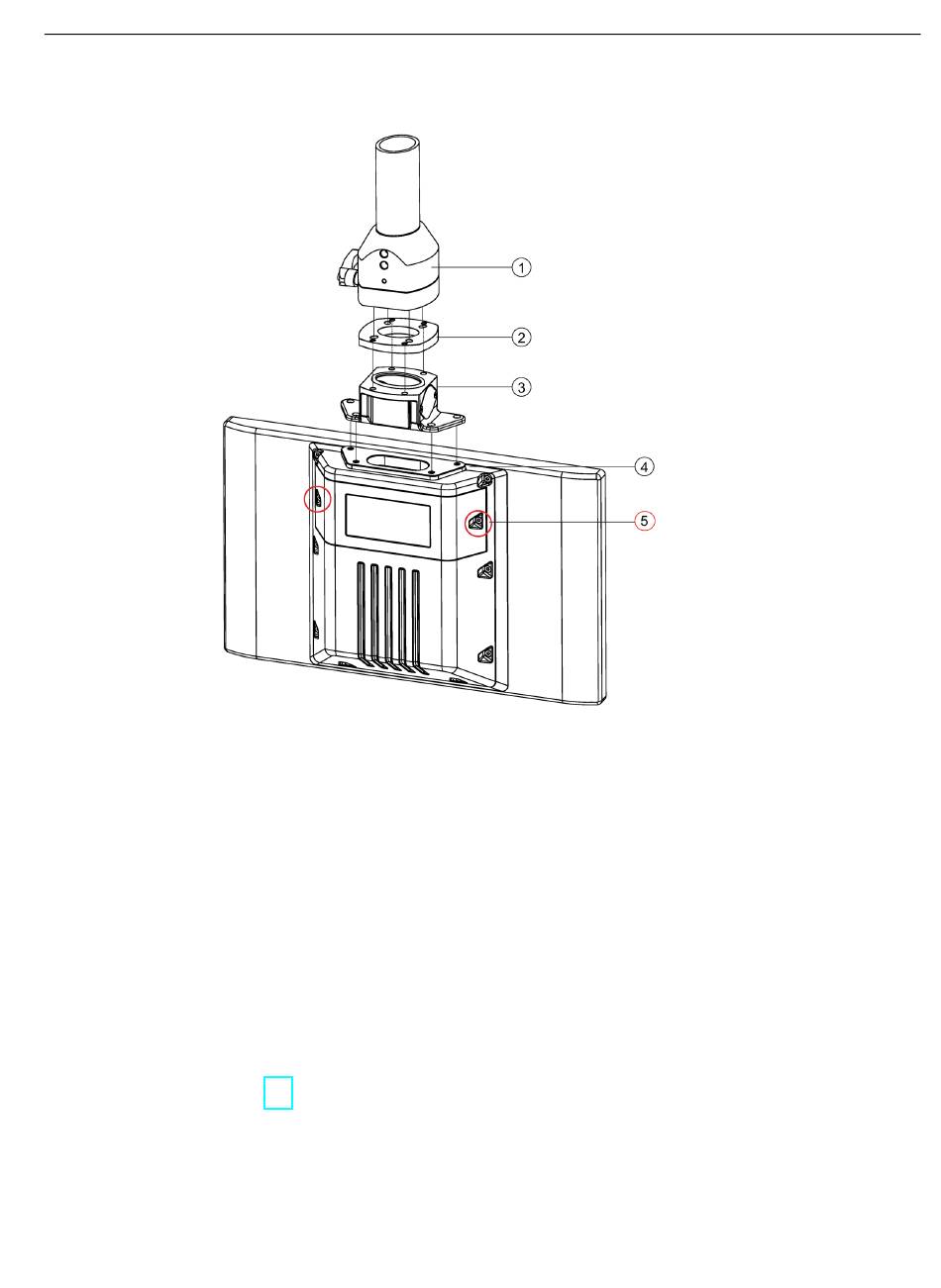

Support arm head
Intermediate plate
Base adapter
Countersunk head screws for device
Screws for terminal compartment cover
Mounting and connecting the device
4.3 Mounting the device
35
