HOMCOM 823-057V70 Use And Care Manual page 15

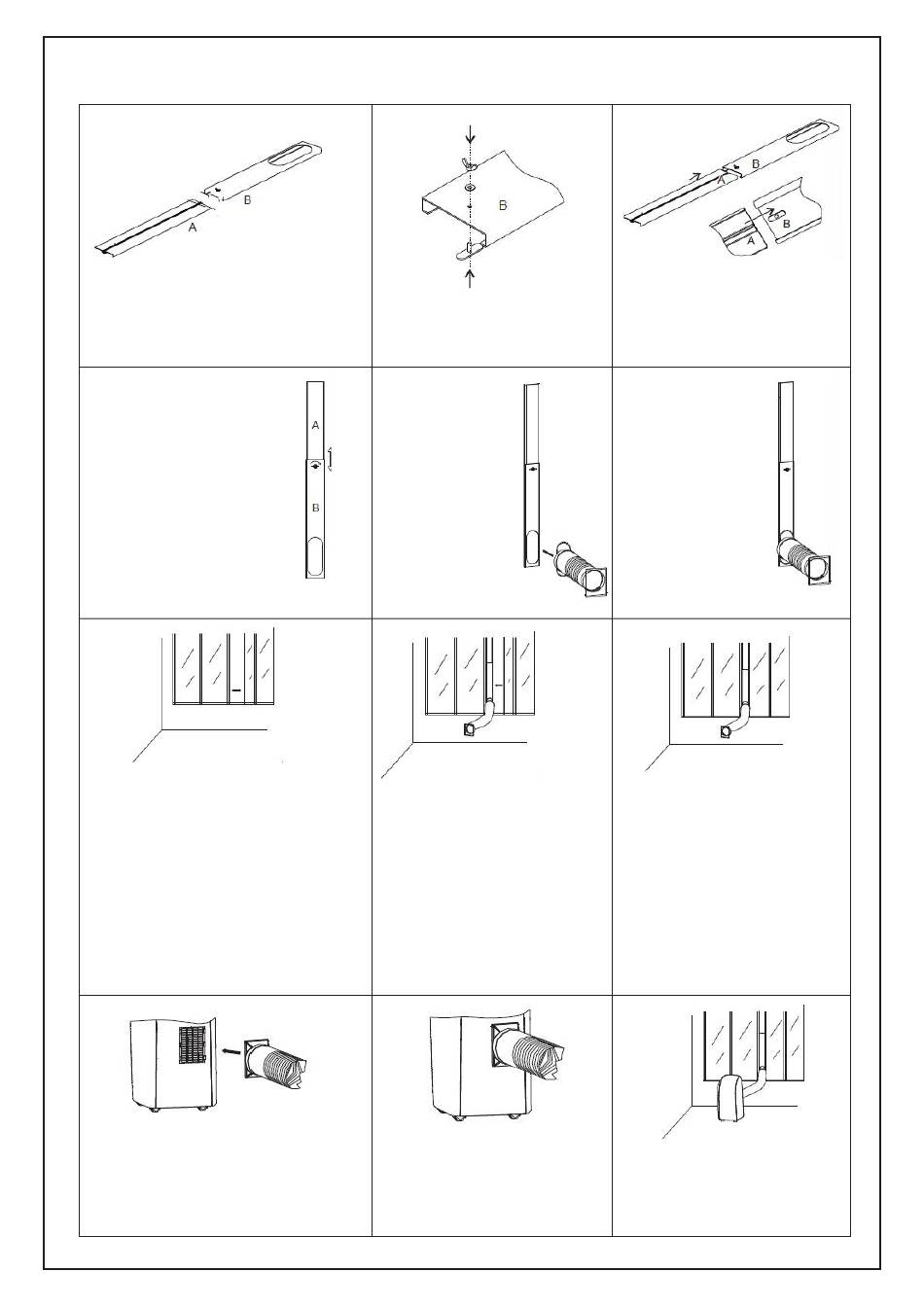

Install window kit
Fig.1
1.Separate both boards A
board,and B board
4. Assembly finished,
you can adjust A board
up or down, according
to height of the
window. Screw it unit it
is tight.
Fig.6
7. Open the window where need
install exhaust air duct,
window kit and their
accessories.
Fig.9
10.Connect another end of
exhaust air duct and its
accessories onto portable air
conditioner.
2. Screw the wing nut
through the B board. Leave
2/3 mm of free space.
5. Install
exhaust air
duct & its
accessories
into window
kit according
to arrowhead
direction.
Fig.3
Fig.7
8.Install exhaust air duct,
window kit and their
accessories onto
window, then close the
window according to
arrowhead direction in
Fig7 drawing to press
window kit tightly.
Fig.10
11. Exhaust air duct & its
accessories assembly
finished as Fig10
drawing illustrated.
15
3. Insert A board into B
board according to
arrowhead direction.
6. Assembly
finished.
Fig.4
Fig.8
9. Install exhaust air duct,
window kit and their
accessories onto
window according to
Fig8 drawing illustrated.
Fig.11
12. Whole unit assembly
well as Fig11 drawing
illustrated.
Fig.2
Fig.5
