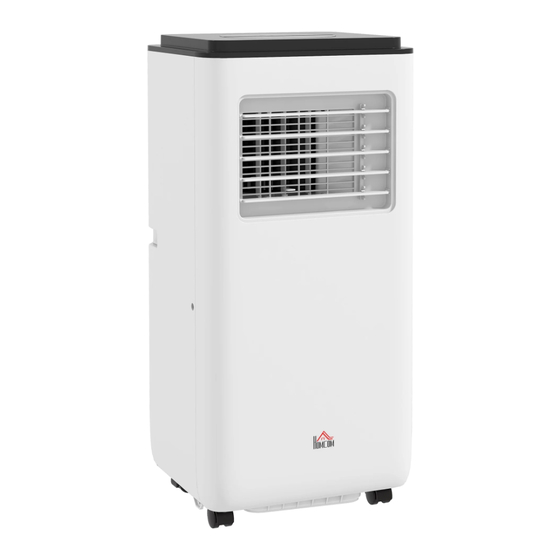

- Page 1 IN231000660V01_US 823-058V81_823-058V83 Mobile air conditioner IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY ASSEMBLY INSTRUCTION...
- Page 2 CONTENTS Safety--------------------------------------------------------------------1 Identification of parts--------------------------------------------------10 Control panel Remote-------------------------------------------------11 controller Protection-------------------------------------------------- Maintenance-----------------------------------------------------------16 Trouble shooting ------------------------------------------------------17 Installation Accessories and Select the best location-------------------------20 Installation - 21 Install Exhaust Hose and Adapter--------------------------------- Technical Specification---------------------------------------------- 23...
- Page 3 General information Reading and storing the user manual This user manual belongs to this portable air conditioner (referred to as the “product” below). It contains important information on how to set up and use the product. Before using the product, read the user manual carefully. This particularly applies to the safety instructions.
- Page 4 Caution, risk of fire! Safety Signal symbol/word definitions The following symbols and signal words are used in this user manual. This signal symbol/word designates a hazard WARNING! with a moderate risk, which may result in death or severe injury if not avoided. This signal word warns of possible damage to NOTICE! property.
- Page 5 − Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord. − Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. −...
- Page 6 − WARNING – Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the product is properly grounded.
- Page 7 Safety Awareness VERY IMPORTANT! Please do not install or use your portable air conditioner before you have carefully read this manual. Please keep this instruction manual for an eventual product warranty and for future reference. WARNING! Risk of electric shock! A faulty electrical installation, excessive line voltage, or incorrect operation may result in an electric shock.
- Page 8 − Never move, pull, or carry the product by its power cord. − Keep the product and the power cord away from open flames and hot surfaces. − Lay the power cord so that it does not pose a tripping hazard. −...
- Page 9 − Do not store or use combustible materials such as gasoline or other flammable vapors or liquids in the vicinity of this or any other appliances. − If the product is used in an unventilated area, the area shall be constructed so that should any refrigerant leak, it will not stay stagnate so as to create a fire or explosion hazard.
- Page 10 WARNING! Risk of explosion, leakage or health hazard! Improper handling of the batteries may result in explosion, leakage or personal injury. − WARNING: Do not ingest battery – Chemical burn hazard! Keep batteries away from children. − If the battery compartment does not close securely, stop using the remote control and keep it away from children.
- Page 11 − Under abusive conditions, liquid may be ejected from the battery; avoid contact. Liquid ejected from the battery may cause irritation or burns. − If battery fluid comes into contact with skin, eyes or mucous membrane, wash and rinse the affected area immediately with clean water.
- Page 12 Identification of parts Identification of parts Control panel Front Signal receptor Cold air outlet Remote controller Transport handle Evaporator air intake Air outlet hose Primary drain port Back POWER COOL SPEED DEHUMIDIFY TIMER The figures in this manual are based on the external view of a standard model. Consequently, the shape may differ from that of the air conditioner you have selected.
- Page 13 mobile Power button Speed button Timer/Temperature up button Mode button Timer button Timer/Temperature down button Sleep button 、 high Fan speed Dehumidify Fan mode ,and eating odel peration. a) Plug in,then the unit beeps once. “ ” 87.8 °F (31 °C) . 59 °F (15 °C) - “...
- Page 14 mode ： 1.Once the Operation is selected, the indoor temperature sensor operates automatically to select the desired operation mode with ,the unit willautomatically select mode 75.2°F (24°C) ≥ 2.When the room temperature 75.2°F (24°C) ,the unitwill automatically select mode ＜ 3.When the room temperature ：...
- Page 15 POWER BUTTON COOL BUTTON POWER Press this button to select cool mode. COOL + and - BUTTON Press to adjust room temperature and timer. SPEED SPEED BUTTON DEHUMIDIFY Press to select fan speed in sequence TIMER DEHUMIDIFY BUTTON Press this button to select dehumidify mode. FAN BUTTON Press this button to select fan mode.
- Page 16 Inserting and replacing the batteries WARNING! Choking hazard! If children or animals swallow the batteries, there is a high health and choking hazard. − Keep the battery out of reach of children. − If you suspect a battery to have been swallowed, seek immediate medical attention.
- Page 17 Cooling Dehumidifying Special reminder: there is condensing water recycling hidden within this unit. The condensing water is partly kept recycling between the condenser and the water plate. When the water level rises to the upper level, the float switch and water full indicator (E4) lights on to remind draining water. Please cut off the power supply, move the appliance to a suitable place, remove the drain plug, drain water completely.
- Page 19 “E4”...
- Page 20 Before claiming repair, check the machine as follows: Failures Causes Solutions 1. Plug in; 2. Replace the power cord or Power supply failure: socket; 1. Not plugged; Machine fails to start up. 3. Replace the fuse by service 2. Plug or socket damaged; provider (Specification: 3.
- Page 21 Installation Installation accessories Drain Pipe Wing nut set...
- Page 22 How to connect the connectors to the Air exhaust duct 1.Extend the air exhaust duct by drawing out the two ends of the duct. 2.Screw the air exhaust duct into the connector of air exhaust duct. 3.Screw the connector of window into the plastic connector. 4.Connect the connector of air exhaust duct to the unit.
- Page 23 Install Window Kit Fig. 1 Fig. 2 1. Separate both boards A board, 2. Screw the wing nut through 3. Insert A board into B board and B board the B board. Leave 2/3 mm of according to arrowhead free space. direction.
- Page 24 Fig. 9 Fig. 10 Fig. 11 10. Connect another end of exhaust 11. Exhaust air duct & its 12. Whole unit assembly well as air duct and its accessories accessories assembly finished Fig11 drawing illustrated. onto portable air conditioner. as Fig10 drawing illustrated.
- Page 25 Technical specifications Model 823-058V81BK(FDP23-2024V1R3) 823-058V81WT(FDP23-2024V1R3) Cooling Capacity 80000Btu/h (Ashare) 50000Btu/h (Ashare) Cooling Inpuy Power/Current 860W /7.0A Air Flow Volume (m³/h) 250m3/h 115V~/60Hz RatedVoltage /Frequenc(V/Hz) L :53dB(A) Sound Pressure Level ( dB (A) ) L :64dB(A) Net Weight (Kg) 18.5kg Body（mm） 330X280X704 Dimensions ×...
- Page 26 Technical specifications FDP29-2024V1 Model Cooling Capacity 2900W Dehumidifying Capacity (L/h) 1.1 L/h 1000W/9.2A Cooling Inpuy Power/Current Air Flow Volume (m³/h) 270m³/h 115V~/60Hz RatedVoltage /Frequenc(V/Hz) L :53dB(A) Sound Pressure Level ( dB (A) ) L :64dB(A) Net Weight (Kg) 21kg Body（mm） Dimensions 330X280X704 ×...
