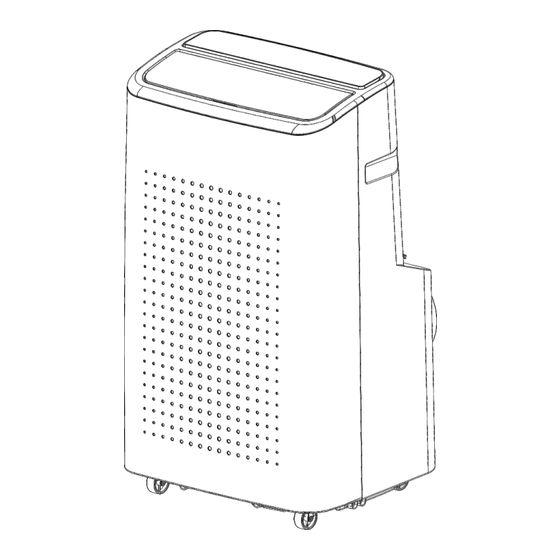

HOMCOM 823-047V70 Instruction Manual

Local air conditioners
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IN231000558V01_UK
823-047V70
Local air conditioners
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
Instruction manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 823-047V70 and is the answer not in the manual?

Questions and answers

Related Manuals for HOMCOM 823-047V70

Summary of Contents for HOMCOM 823-047V70

  • Page 1 IN231000558V01_UK 823-047V70 Local air conditioners IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY Instruction manual...

  • Page 2: Table Of Contents

    Contents I. Attention Matters....................3 II. Features and Components................4 III. Control Setting....................6 IV. Protection Functions....................8 V. Installation and Adjustment ................8 VI. Drainage Instructions..................10 VII. Maintenance....................11 VIII. Troubleshooting..................13 IX. Addendum....................14 The refrigerant used in mobile air conditioners is the environmentally friendly hydrocarbon R290.This refrigerant is odorless, and compared to the alternative refrigerant, the R290 is an ozone-free refrigerant, and its effect is very low.

  • Page 3: Attention Matters

    I. Attention Matters Warning matters: 1. Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. 2. The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater.) 3.

  • Page 4: Features And Components

    hands gently to avoid damaging wind-guide strips.*When moving the machine, make sure that it is in an upright position. * The machine should stay away from gasoline, flammable gas, stoves and other heat sources. * Don't disassemble, overhaul and modify the machine arbitrarily, otherwise it will cause a machine malfunction or even bring harm to persons and properties.
  • Page 5 The Max operation temperature for the air conditioner Cooling: 35/24℃; heating:20/12 ℃; Temperature operation range: 7-35℃. 2. Components:...

  • Page 6: Control Setting

    III. Control Setting I. Operating instructions: 1. Power Key: Press this key to turn on and turn off the unit. 2. Mode Key: In the case of power on, press this key to switch between cooling → fan → dehumidifying mode. Press the key, when the timing symbol flashes, press up and down key to select the required timing value.
  • Page 7 Information on How to Use the App This appliance allows you to operate the appliance via your home net-work. A prerequisite is a permanent Wi-Fi connection to your router and the free app “Smart Life - Smart Living”. You can easily access all functions of the appliance via the app. Since the app constantly improved, we cannot provide a more detailed description here.

  • Page 8: Protection Functions

    3. Up: press the key to increase temperature and timing set value. 4. Down: press the key to reduce temperature and timing set value. 5. Fan: press the key to select high, medium and low wind speed output circularly. 6. Timer: press the key to set timing value.
  • Page 9 Figure 1 Figure 2 Figure 3 1.2 Install the window sealing plate assembly 1) Half open the window, and mount the window sealing plate assembly to the window (as shown in Figure 2 and Figure 3); the assembly can be placed in horizontal and vertical direction.

  • Page 10: Drainage Instructions

    Figure 5 Figure 6 Important Notice The length of the exhaust hose shall be 280~1,500mm, and this length is based on the specifications of the air conditioning. Do not use extension tubes or replace it with other different hoses, or this may cause a malfunction. Exhaust must be unobstructed; otherwise it may cause overheating.

  • Page 11: Maintenance

    2. Continuous drainage (only applicable to cooling and dehumidification mode), as shown in figure: 1) Unscrew the rotary knob, and unplug rubber stopper. 2) Set the drainage pipe into the water outlet. 3) Connect the drainage pipe to the bucket. VII.
  • Page 12 2. Clean the upper filter screen frame 1) Unscrew one screw fixed by EVA filter net and back shell with screwdriver, and take out EVA filter net. 2) Put the EVA filter screen into warm water with neutral detergent (about 40℃ / 104℉) and dry it in the shade after rinsing clean.

  • Page 13: Troubleshooting

    VIII. Troubleshooting Do not repair or disassemble the air conditioning by yourself. Unqualified repair will lead to failure of the warranty card, and may cause damage to users or their properties. Reasons Solutions Problems Turn it on after connecting it to a There is no electricity.

  • Page 14: Addendum

    IX. Addendum Fuse Parameters Type: 5H, 5N, 932 or 5TE Voltage: 250V Current: 3.15A Schematic Diagram Capillary Condenser Evaporator Compressor All the technical and specific parameters,please refer to product nameplate. Due to continuous improvement,we reserve the right to change some design without any notice.
