Taking a Closer Look

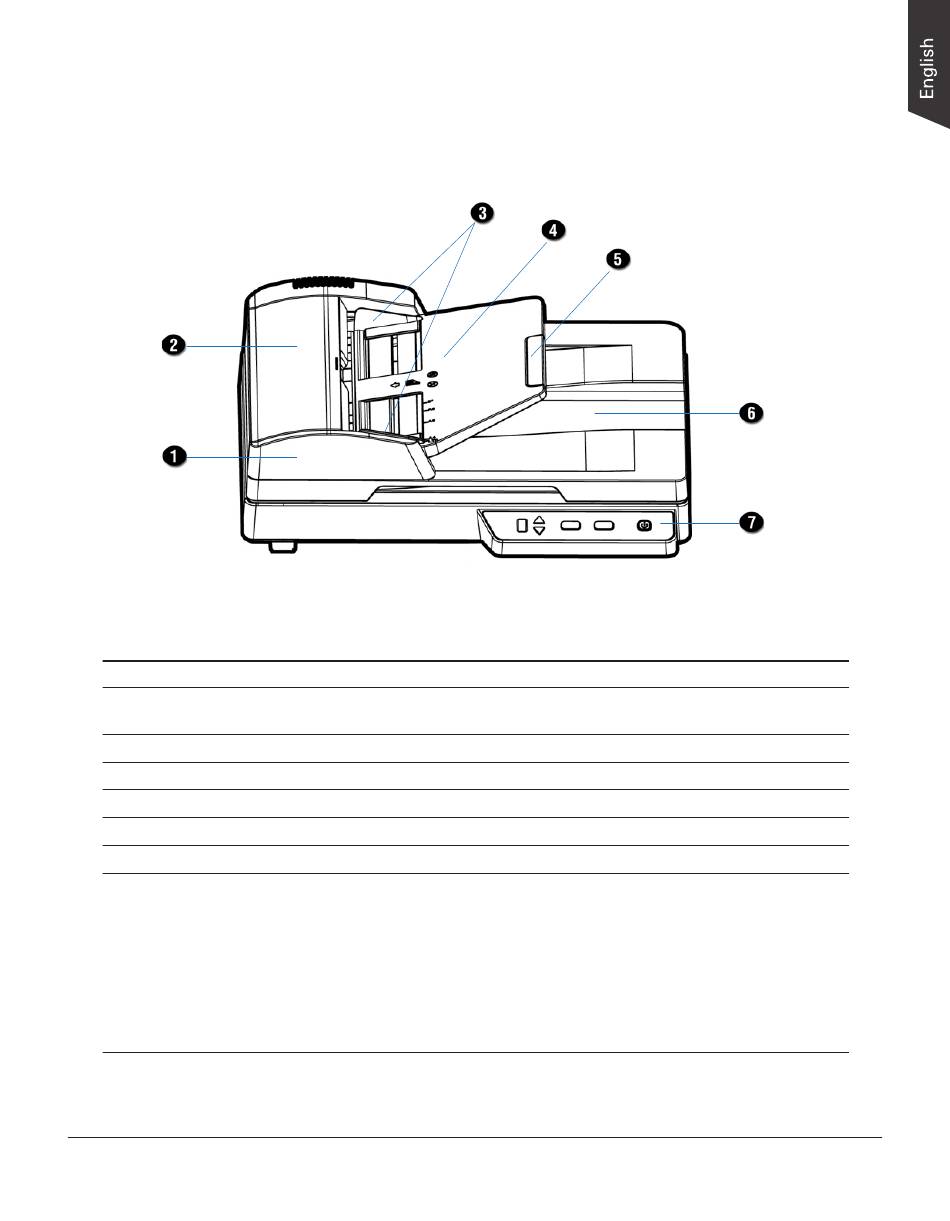

Front View

No. Names of Parts
1 ADF (Scanner Lid)
2 ADF Cover
3 Guide Arm
4 Document Feed Tray
5 Tray Extender
6 Document Output Tray
7 Button Panel
• Power button
• Scan button
• Stop button
• Up/Down button
• LED display
Functions of Parts
Used to scan a stack of documents and cover the glass
surfaces of the flatbed.
Used to cover the inner parts of the ADF.
Slides to hold a stack of documents.
Holds the high-volume documents to be fed.
Used to extend the length of the Document Feed Tray.
Stores a stack of documents which have been scanned.
Turns the scanner on or off.
Starts a scan job immediately based the
the Scanner Button Settings interface.
Cancels the ongoing scan job.
Toggles through the numbers of predefined function buttons.
Displays the selected function button number.
settings configured in
FileScan 2325 User's Manual 9
