Microtek FileScan 3125c Start Here Manual

Hide thumbs Also See for FileScan 3125c:

Advertisement

Quick Links

Download this manual

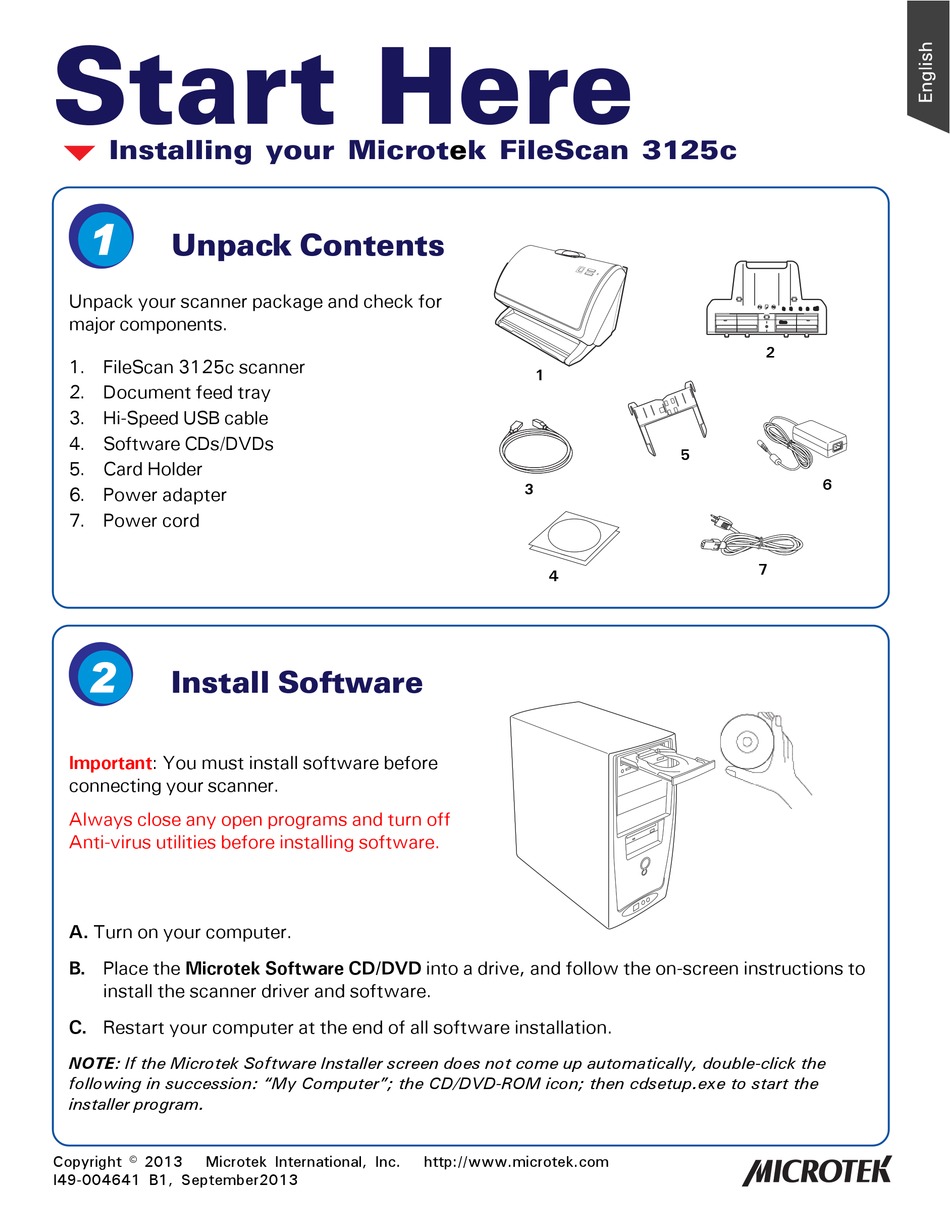

Start Here
Installing your Microtek FileScan 3125c
Unpack Contents
Unpack your scanner package and check for
major components.
1. FileScan 3125c scanner
2. Document feed tray
3. Hi-Speed USB cable
4. Software CDs/DVDs
5. Card Holder
6. Power adapter
7. Power cord

Install Software

Important: You must install software before
connecting your scanner.
Always close any open programs and turn off
Anti-virus utilities before installing software.
A. Turn on your computer.
B. Place the Microtek Software CD/DVD into a drive, and follow the on-screen instructions to
install the scanner driver and software.
C. Restart your computer at the end of all software installation.
NOTE: If the Microtek Software Installer screen does not come up automatically, double-click the
following in succession: "My Computer"; the CD/DVD-ROM icon; then cdsetup.exe to start the
installer program.
Copyright © 2013
Microtek International, Inc.
I49-004641 B1, September2013
1
3
4
1
http://www.microtek.com
2
5
6
7

Advertisement

loading
Need help?

Need help?

Do you have a question about the FileScan 3125c and is the answer not in the manual?

Questions and answers

Related Manuals for Microtek FileScan 3125c

Summary of Contents for Microtek FileScan 3125c

  • Page 1: Install Software

    Anti-virus utilities before installing software. A. Turn on your computer. B. Place the Microtek Software CD/DVD into a drive, and follow the on-screen instructions to install the scanner driver and software. C. Restart your computer at the end of all software installation.
  • Page 2 Install the Document Feed Tray Before using the Document Feed Tray with your scanner, you need to install it on the scanner. Follow the instructions and graphs below to correctly install the Document Feed Tray. A. Lift up the Release button in the direction of the arrow shown to open the scanner cover.

  • Page 3: Connect Scanner

    LED (green) will brighten, and the scanner is ready to scan. Customize the Function Button The FileScan 3125c is equipped with one Select and one Enter buttons, used to automate a number of customized and predefined operations, such as scanning to a file, sending an image to your printer, scanning for OCR, etc.
  • Page 4 Position Documents The scanner supports scanning of document in various materials, such as A4 printouts, insurance papers, legal documents, postcards, credit cards, business cards, and etc. A stack of up to 100 sheets can be fed in the scanner’s Document Feed Tray. Paper sizes can range from 2.91"...
  • Page 5 Position Documents (Cont.) To Load Cards 1. Slide the Guide Arms toward the center of the feed tray and free up the enough space to put the Card Holder. Guide Arms Card Holder 2. To install the Card Holder into the feed tray, with its front side up, slide the Card Holder along the sides of the Guide Arms down until it completely hangs on the arms.
  • Page 6 Scan a Stack of Documents 1. Load the stack of documents to be scanned into the Document Feed Tray. WARNING: Do not place photo paper or fragile sheets of paper on the feed tray, as doing this will damage the original photo or frail papers during the feeding process. 2.
  • Page 7 “Main”) Scanning settings Preview image (the enclosed frame bordered in red) Preview window Window expansion button Image type Image correction settings NOTE: For details on other scanning scenarios applicable to the FileScan 3125c, refer to the FileScan 3125c User’s Manual.

  • Page 8: Fixing Paper Jams

    Fixing Paper Jams 1. Lift up the Release button in the direction Release button of the arrow shown to open the scanner cover. Scanner cover 2. Remove the jammed paper by taking out it in a forward-moving direction. 3. Close the scanner cover. You would hear a click sound when the scanner cover returns to its original position.
  • Page 9 Speed USB cable from the back of your computer, and refer to the installation instructions in this guide or the FileScan 3125c User’s Manual. 3. When trying to scan, an error message appears on your screen that reads, “Can’t Find Scanners”.
  • Page 10 After you finish the installation of software, if you found that the installed drivers and software cannot run your product or your computer system properly later, please go to the Microtek Download Service site at ww7.microtek.com.tw/service.php to download and install any updates you may require.
