MAN#650177
Kit Includes:
Installation:
1. Remove the tail light lens.
2. Remove the light bulb
3. Remove the original bulb connector from the back side of the housing.
4. Now is a good time to clean the lens and housing. If lenses are in bad shape a new set is
recommended.
5. Remove the two screws and mounting plate from the side of the new LED assembly.
6. Insert the new LED assembly into the taillight housing and route wires through the hole where
the original bulb and connector were located. Use caution when feeding the wires through to
INSTALLATION INSTRUCTIONS
LAT-NR150

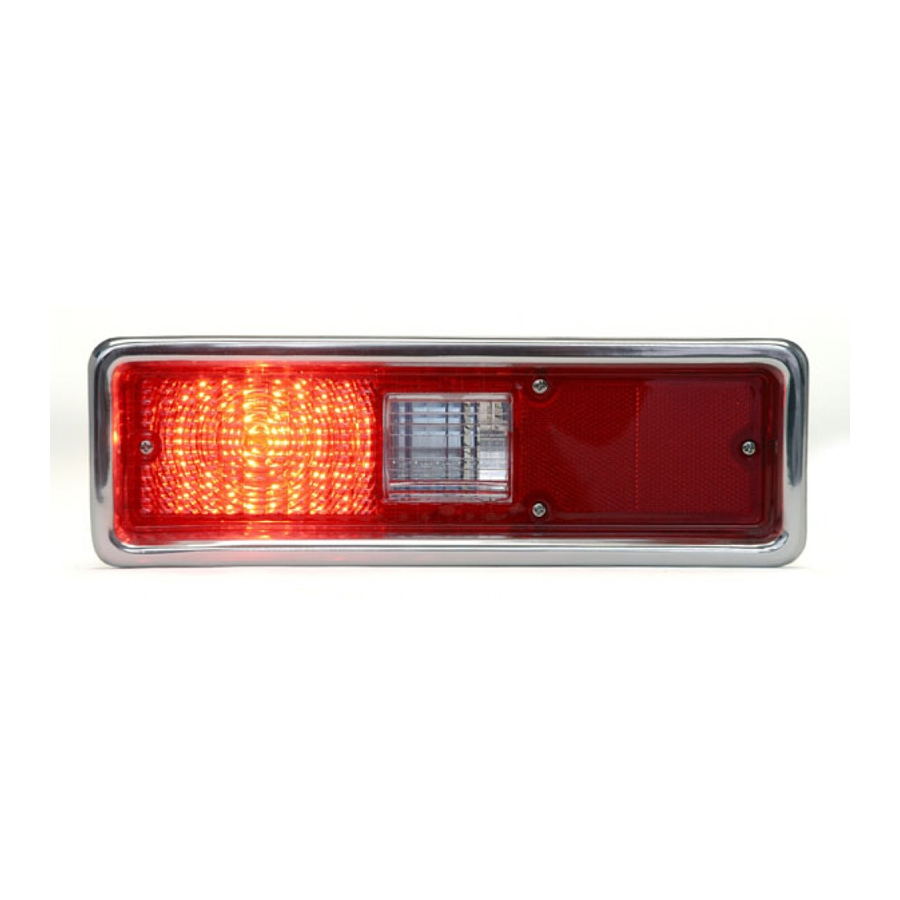

LED Tail Lights for 1970-72 Nova
MAN#650177
Advertisement
Related Manuals for Dakota Digital LED Tail Lights LAT-NR150
Summary of Contents for Dakota Digital LED Tail Lights LAT-NR150
- Page 1 MAN#650177 Kit Includes: Installation: 1. Remove the tail light lens. 2. Remove the light bulb 3. Remove the original bulb connector from the back side of the housing. 4. Now is a good time to clean the lens and housing. If lenses are in bad shape a new set is recommended.
- Page 2 avoid damaging the wire insulation. 7. Feed the wires through the larger hole in the mounting plate and guide it to the bottom of the housing. The flat side of the mounting plate should be on the outside of the housing and the side with the slight raised center should go toward inside of the housing.
- Page 3 This Warranty is in lieu of all other expressed warranties or liabilities. Any implied warranties, including any implied warranty of merchantability, shall be limited to the duration of this written warranty. No person or representative is authorized to assume, for Dakota Digital, any liability other than expressed herein in connection with the sale of this product.
