Dakota Digital Car Accessories LAT-NR162 Installation Instructions

Led tail lights for ’66 impala/caprice and ’67 caprice

Download this manual

MAN#650160

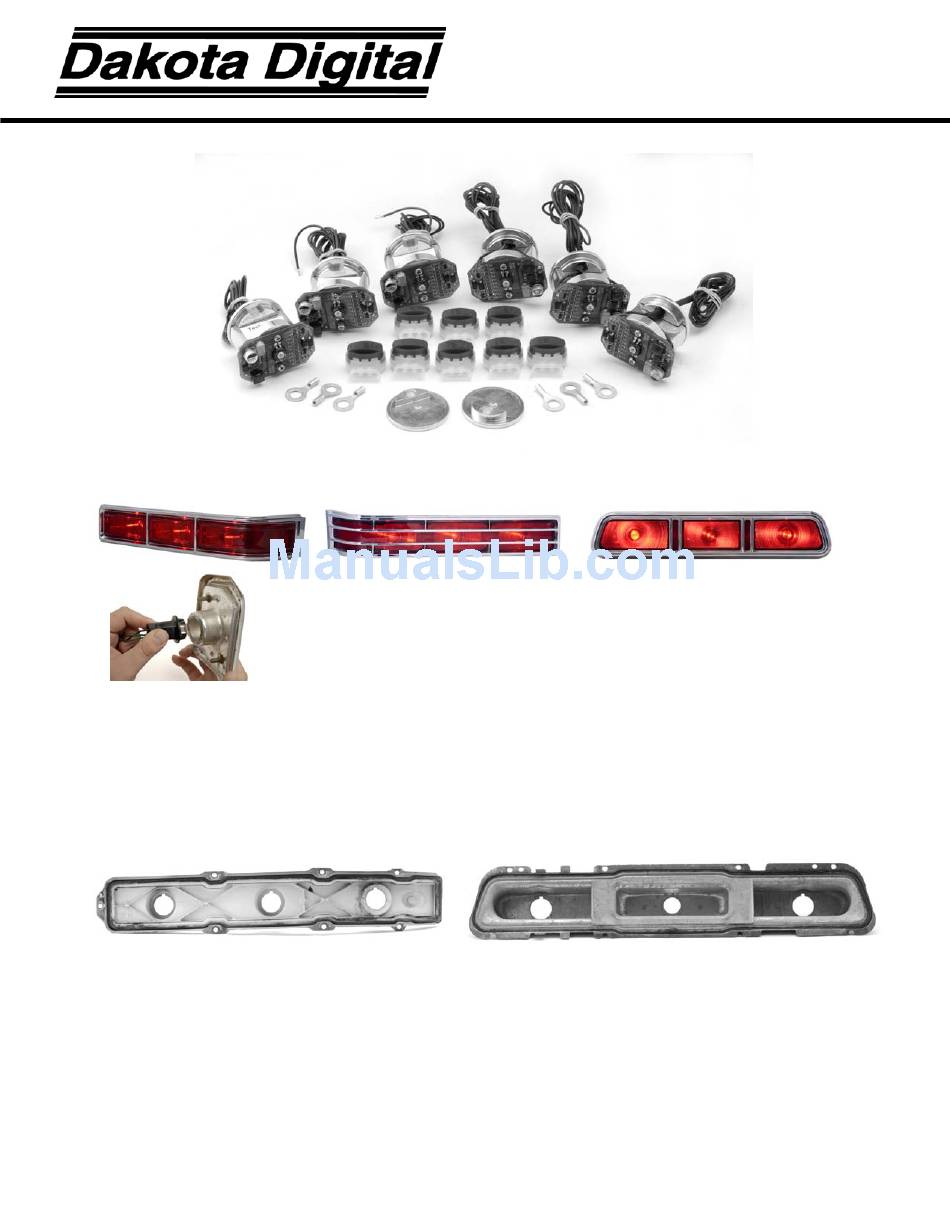

Kit Includes:

Installation:

'66 Impala

1. Remove the original bulb connector from the back side of the housing.

2. Remove the light bulb.

3. Remove the tail light housing from the car. There are nuts inside the trunk on the back side of

the housing.

4. Remove the chrome trim plate and tail light lens. These screws are on the back side of the

housing.

5. Now is a good time to clean the lens and housing. If lenses are in bad shape a new set is

recommended.

INSTALLATION INSTRUCTIONS

LAT-NR162

LED Tail Lights for '66 Impala/Caprice and '67 Caprice

'66 Caprice

'67 Caprice

MAN#650160

Page 1 MAN#650160 Kit Includes: Installation: ’66 Impala 1. Remove the original bulb connector from the back side of the housing. 2. Remove the light bulb. 3. Remove the tail light housing from the car. There are nuts inside the trunk on the back side of the housing.
Page 2 6. Remove the screw and aluminum back plate from the new LED assembly. The center hole in the ’67 Caprice is smaller and offset so there is a special back plate supplied for this application. LED assembly Standard back plate 7.
Page 3 If you are replacing only the rear turn signals you should be able to use a heavy duty electronic flasher from your local parts store. If you are replacing both front and rear or do not have front bulbs you will need a no-load flasher, Dakota Digital part number LAT-NLF.
Page 4: Service And Repair
This Warranty is in lieu of all other expressed warranties or liabilities. Any implied warranties, including any implied warranty of merchantability, shall be limited to the duration of this written warranty. No person or representative is authorized to assume, for Dakota Digital, any liability other than expressed herein in connection with the sale of this product.
