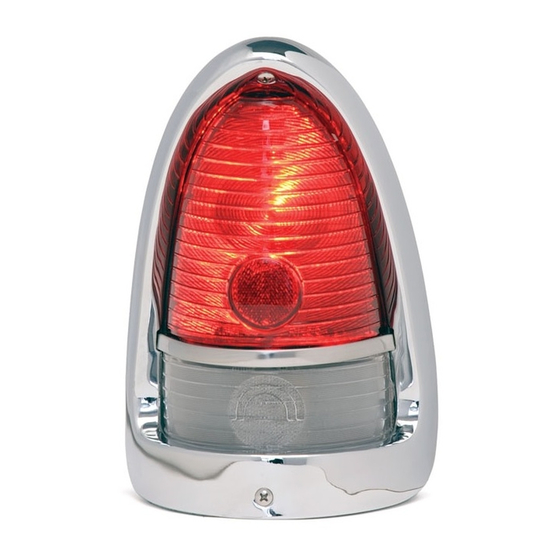

Dakota Digital LED Tail Lights for 1955 Chevy Car LAT-NR190 Installation Instructions

MAN#650183
Kit Includes:
Installation:
1. Remove the chrome trim pieces and tail light lens.
2. Remove the light bulb
3. Push and twist to remove the plastic bulb socket from the back side
of the housing.
4. Now is a good time to clean the lens and housing. If lenses are in bad shape a new set is
recommended.
5. Remove the nut and flat plastic back plate from the back of the new LED assembly.
6. Make sure that one wire is still going through each hole in the aluminum
spacer. Insert the new LED assembly into the hole where the original
bulb and connector were located. Use caution when feeding the wires
through to avoid damaging the wire insulation.
7. Guide the wires through the plastic back plate and slide the back plate
onto the stud sticking out the back side of the housing. Ensure wires are
not pinched to avoid shorting!
8. Secure the back plate with the supplied #6 lock nut.
9. Make sure the original lens gasket is in place and replace the taillight lens.
Tighten the screws down carefully. Replace the chrome trim pieces.
INSTALLATION INSTRUCTIONS
LAT-NR190
LED Tail Lights for 1955 Chevy Car
MAN#650183
