ASSEMBLY MANUAL
Record serial number

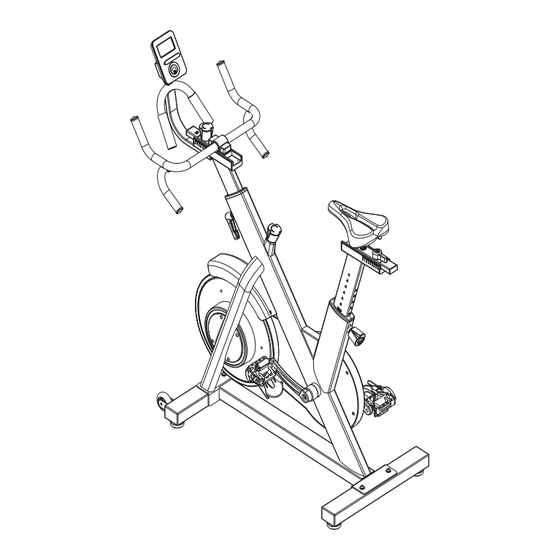

Elite Peltex Spin Bike

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the peltex and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elite Fitness peltex

Summary of Contents for Elite Fitness peltex

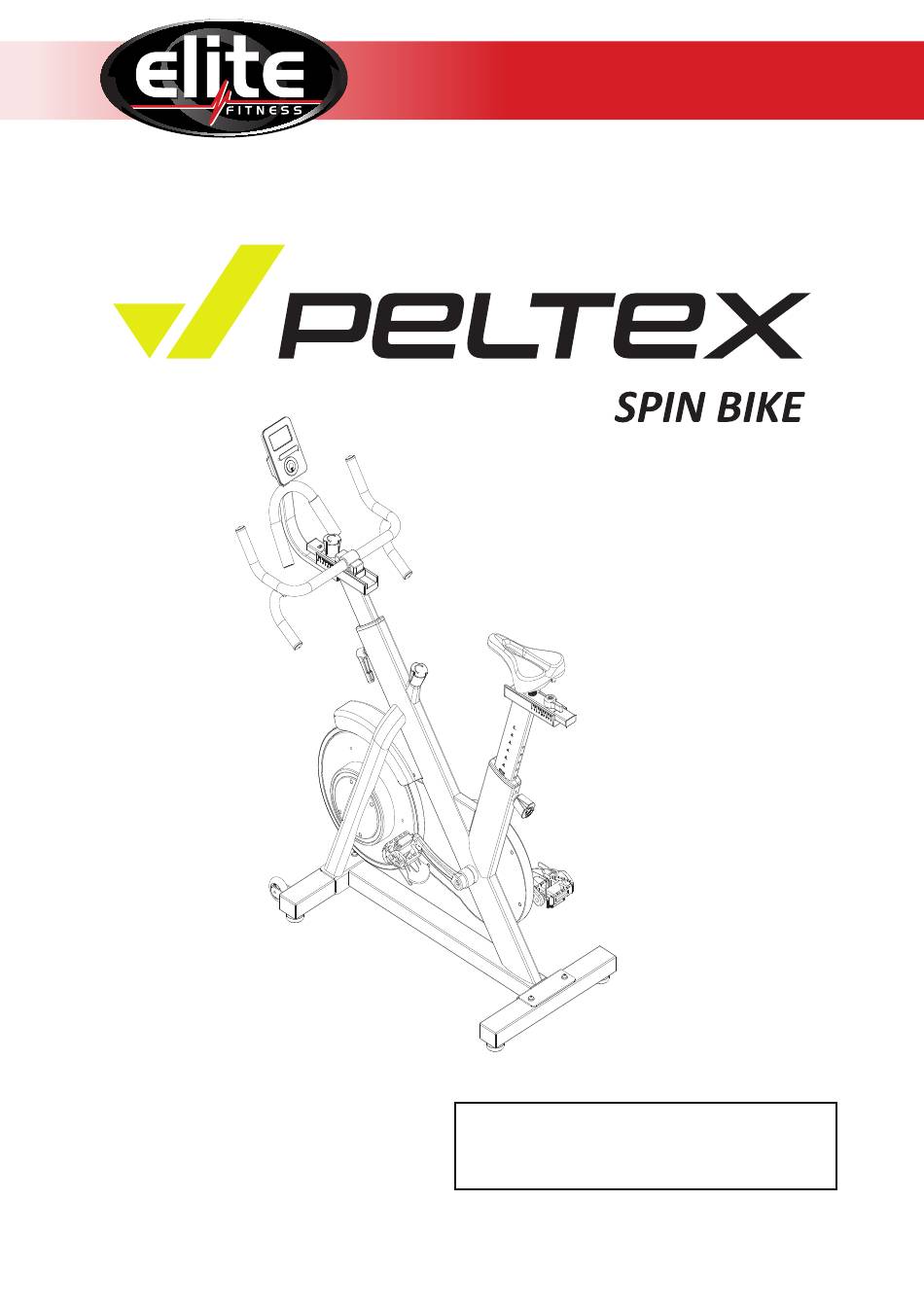

  • Page 1 ASSEMBLY MANUAL Record serial number Elite Peltex Spin Bike...
  • Page 2 Elite Peltex Spin Bike. Elite Peltex Spin Bike. SERVICE & WARRANTY Elite Fitness HQ CONTENTS Parts List Hardware Package Assembly Complete...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THE MACHINE CONSULT A PHYSICIAN IMMEDIATELY. ELITE PELTEX SPIN BIKE ASSEMBLY MANUAL...

  • Page 4: Product Specifications

    120 KGS. PRODUCT SPECIFICATIONS 120 KG 44.5 KG 38.8 KG...

  • Page 5: Parts List

    Handle bar cover Flywheel Washer d6*φ12*1 Handlebar Of Horizontal Saddle Tube Flywheel shaft Locking Core Bolt M5*10*Φ9.5 Limiter Pin φ3*20 Front cover Bolt M4*12 Cover Limiter Bushing Rubber φ11*φ8*3 Bolt ST3*16*φ5.6 Horizontal Saddle Tube Stationary knob ELITE PELTEX SPIN BIKE ASSEMBLY MANUAL...
  • Page 6 PARTS LIST End Cap J40*20*17 Brake Rod Cover Lower sliding plate Bushing Washer d20 Bolt Φ10*285*M10*15*M6*7*M10*95 Bearing Bushing Φ16*Φ10.5*78 Spacer Square Nut M10 Wave washer d20*Φ26*0.3 Hexagon Nut M10*H19*S17 Nut M6*H14*S10 Bolt ST4.2*16 Bolt M6*10 Inner Cover Nylon Nut M10 Bolt ST4.2*8 Bolt M6*52 Belt...

  • Page 7: Hardware Package

    HARDWARE PACKAGE #D S13-15 1PC ELITE PELTEX SPIN BIKE ASSEMBLY MANUAL...
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 1 Using wrench (A), remove the bolts (14), spring washers (15), and washers (16) from both the front stabiliser (45) and rear stabiliser (48). Using wrench (A), fasten the front stabiliser (45) and rear stabiliser (48) to the main frame (38) using the bolts (14), spring washers (15), and washers (16).
  • Page 9 (18) into the main frame (38), adjus�ng it as needed and aligning it with the hole of the L-type handle (20). Secure the handlebar tube join (18) within the main frame (38) by �ghtening the L-type handle (20) firmly. ELITE PELTEX SPIN BIKE ASSEMBLY MANUAL...
  • Page 10 ASSEMBLY INSTRUCTIONS STEP 3 Using wrench (A), carefully remove the bolts (14), spring washers (15), and washers (16) from the handlebar tube join (18). Ensure a secure connec�on between trunk wire 1 (11) and trunk wire 2 (19). Insert the wire into the computer post (10), then insert the computer post (10) into the handlebar tube join (18).
  • Page 11 Place the handlebar join (17) onto the horizontal handlebar tube (109). Secure the handlebar join (17) within the horizontal handlebar tube (109) using the bolts (13), spring washers (108), and washers (73) with wrench (C). Then, a�ach the cover (22). ELITE PELTEX SPIN BIKE ASSEMBLY MANUAL...
  • Page 12 ASSEMBLY INSTRUCTIONS STEP 5 #D S13-15 1PC Using the spanner (B), carefully loosen the 4 bolts (3) from the computer (1). Ensure a secure connec�on between wire (1a) and trunk wire 1 (11). Fasten the computer (1) onto the computer holder (2) using 4 bolts (3) and spanner (B). Securely �ghten the pedals (36L/R) into the crank (89L/R) using spanner (B).
  • Page 13 ASSEMBLY COMPLETE Assembly of your Elite Peltex Spin Bike is now complete! Be sure to fully inspect your machine before using it for the first �me. Elite Peltex Spin Bike ELITE PELTEX SPIN BIKE ASSEMBLY MANUAL...
  • Page 14 INSTRUCTIONS Func�onal Bu�on: • MODE: Press to select func�ons. Hold for 5 seconds to switch between KM/H or Mile/H. Func�on and Opera�ons: • SCAN: Press MODE un�l "SCAN" appears; monitor will cycle through: �me, calories, speed, distance, and total distance. Each display will hold for 4 seconds. •...
  • Page 15 EXPLODED DIAGRAM ELITE PELTEX SPIN BIKE ASSEMBLY MANUAL...
  • Page 16 SETTING YOUR SPIN BIKE UP Saddle Height Adjustment Adjusting the Seat Fore-and-Aft Position Adjusting the Seat Fore-and-Aft Position Saddle Height Adjustment...
  • Page 17 SETTING YOUR SPIN BIKE UP Handle Bar Adjustment Please note: The spin bikes shown in the ‘setting up your spin bike’ section are for demonstration purposes only and your spin bike my vary in aesthetics and features. ELITE PELTEX SPIN BIKE ASSEMBLY MANUAL...

  • Page 18: Care And Maintenance

    CARE AND MAINTENANCE Friction Brake Pad System MAY CAUSE DAMAGE TO THE SHAFT THREAD. Magnetic Braking System Chain Driven Belt Driven...

  • Page 19: Maintenance Log

    MAINTENANCE LOG MECHANICAL FRAME MAINTENANCE SERVICE DATE HOURS DISTANCE COMMENTS Chain / Seat / Brake Cleaned Belt Pedals 01/06 16.5km none ELITE PELTEX SPIN BIKE ASSEMBLY MANUAL...

  • Page 20: Limited Warranty

    LIMITED WARRANTY Warranty Range Warranty Time HOME USE The following conditions are not under warranty range: The Spin bike should not be: Repair and Maintenance Service...

  • Page 21: Warm-Up Exercise

    WARM-UP EXERCISE ELITE PELTEX SPIN BIKE ASSEMBLY MANUAL...

  • Page 22: Training Stages

    TRAINING STAGES...
  • Page 23 @EliteFitnessTV @EliteFitnessNZ...
