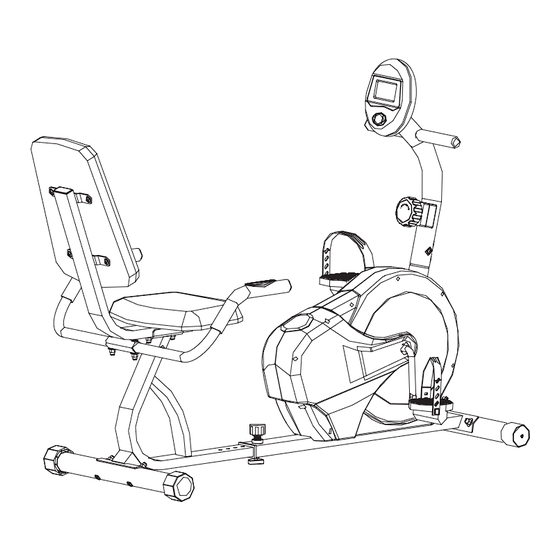

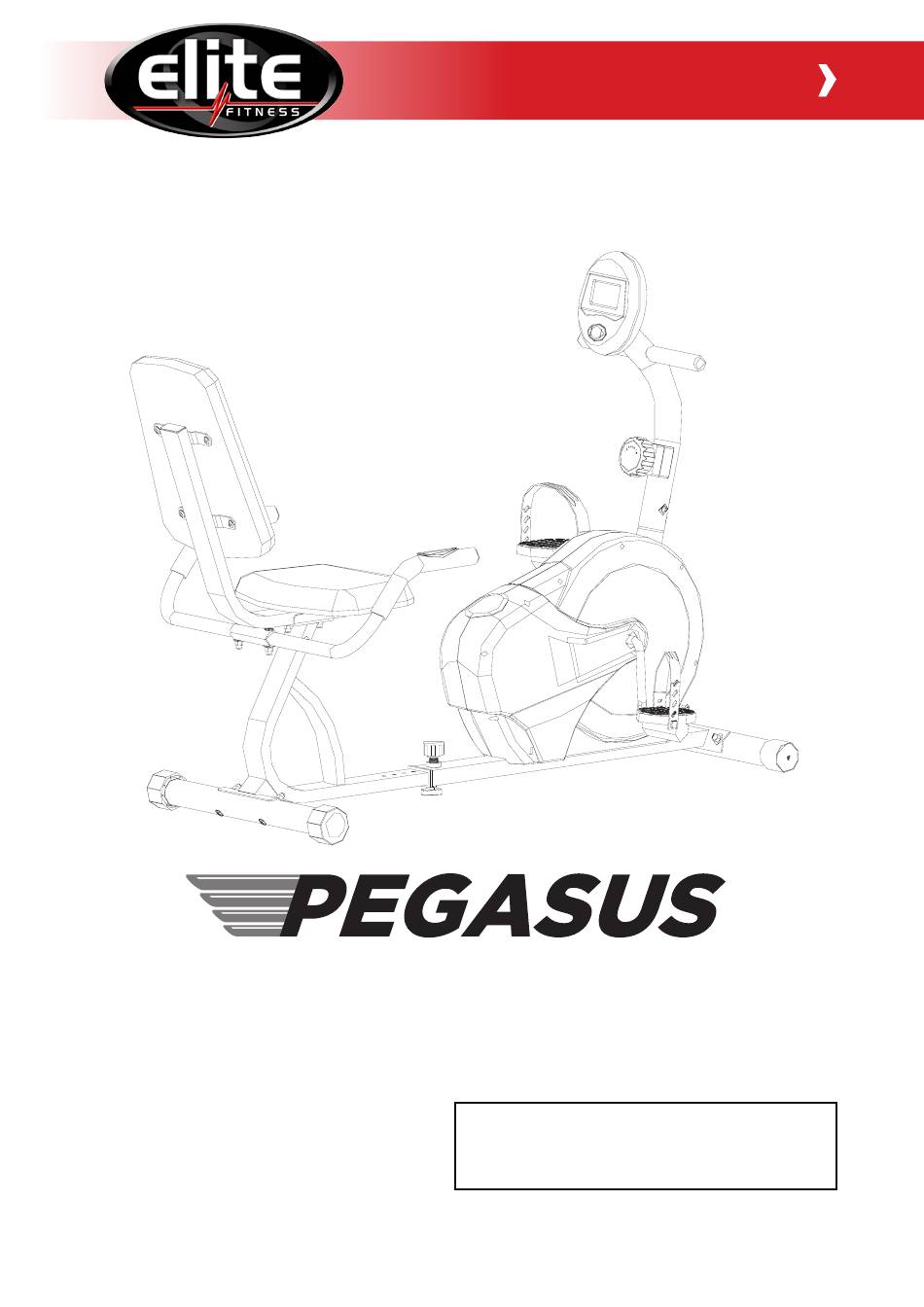

- Page 1 ASSEMBLY MANUAL Record serial number Elite Pegasus Exercycle (NS-1003R)
-
Page 2: Table Of Contents
Thank you for purchasing the Elite Pegasus Exercycle. For over 20 years, Elite Fitness™ has been New Zealand’s largest supplier of fitness equipment. Our aim and vision is to provide you Elite™ branded products, tested to the highest standard for quality and biomechanics at the best possible price. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS The following definition applied to the word “WARNING” when used in this manual: Used to call attention to POTENTIAL hazards that could result in personal injury. READ ALL INSTRUCTIONS BEFORE USING THE MACHINE This product has been designed for home use only. Product liability and warranty conditions will not be applicable to products being subjected to professional use or products being used in a commercial environment. -
Page 4: Product Specifications
WARNING: Before beginning any exercise programme, consult your physician. This is especially important for persons with pre-existing health problems. The seller assumes no responsibility for personal injury or property damage sustained by or through the use of this product. SERVICE HINTS: The high quality standard of this product only will be kept if you, on a regular basis, check all screw connections and moving parts on proper fitting. -
Page 5: Hardware List
HARDWARE LIST i f i ’ Allen Bolt M8 x 16 Curved Washer Ø8* Ø20 Carriage Bolt M8 x 60 Domed Nut M8 Leverage Knob M8 Carriage Bolt M8x40 Washer Ø8* Ø20 Allen Wrench Crossing Wrench ELITE EXERCYCLE ASSEMBLY MANUAL... -
Page 6: Assembly Conponents
ASSEMBLY COMPONENTS NO:23 NO:26 NO:1 NO:25 NO:4 NO:6 NO:5 NO:2 NO17L/R NO:14 NO:27 Tools Required For Assembling the Machine: — One Crossing Wrench and Allen Wrench, provided by manufacturer. NOTE: It is strongly recommended that two or more people assemble this machine to avoid possible injury. -
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS STEP 1 Do not tighten Bolts until instructed to do so. — Attach the Front Stabilizer (#14) to the Main Frame (#1). Secure it with 2 Carriage Bolts (#13), 2 Curved Washers (#9), and 2 Domed Nut (#19). ELITE EXERCYCLE ASSEMBLY MANUAL... - Page 8 ASSEMBLY INSTRUCTIONS STEP 2 — Before starting assembly, pull out the Quick Release Knob (#24), remove and dispose the Protection Insert. — Connect the Middle computer wire 1 (#31) from Main Frame (#1) to the Middle computer wire (#32) from the Sliding Frame (#23). —...
- Page 9 ASSEMBLY INSTRUCTIONS STEP 3 — Attach the Seat Support (#26) to the bracket on the Sliding Frame (#23). Secure them together with two Carriage Bolts (#21), two Washers (#22), and two Domed Nut (#19). — Attach the Backrest Board (#6) to the Seat Support. Secure it with four Allen Bolts (#8). —...
- Page 10 ASSEMBLY INSTRUCTIONS STEP 4 — Attach the Handle (#25) to Seat Support (#26). Secure it with two Carriage Bolts (#21), two Curved Washers (#9), and two M8 Domed Nut (#19). — Connect the Lower computer wire (#35) from the Handle to the Middle computer wire2 (#32) from the Sliding Frame.
- Page 11 ASSEMBLY INSTRUCTIONS STEP 5 Note: Extra help may be needed to hold the Front Post (#4) while connecting the computer wires, sensor wires, and tension cables. — Attach the Front Post (#4) to the Main Frame (#1). Connect the Middle computer wire 1 (#31) from Main Frame to the Upper computer wire (#30) from the bottom of Front Post.
- Page 12 ASSEMBLY INSTRUCTIONS STEP 6 — Thread the left Pedal (#17L) counterclockwise into the left Crank (#16). — Thread the Right Pedal (#17R) clockwise into the Crank on the other side.
- Page 13 CONGRATULATIONS Assembly of your Pegasus Exercycle is now complete! Be sure to fully inspect your machine before using it for the first time. WARNING: Failure to visually check and test the assembly of your exercycle before use can cause damage to the exercycle and injury. ELITE EXERCYCLE ASSEMBLY MANUAL...
-
Page 14: Seat Adjustment
SEAT ADJUSTMENT Picture 1 – Leg extended fully with heel on pedal Picture 2 – Knee bent, forefoot on pedal Seat Adjustment Ensuring you have the most comfortable riding position whilst minimising joint strain is important. Adjusting your seat is simple and can normally be done without needing to get off the bike. Place your heel on one of the bike pedals and rotate to the furthest point on the pedal stroke (as shown) You may need to remove the toe strap to do this. -
Page 15: Computer
Note: Contact Heart rate sensors are for reference only and may provide inaccurate readings as they are not medically certified devices. If you require accurate heart rate readings for the purpose of training or a medical condition, please consult your Elite Fitness Sales Professional for further advice REPLACE BATTERY: —... -
Page 16: Care And Maintenance
CARE AND MAINTENANCE IMPORTANT INFORMATION Before cleaning or carrying out any maintenance on your exercycle, ensure the power is turned off and the power cord removed from the plug socket. Prolong the life of your exercycle by performing periodic maintenance checks. Not only does this ensure your machine is in full working order to ensure they continue to run smoothly and reliably, but it will save you service costs in the long run. -
Page 17: Maintenance Log
MAINTENANCE LOG Prolong the life of your exercycle by performing periodic maintenance checks. Not only does this ensure your machine is in full working order, but it will save you service costs in the long run. Every time you perform maintenance, record the date and if you can, the distance and hours operated. -
Page 18: Limited Warranty
A) As a result of abuse, neglect, accident, or unauthorized modification; B) The damage due to incorrect adjustment of the machine. Repair and Maintenance Service Please contact our Elite Fitness Service Department at eliteservice@elitefitness.co.nz or visit www.elitefitness.co.nz for any service related issues or advice on preventative maintenance servicing procedures. -
Page 19: Warm-Up Exercise
WARM-UP EXERCISE Warm up exercise is important in preparing the muscles for activity whilst minimising the risk of injury. You may choose to warm up with a light/brisk walking pace for 5-10 minutes before stopping and performing some simple stretches. (As shown in the pictures below) —... -
Page 20: Training Stages
TRAINING STAGES Cardiovascular training plays an important part in maintaining a healthy heart and lung function, so it’s no surprise we should be paying attention to how quickly our heart beats during exercise. The chart above outlines a range of heart rate training zones determined by the individual’s age and workout goals to ensure you train safely and effectively. -
Page 21: Parts
PARTS We recommend 2 people assist in assembling this unit. Place all parts of the exercycle in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. Before you start installation, inspect and prepare all parts and screws featured in this manual. -
Page 22: Exploded Drawing
EXPLODED DRAWING ... - Page 23 For more information about our Elite exercise equipment or other brands that we stock for your home, visit www.elitefitness.co.nz Copyright © 2015 Elite Fitness Elite Fitness, 11 George Bourke Drive, Mt Wellington, Auckland, New Zealand, 0800 243 834, www.elitefitness.co.nz Keep up to date with the latest products, competitions and equipment, follow us on our social media sites.
