ASSEMBLY MANUAL
Record serial number

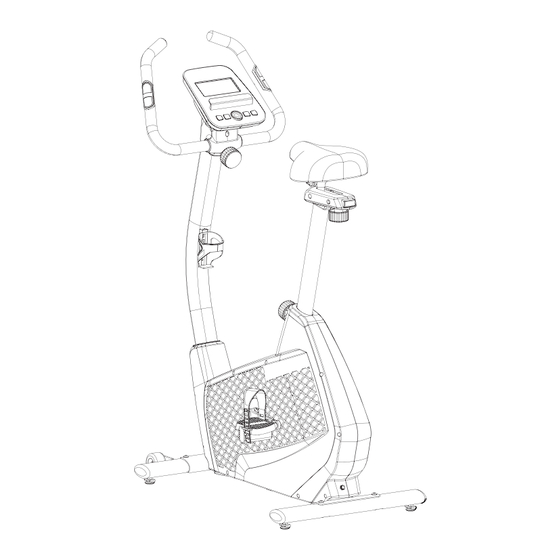

Elite Destroyer Exercycle

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Destroyer and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elite Fitness Destroyer

Summary of Contents for Elite Fitness Destroyer

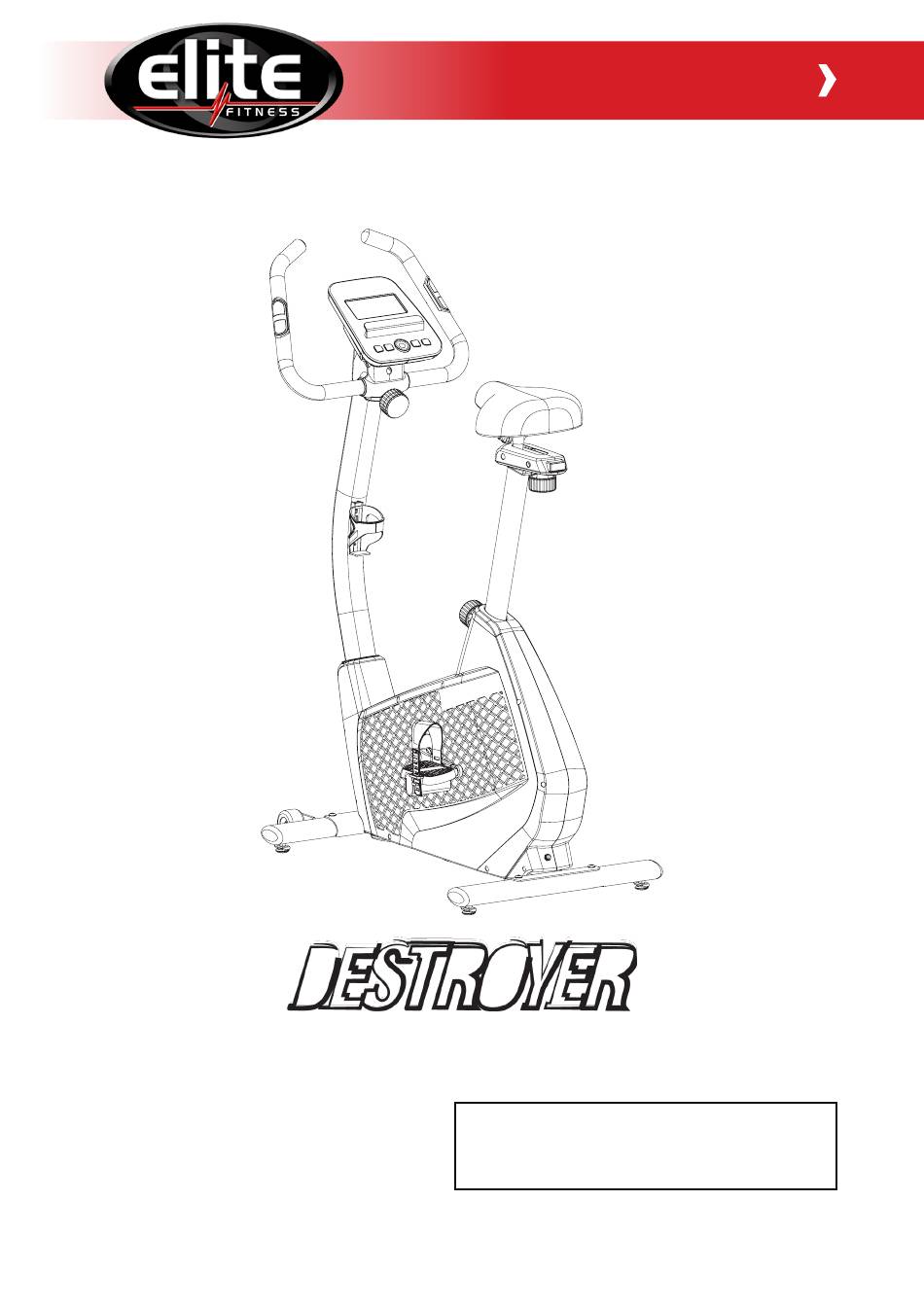

  • Page 1 ASSEMBLY MANUAL Record serial number Elite Destroyer Exercycle...

  • Page 2: Table Of Contents

    Please read through this manual to familiarise yourself with the operation of your new Elite Destroyer. Doing so will help to ensure that you get the most out of your machine, enjoying safe and effective workouts ahead.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS The following definition applied to the word “WARNING” when used in this manual: Used to call attention to POTENTIAL hazards that could result in personal injury. READ ALL INSTRUCTIONS BEFORE USING THE MACHINE This product has been designed for home use only. Product liability and warranty conditions will not be applicable to products being subjected to professional use or products being used in a commercial environment.

  • Page 4: Product Specifications

    WARNING: Before beginning any exercise programme, consult your physician. This is especially important for persons with pre-existing health problems. The seller assumes no responsibility for personal injury or property damage sustained by or through the use of this product. SERVICE HINTS: The high quality standard of this product only will be kept if you, on a regular basis, check all screw connections and moving parts on proper fitting.

  • Page 5: Hardware List

    HARDWARE LIST Part No. Description Q’ty Knob Wave washer Flat washer semi-circle washer Screw The harpoon wrench Hex spanner Socket spanner ELITE EXERCYCLE ASSEMBLY MANUAL...

  • Page 6: Assembly Conponents

    ASSEMBLY COMPONENTS Tools Required For Assembling the Machine: — One Crossing Wrench and Allen Wrench, provided by manufacturer. NOTE: It is strongly recommended that two or more people assemble this machine to avoid possible injury.
  • Page 7 Part No. Description Q’ty Part No. Description Q’ty Computer Pedal-R Computer tray Rear stabilizer Handle tube Frame Handle tube cover Front stabilizer Seat tube handlebar Seat Computer tray Bottle cage Cover ELITE EXERCYCLE ASSEMBLY MANUAL...

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Part No. Description Q’ty Part No. Description Q’ty Computer Pedal-R Computer tray Rear stabilizer Handle tube Frame Handle tube cover Front stabilizer Seat tube handlebar Seat Computer tray Bottle cage Cover...
  • Page 9 STEP 1 Do not tighten Bolts until instructed to do so. — Attach the Front Stabiliser (#99) to the Main Frame (#64). Secure it with 2 M8 Screws (#58) and 2 Semi-circle Washers (#57). — Attach the Rear Stabiliser (#56) to the Main Frame (#64). Secure it with 2 M8 Screws (#58) and 2 Semi-circle Washers (#57).
  • Page 10 ASSEMBLY INSTRUCTIONS STEP 2 — Thread the Left Pedal (#80) counterclockwise into the left Crank Arm (#79). — Thread the Right Pedal (#40) clockwise into the right Crank Arm (#39).
  • Page 11 ASSEMBLY INSTRUCTIONS STEP 3 — Insert the Seat Post (#20) into the Main Frame (#64) and secure with the Pull Pin (#18). The Pull Pin is used to adjust the height of the exercycle. Adjust to desired height. See Pic 1 —...
  • Page 12 ASSEMBLY INSTRUCTIONS STEP 4 — Connect the middle section Sensor Wire (#13) of the Front Post (#9) and Front Cover (#14) with the lower section Sensor Wire (#7) securely. Put the Front Post (#9) and front cover (#14) into the bottom post of main frame (#64) and fasten with 4 x M8 Screw (#12), 4 x Flat Washers (#57) .
  • Page 13 ASSEMBLY INSTRUCTIONS STEP 5 — Connect the Hand Rail (#63) to the Front Post (#9), ensure the Hand Pulse cables are routed through the Front Post (#9) — Attach the computer Hand pulse Wires to the Computer pulse connection. See Pic 3 and 4 —...
  • Page 14 ASSEMBLY INSTRUCTIONS STEP 6 — Secure the Plastic Cover (#4) over the Handle bar using the T-Shaped Knob (#5). — Wave Washer (#6), Flat Washer (#97) and 1 x M5 Screw. — Connect the Rear Handle Bar Cover (#78) to the back of the Computer and Front Post using 2 x Screws (#77).
  • Page 15 ASSEMBLY INSTRUCTIONS STEP 7 — Attach the Water bottle holder (#99) to the Front Post (#9) using 2 x Screws (#25). ELITE EXERCYCLE ASSEMBLY MANUAL...
  • Page 16 CONGRATULATIONS Assembly of your Elite Destroyer Exercycle is now complete! Be sure to fully inspect your machine before using it for the first time. WARNING: Failure to visually check and test the assembly of your exercycle before use can cause...
  • Page 17 SEAT ADJUSTMENT Having your bike seat adjusted to the right height is essential for a comfortable ride, efficient pedalling and avoiding injury. There are 2 adjustments located on the seat post. The first is a vertical height adjustment, the second is for horizontal seat position. Although there are many methods and opinions on the optimal saddle setting, the following is a quick and easy method to get started.

  • Page 18: User Instructions

    USER INSTRUCTIONS CONTROL MODE MANUAL / PROGRAM / WATT / PERSONAL / HRC USER DATA PULSE TIME WATTS/CALORIE RPM/SPEED DISTANCE MODE RESET RECOVERY UP & DOWN START/STOP SCAN : Alternates between WATTS/CALORIES and RPM/SPEED. 6 seconds per display. : 0 -15-999 SPEED : 0.0-99.9 km/h TIME...
  • Page 19 USER INSTRUCTIONS PRE-SET USER: Enter user data (sex / age/ height / weight) to accurately calculate workout feedback. SELECT MANUAL/PROGRAMS/ WATT CONSTANT/PERSONAL/FITNESS(OPTION)/H.R.C User can choose different control modes to start their workout. See below is main description of each control mode. EXECUTE MANUAL/PROGRAMS/ WATT CONSTANT/PERSONAL/ FITNESS(OPTION)/H.R.C Execute selected control mode.
  • Page 20 USER INSTRUCTIONS Note: 1.If the user reaches F1 level and their heart rate is not over H.R.C 100%, the computer/console stop working. 2. If user can’t reach F5 level, and their heart rate is over H.R.C 100%, the computer / console stop working.
  • Page 21 USER INSTRUCTIONS H.R.C HEART RATE CONTROL: Select your target Heart Rate, choose from one of the preset programs 55%, 75% or 90%. Please enter your age into the User Data to ensure that your target heart rate is set correctly. The PULSE display will flash when you have reached your target heart rate according to the Program you have chosen.

  • Page 22: Computer

    Note: Contact Heart rate sensors are for reference only and may provide inaccurate readings as they are not medically certified devices. If you require accurate heart rate readings for the purpose of training or a medical condition, please consult your Elite Fitness Sales Professional for further advice Please note all values on this computer are approximate and they are for comparison purpose only.
  • Page 23 Main Menu. Now you will be at the From the MAIN MENU press the DOWN and UP Keys to scroll through and select one of the 5 x Main Menu selections. (NB: If you press the START Key now you will automatically start the MANUAL PROGRAM regardless of your Main Menu selection).
  • Page 24 User Profile Programs The computer will automatically adjust the LOAD resistance levels according to the USER PROFILE PROGRAM you design. All four users have their own USER PROFILE PROGRAM which can only be accessed through the User Select process. During your workout if you adjust the LOAD resistance levels by pressing the DOWN and UP Keys.
  • Page 25 55% 75% 90% Heart Rate Programs The % Heart Rate Programs are designed to keep your heart rate/ pulse at the constant level you have selected. Every 30 x seconds the computer will check your heart rate/ pulse against what you have selected and will automatically adjust the LOAD reistance levels accordingly.

  • Page 26: Care And Maintenance

    CARE AND MAINTENANCE IMPORTANT INFORMATION Before cleaning or carrying out any maintenance on your exercycle, ensure the power is turned off and the power cord removed from the plug socket. Prolong the life of your exercycle by performing periodic maintenance checks. Not only does this ensure your machine is in full working order to ensure they continue to run smoothly and reliably, but it will save you service costs in the long run.

  • Page 27: Maintenance Log

    MAINTENANCE LOG Prolong the life of your exercycle by performing periodic maintenance checks. Not only does this ensure your machine is in full working order, but it will save you service costs in the long run. Every time you perform maintenance, record the date and if you can, the distance and hours operated.

  • Page 28: Limited Warranty

    A) As a result of abuse, neglect, accident, or unauthorized modification; B) The damage due to incorrect adjustment of the machine; Repair and Maintenance Service Please contact our Elite Fitness Service Department at eliteservice@elitefitness.co.nz or visit www.elitefitness.co.nz for any service related issues or advice on preventative maintenance servicing procedures.

  • Page 29: Warm-Up Exercise

    WARM-UP EXERCISE Warm up exercise is important in preparing the muscles for activity whilst minimising the risk of injury. You may choose to warm up with a light/brisk walking pace for 5-10 minutes before stopping and performing some simple stretches. (As shown in the pictures below) —...

  • Page 30: Training Stages

    TRAINING STAGES Cardiovascular training plays an important part in maintaining a healthy heart and lung function, so it’s no surprise we should be paying attention to how quickly our heart beats during exercise. The chart above outlines a range of heart rate training zones determined by the individual’s age and workout goals to ensure you train safely and effectively.

  • Page 31: Parts

    PARTS We recommend 2 people assist in assembling this unit. Place all parts of the exercycle in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. Before you start installation, inspect and prepare all parts and screws featured in this manual.
  • Page 32 PARTS PART PART DESCRIPTION Q’TY DESCRIPTION Q’TY Screw Q235 M6*P1.0*60L Nylon nut φ6.5*φ19*1.5T Bearing 6000 Flat washer ф8*ф19*2T Spring Bearing 6300 Magnet set Bearing Screw M8*55L Flat washer ф30*ф34*0.8T Cable U-seat Screw ST3.5*20L Screw ST3.5*50L Handle pulse The harpoon wrench End cap Hex spanner Screw M5*16L...

  • Page 33: Exploded Drawing

    EXPLODED DRAWING ELITE EXERCYCLE ASSEMBLY MANUAL...
  • Page 34 EXPLODED DRAWING...

  • Page 35: Notes

    NOTES ELITE EXERCYCLE ASSEMBLY MANUAL...
  • Page 36 For more information about our Elite exercise equipment or other brands that we stock for your home, visit www.elitefitness.co.nz Copyright © 2018 Elite Fitness Elite Fitness, 11 George Bourke Drive, Mt Wellington, Auckland, New Zealand. 0800 243 834, www.elitefitness.co.nz Keep up to date with the latest products, competitions and equipment, follow us on our social media sites.
