Summary of Contents for Elite Fitness DELTA SL BGR118

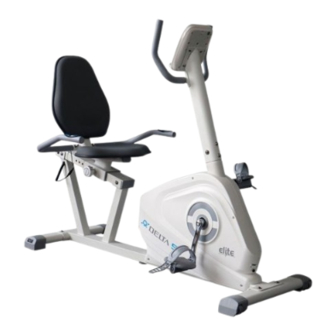

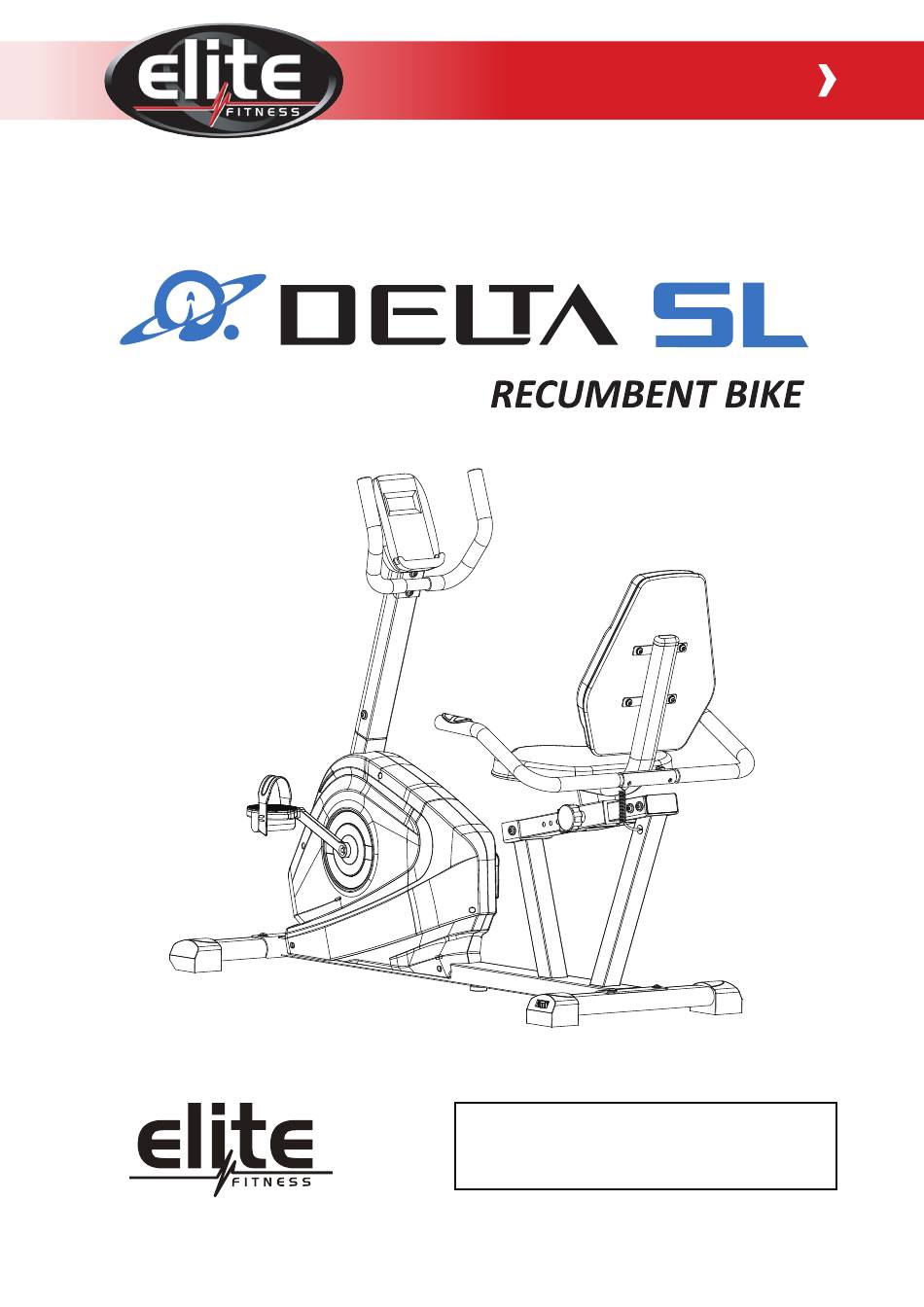

- Page 1 ASSEMBLY MANUAL Record serial number Elite DELTA SL Recumbent Bike...
-
Page 2: Table Of Contents
Thank you for purchasing the Elite Delta SL Recumbent Bike. Elite Delta SL. SERVICE & WARRANTY For service and warranty assistance please visit: (09) 258 9067 Elite Fitness HQ 28 Morrin Road St Johns Auckland, New Zealand 0800 2 438 348... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THE MACHINE This product has been designed for home use only. not be applicable to products being subjected to professional use or products being used in a — — — — — —... -
Page 4: Product Specifications
PRODUCT SPECIFICATIONS User Weight Capacity: 120 kg Shipping Weight: 36 kg Net Weight: 32.5 kg... -
Page 5: Parts List
PARTS LIST NAME NAME SPECIFICATION SPECIFICATION Main frame Magnet board Front stabiliser Tension spring 1.0× 15×55L Rear stabiliser Axle of rotation 12×67 saddle adjusting tube Circlip Saddle Screw M6×20L Back cushion Flywheel axle 20×107L Front post Bearing seat Front handle bar Bearing 6001ZZ Bearing end cover... -
Page 6: Hardware Package
PARTS LIST Pinch roller fixing plate Front handle bar foam Hex nut Rear handle bar foam Fixing plate screw M10×1.5×42L Oval tube plug PT30×60 37× Pinch roller Adapter 30×22.4L 14× Idler Shaft Bushing Flywheel retainer 10.2×6L 10.2× Flat washer Screw 20×1.5t Fixing plate screw M10×1.5×20L... - Page 7 ASSEMBLY INSTRUCTIONS STEP 1 Remove all the screws (54) and flat washers (55) from the front stabiliser (2) and the rear stabiliser (3) using the Allen key, and store them securely. A�ach the front stabiliser (2), which has a transport wheel, to the main frame (1) and �ghten it securely with the wrench using the retained hardware.
- Page 8 ASSEMBLY INSTRUCTIONS STEP 2 Securely a�ach the le� pedal (11L), indicated with "L," to the le� side of the crank (74), also marked with "L," using a spanner in an an�clockwise direc�on. Then, fasten the right pedal (11R), labelled "R" onto the right side of the crank (75), marked with "R,"...
- Page 9 ASSEMBLY INSTRUCTIONS STEP 3 Loosen all the screws (63) and flat washers (55) on the saddle adjus�ng tube (4) using the wrench, and ensure they are safely stored. Secure the saddle adjus�ng tube (4) onto the main frame (1) using the screws (63) and flat washers. ELITE DELTA SL RECUMBENT BIKE ASSEMBLY MANUAL...
- Page 10 ASSEMBLY INSTRUCTIONS STEP 4 A�ach the saddle (5) and back cushion (6) to the saddle support set (57) using screws (63) and flat washers (55), as indicated separately, and securely �ghten them with a wrench.
- Page 11 ASSEMBLY INSTRUCTIONS STEP 5 Securely a�ach the rear handlebar (67) to the saddle support set (57) using the screw (58), curved washer (66), and cap nut (56), and �ghten them with a wrench. Next, ensure the pulse sensor wires (16&19) are correctly connected together. ELITE DELTA SL RECUMBENT BIKE ASSEMBLY MANUAL...
- Page 12 ASSEMBLY INSTRUCTIONS STEP 6 Carefully connect the console wires (14&15) together. Ensure the sensor wires (16&17) are connected correctly. Straighten all pins before connec�ng wires 14 & 15 and 16 & 17 to prevent console malfunc�on. Then, place the front post (7) onto the main frame (1) as illustrated and securely �ghten it with the screw (63), flat washer (55), and curved washer (66) using a wrench.
- Page 13 ASSEMBLY INSTRUCTIONS STEP 7 A�ach the handlebar (8) to the front post (7) securely using a flat washer (55) and screw (63), ensuring a �ght fit. Connect the console wire (14) and pulse sensor wire (17) together with the wire on the console (9) correctly.
- Page 14 ASSEMBLY INSTRUCTIONS CONGRATULATIONS Assembly of your Elite Delta SL Recumbent Bike Failure to visually check and test the assembly of your exercycle before use can cause damage to the exercycle, serious injury to users and bystanders and can also compromise the effec�veness of you exercise program.
-
Page 15: Exploded Drawing
EXPLODED DRAWING ELITE DELTA SL RECUMBENT BIKE ASSEMBLY MANUAL... - Page 16 EXPLODED DRAWING...
-
Page 17: Display Console
DISPLAY CONSOLE Functional Buttons: START/STOP: Ini�ates and pauses workouts.Begins body fat measurement. Only operates in stop mode. Holding the key for 3 seconds resets all func�on values to zero. DOWN: Decreases the value of the selected workout parameter: TIME, DISTANCE, etc. During the workout, it reduces the resistance load. - Page 18 DISPLAY CONSOLE Wa� Control Program (P10): Select "Wa� Control Program" using the UP or DOWN key, then press ENTER. Follow the same parameter se�ng process as in the Manual program. The computer will automa�cally adjust the resistance load based on speed to maintain a constant wa� value. During the workout, the user can adjust the wa�...
-
Page 19: Se�Ng Your Bike Up
SETTING YOUR BIKE UP Saddle Height Adjustment Seat Adjustment Place your heel on one of the bike pedals and rotate to the furthest point on the pedal stroke (as experience the feeling of reaching for the pedal or sliding down the seat, you may need to make a ELITE DELTA SL RECUMBENT BIKE ASSEMBLY MANUAL... - Page 20 SETTING YOUR BIKE UP — — — —...
-
Page 21: Care And Maintenance
CARE AND MAINTENANCE IMPORTANT INFORMATION Cleaning and prevent unnecessary corrosion stains and damage to the structural components from sweat Please ensure all sweat residue is wiped from any contact points or framework with a damp cloth using a suitable PH neutral detergent in water to avoid salt and corrosion deposits on your Frame and Pedals ELITE DELTA SL RECUMBENT BIKE ASSEMBLY MANUAL... -
Page 22: Maintenance Log
MAINTENANCE LOG SERVICE DATE HOURS DISTANCE COMMENTS 01/06 16.5km none... -
Page 23: Limited Warranty
— — The following conditions are not under warranty range: The damage due to incorrect adjustment of the machine; Repair and Maintenance Service Please contact our Elite Fitness Service Department at or visit ELITE DELTA SL RECUMBENT BIKE ASSEMBLY MANUAL... -
Page 24: Warm-Up Exercise
WARM-UP EXERCISE — Keep your knees slightly bent and slowly lean forward, back and shoulders relaxed, reaching — — Keeping your legs straight and the heel on the ground, lean — —... -
Page 25: Training Stages
TRAINING STAGES Note: Contact heart rate may provide inaccurate readings and is designed only as a guide ELITE DELTA SL RECUMBENT BIKE ASSEMBLY MANUAL... -
Page 26: Notes
NOTES... - Page 27 @EliteFitnessNZ @EliteFitnessTV...
